emergency time >90minutes cul ul led battery backup 25 watt okt

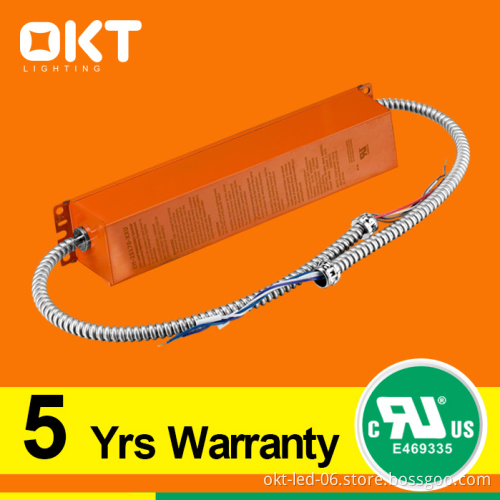

emergency time >90minutes ul led battery backup 25 watt okt Product Description     Description The OKT led driver power supply is UL,CUL Listed that be used for both normal and emergency operation.the led driver power supply switches to the emergency mode and operates for 90 minutes after blackout which including a battery,charger and converter circuit in a single can. It is available in different mounting configurations for individual fixture requirements.   Specification led driver power supply for led product with external driver:

Model	Output Power	Max.Connected Load	Input Voltage	Emergency Time	Output Voltage
EL-0848-XX    led driver power supply	8W (max)	0.5 A	100-277VAC/ 120-250V	>90 Minutes	12-48V DC
EL-1248-XX   emergency led driver	12W (max)	0.75A	100-277VAC/ 120-250V	>90 Minutes	12-48V DC
EL-2548-XX   emergency led driver	25W (max)	1.38 A	100-277VAC/ 120-250V	>90 Minutes	12-48V DC

led driver power supply for led product with inernal driver:

Model	Output Power	Input Power	Input Voltage	Emergency Time	Output Voltage
EH-18170-XX led driver power supply	18W (max)	6W	100-277VAC/ 120-250V	>90 Minutes	170V DC
EH-25170-XX led driver power supply	25W (max)	6W	100-277VAC/ 120-250V	>90 Minutes	170V DC

  Advantages Dial the code to suitable voltage of luminaire Includes test switch and charge indicator accessory for use with switched or non switched fixtures UL and CUL Listed   Form for dial the code to suitable rated voltage of luminaire     Size

Model	8W	12W	18W	25W
A	55.4MM	55.4MM	69MM	69MM
B	55MM	55MM	71MM	71MM
C	264.6MM	264.6MM	377MM	377MM
D	69MM	55.4MM	69MM	69MM
E	22.2MM	22.2MM	222MM	22.2MM

  How to install   Typical Wiring Diagram for 25W emergency led driver  with internal led product   Typical Wiring Diagram for 25W LED emergency back up driver with external led product   PLS CONTACT SALES FOR MORE DETAILS ABOUT THIS  led driver power supply!
