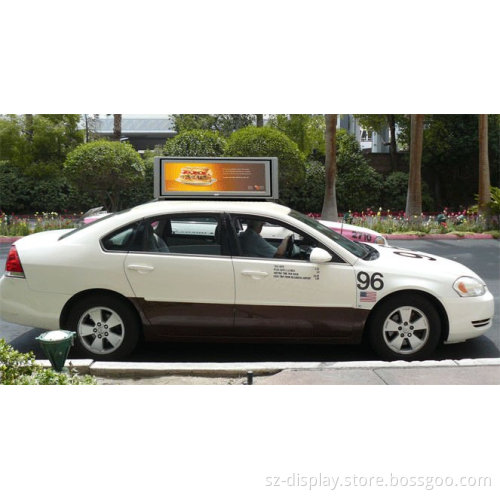

popular 5 & 6mm pixel pitch bus taxi top LED Display

P5 Outdoor Taxi Top LED Display I. Module Technical Parameter

No.	item	Specification parameter
1	Configuration	SMD RGB 3 IN 1
2	Pixel size	2.7mm x 2.7mm
3	Pixel pitch	5mm
4	Resolution(module)	64x 64
5	Wavelength	R:620~625nm,G:525~527.5nm,B: 462.5~465nm
6	Density	40000/m2
7	Brightness	5000nit, @White Color
8	Gray scale grade	65536
9	Drive mode	1/8 scan,constant current drive
10	Refresh rate	>960Hz
11	View angle	X>120°,Y>120°
12	View distance	8~70m
13	Brightness adjusting level	Level 64
14	Brightness adjusting method	Current control chip or PWM
15	Control system	PC+control card+DVI graphic card+fiber optics transmission or RJ45+DVI/HDMI
16	Multimedia video processor	Support varied data formats
17	Working voltage	5V
18	Consumption	Ave:100W
19	Lifespan	>50,000 hrs
20	Material	PC
21	Operation temperature	-40℃~+75℃, RH=40~90%
22	IP rating(Front/Rear)	IP65

II Cabinet Fetures III.P5 Outdoor Module Specification(320×320mm)     Why choose LCF LED? Shenzhen LCF group was found at 2004, with 60 million registered capital and nearly 500 staff. It is situated in Shenzhen with 30, 000 square meter production area, which is next to Bao`an international airport. LCF group is specialized in LED full color screens and LED lighting, and it is one of the advanced high-tech enterprises of LED filed in China.  LCF group has been focusing on the researching and developing LED technology, production, sales and overall service of LED full color screens, and it engaged in providing comprehensive LED screen solutions to our customers. Our product is popular in more than 110 countries which located in Asia, EUO, North America, South-Africa etc. At the same time, we own over 30 direct-sales and service agents in domestic market; moreover, we also set up some authorization service agents in many countries and locations.   Products Advantages 1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!
