p3 rgb full color display module Leeman p16 outdoor full color led display 160x160mm led display module

Get Latest Price

Payment Type:: L/C, T/T, Western Union, MoneyGram, Paypal, Credit Car

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)
Supply Ability:	10000 Piece/Pieces per Month
Payment Type:	L/C,T/T,Western Union,MoneyGram,Paypal, Credit Car

Product Description

Specifications 1. High brightness

2. High resolution

3. CE ROHS ETL SGS SAA Fcc UL

4. Low power consumption

5. Good Service

Thin and Light-Weight Panels, Crystal Clear Pictures, Ideal for Renting out for Stage Performances

Each Leeman Indoor SMD Series panel is 480mm * 480mm, and at its thinnest point is only 15mm in thickness. Each P2.5, P3, P4, P5, P6, P7.62, and P10 panel weighs between 9 to 9.5 Kg. With simple assembly/disassembly and compact packaging, it is extremely easy to transport, and saves time and labor.

With a 65,536 grayscale level (16-bit color), high refresh rate and ultra-high contrast in image quality, Outdoor SMD Series panels deliver crystal clear images and are perfect to display high-definition images and videos for stage performances and television studios.

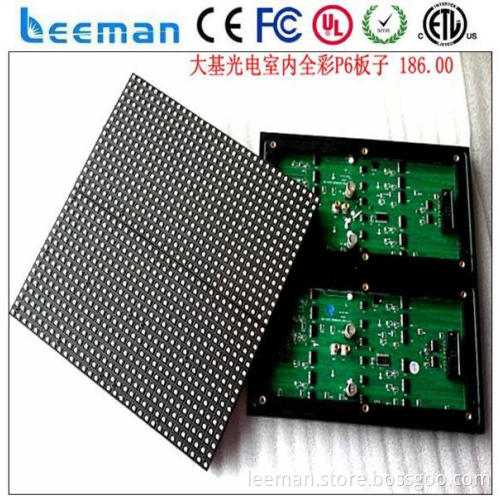

P6 uses SMD3528 black lights to enhance contrast grade. The application of soft masks ensures a greater flatness of the screen and a seamless patching between cabinets.

P10 panels, IP rated at IP65/54, is suitable for indoor and outdoor applications and adaptable for fixed or rental installations.

Different Pixel Pitches but Same Panel Dimensions Create Innovative Visual Effects

Pixel pitches for P2.5, P3, P4, P5, P6, P7.62 and P10 panels are 2.5mm, 3mm, 4mm, 5mm, 6mm, 7.72mm and 10mm respectively. The three products have the same dimensions, which allows a single display screen to have a seamless mosaic of different pixel pitches, providing a creative and innovative solution to meet all types of display needs.

Die-cast Aluminum Casing, Flat Panels and Special Connector Design Helps Create a Seamless Image Mosaic

The die-cast aluminum casing is created with high-precision machining, ensuring complete panel flatness.

With a special connector design it is easy to reduce gaps while installing, creating a perfect display.

Original Noise-Free Design and Low Power Consumption

The use of a high-quality aluminum alloy with a fanless thermal design solves the heating problem, reduces noise and power consumption, and minimizes panel weight for easy installation

EMC, UL and ETL Certifications Ensure High Quality

The thin and light-weight A-Series products are EMC, UL and ETL certified to ensure that they meet the quality requirements of most countries.

Parameters	Value	Unit
Pixel pitch	5	mm
Brightness	2000	nit
Panel dimensions(W×H×D)	480×480×80	mm
Panel dimensions(W×H×D)	18.9×18.9×3.15	Inch
Panel materail	Aluminum-alloy
Weight	8	kg
Weight	20	lbs
Pixel configuration	Black face SMD 3in1
Module dimensions (W×H)	160×160	mm
Module dimensions (W×H)	6.3×6.3	Inch
Pixel matrix per panel	32×32	pixels
Pixel density	40000	pixels/sq.m.
Refresh rate	≥3000	Hz
Gray scale per color	65536	level
Colors	281 Trillion	Billion
Viewing angle(H/V)	180/140	deg.
IP rating(Front/Rear)	IP40/IP21
Power consumption(max/avg)	720/240	W/sq.m.
Input voltage(AC)	110~240	V
Operating temperature	-40 ~65	°C
Operating humidity	10%~90%
Source compatibility(with video processor)	AV,S-Videom,VGI,DVI,HDMI,SDI,DP

Leeman Project Case For Study
