7 segment led clock display industrial led countdown timer led time display

Specifications led clock time data temperature sign

Outdoor waterproof IP65

CE ROHS ETL SGS SAA Fcc UL

Guarantee 5 years

AC110V-AC240V

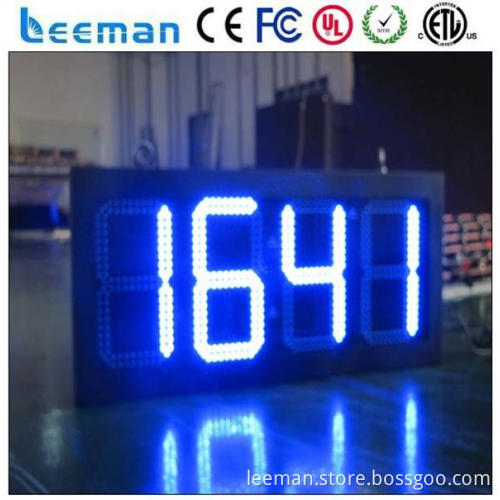

Leeman Outdoor led clock /time/date /temperature/Countdown/Timer/Count up The led time temperature sign has the following technical features: Control system: Poosled Time and Temperature system Indoor or outdoor brightness available. Display format: 88:88 or 88:88:88 or customized Time display: Year(Y), Date (D),Time (T) Temperature display: Celsius (C), Fahrenheit (F) Set the time for turn ON/OFF display freely Set brightness on/off/level freely Different sizes and colors are available that fit your flexible needs and wants. A finished cabinet makes installation trouble-free with no additional fabrication needed. Customized face designs. High intensity LEDs allow for us to manufacture a more efficient display. Automatic nighttime dimming capability with built-in light sensor GPS module for time adjusting (optional) led time temperature sign Typical Applications: Transportation message: Airport, Train Station, Port, Express Way, Street Public message:
Hospital, School, Park, Market, Store, Hotel, Restaurant, Gas station, etc. Bulletin board: Factory, Bank, Post offices, Court, Customs, Government, etc. Equipment status display Advertising & entertainment

Item	Technical Parameters
Color	Red, amber, green, blue or white
Digit height	4'',6", 8", 10", 12", 16", 24",32'',36", 40", 48", 60",64'', 72" etc.
Digit design	4'',6", 8",10'', 12",15'',18",20'',22'',24'' standard digit;
Brightness control	Auto-dimming by sensor
Display Dimming	Over 16 levels of automatic intensity adjustment
Viewing Angle	60~120°
Service Access	Front or rear access
Master/Slave	Single/Double/Three sides
Casing Material	Aluminium Frame , Iron Cabinet
Waterproof Level	IP53(Indoor use)
	IP65(outdoor use)
Temperature sensor	Our standard product is defaulted with economical temperature sensor;
	All-weather temperature sensor is available for more exact request.
LED Driving mode	Static constant current
Power Input	110/220VAC , 60Hz/50Hz
PC Communication	RS232
	LAN(TCP/IP)
Communication Distance	Max.15meters for RS232, 1200meters for RS422
Remote control type	RF remote control (Standard)
	(RF wireless remote control with communication range of 100m.)
Lifetime of LEDs	> 100,000 Hours
Installation method	Hanging, mounting or per custom design
Working Temperature	Outdoor: -40°C to +50°C; Humidity: 10%-80%RH

  Optional:
Format: 88.888  8.888   88.88   888.8   8.889   8.889/10  888   88   88:8(C)  88:8(F) Control system: RS232 interface, RF/LCD wireless controller
Color: Red, Blue, Green, Yellow, White
