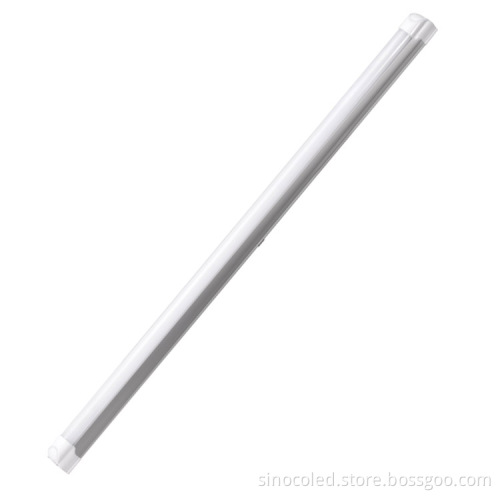

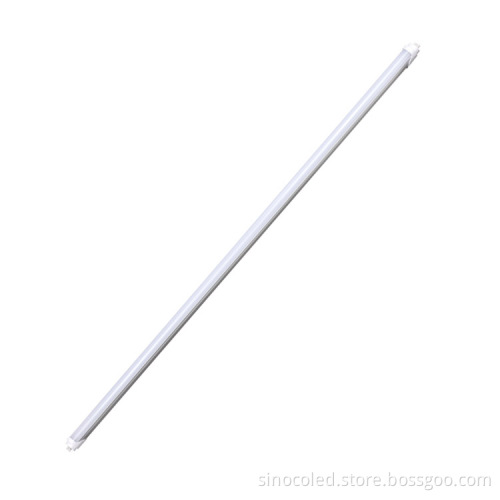

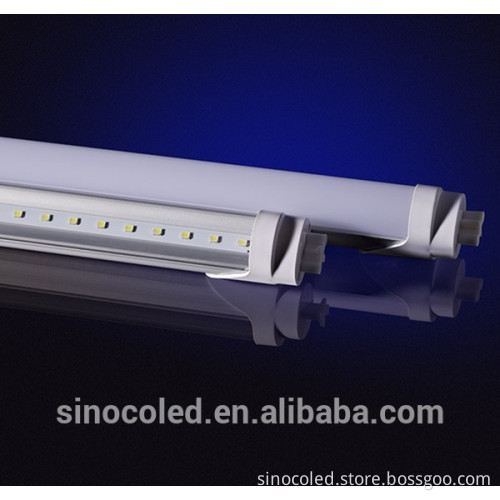

High-Efficiency G13 LED Tubular Lamp 110lm/W 40W 2.4m T8 Retrofit

High-Efficiency G13 LED Tubular Lamp 110lm/W 40W 2.4m T8 Retrofit

$20.00 - $21.50/piece

Min. Order:: 25 piece

Min. Order:: 25 piece

Port:: Shenzhen or Hongkong Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	30000 Piece/Pieces per Month 3~5 working days for sample order
Payment Type:	L/C,T/T,Western Union,Cash
Port:	Shenzhen or Hongkong Port

Product Description

Fluorescent Tube Retrofit G13 110lm/W 40W 2.4m T8 LED Tubular Lamp

Fluorescent Tube Retrofit G13 110lm/W 40W 2.4m T8 LED Tubular Lamp

Technical Specification:

Technical Specification:

1) Physical Specifications of Sinoco T8 LED Tube Light:

Length	600mm	1200mm	1500mm	2400mm
Weight	220g	440g	650g	1200g
Housing	Aluminum Base+PC Cover
Lens	Milky/Clear
Tube Diameter	36/30/26mm (T12/T10/T8)
Base Type	G13/Rotatable
Work Environment	Indoor use (applicable for dry environment)

2) Electrical Specifications of Sinoco T8 LED Tube Light:

	600mm	1200mm	1500mm	2400mm
LED Quantity	48 LEDs	96 LEDs	110 LEDs	200 LEDs
Power Consumption	8±1W	18±1W	22±1W	40±1W
Input Voltage	12VDC, 85~130VAC or 180-260VAC
Driver	Internal isolated driver
Power Factor	>0.95
Light Source	Epistar chips SMD2835
Operation Temperature	-20~40 °C

3) Optical Specifications of Sinoco T8 LED Tube Light:

		600mm	1200mm	1500mm	2400mm
Power Consumption		8W	18W	22W	40W
Lumens	Clear	880±10%lm	1980±10%lm	2320±10%lm	4400±10%lm
Lumens	Milky	800±10%lm	1800±10%lm	2200±10%lm	4000±10%lm
Luminous Efficiency	Clear	110lm/w	110lm/w	110lm/w	110lm/w
Luminous Efficiency	Milky	100lm/w	100lm/w	100lm/w	100lm/w
Color Temperature	Warm White: 2800K-3200K
	Natural White: 3900K-4300K
	Cool White: 5700K-6200K
CRI	>80
Beam Angle	120 Degree

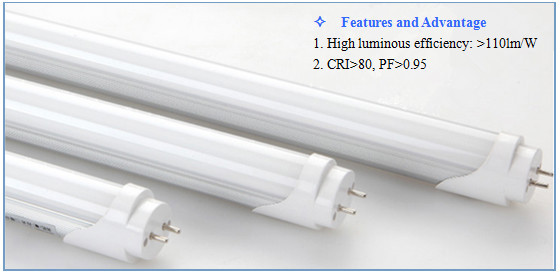

Features and Advantages:

Features and Advantages:

v Single end power to anti electric shock, comply with international safty standard.

v Wide input voltage: AC100-277V.

v High quality driver with long lifespan and low internal resistance.

v Epistar 2835SMD with high luminous efficiency: >110lm/W.

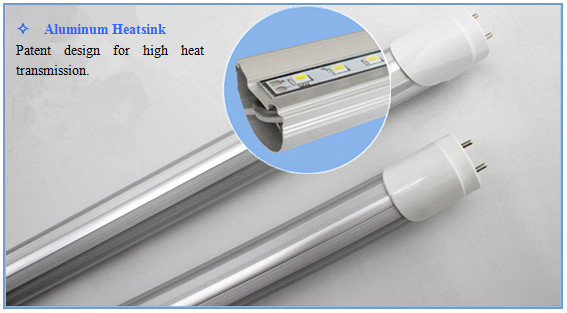

v Aluminum heatsink with good heat dissipation.

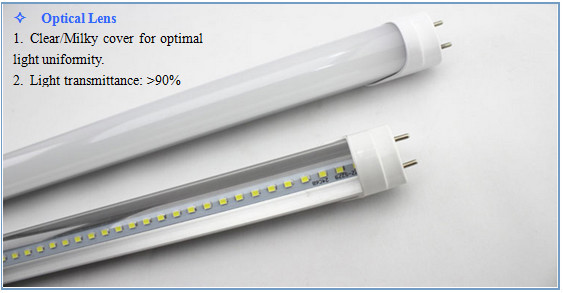

v Milky and Clear cover for optimum light uniformity and high light transmittance >87%.

v Over power, short and open circuit protected.

v No noise, No flicker, No UV and No IR.

v Mercury-free and RoHS complaint.

v Comply with DLC CE RoHS FCC PSE standards.

Detailed Product Show:

Detailed Product Show:

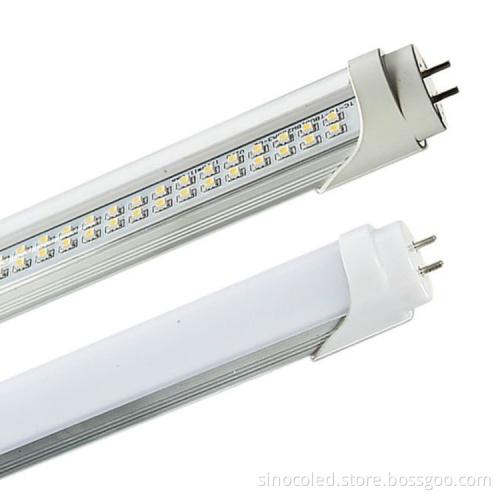

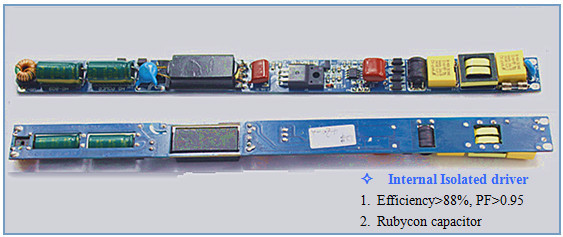

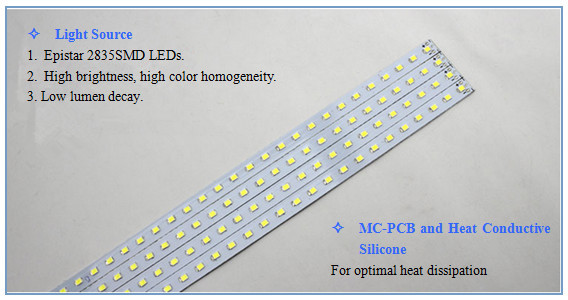

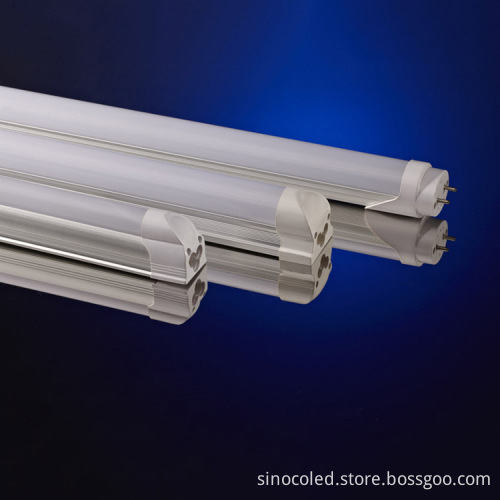

1) Details of Sinoco T8 LED Tube Light:

Fluorescent Tube Retrofit G13 110lm/W 40W 2.4m T8 LED Tubular Lamp

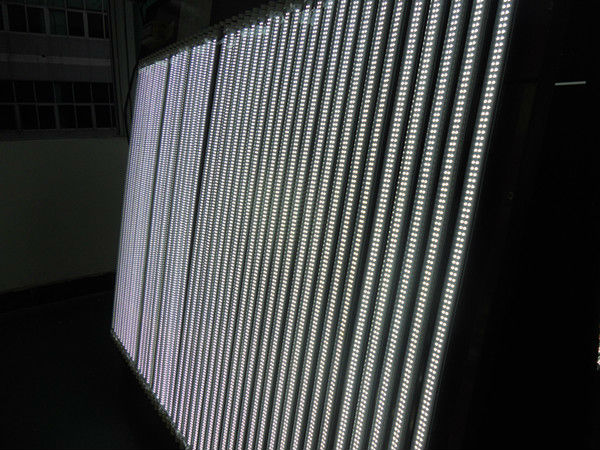

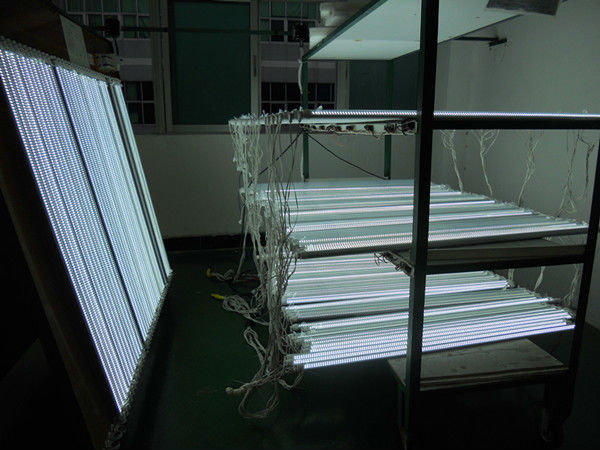

2) Aging Test of Sinoco T8 LED Tube Light:

Fluorescent Tube Retrofit G13 110lm/W 40W 2.4m T8 LED Tubular Lamp

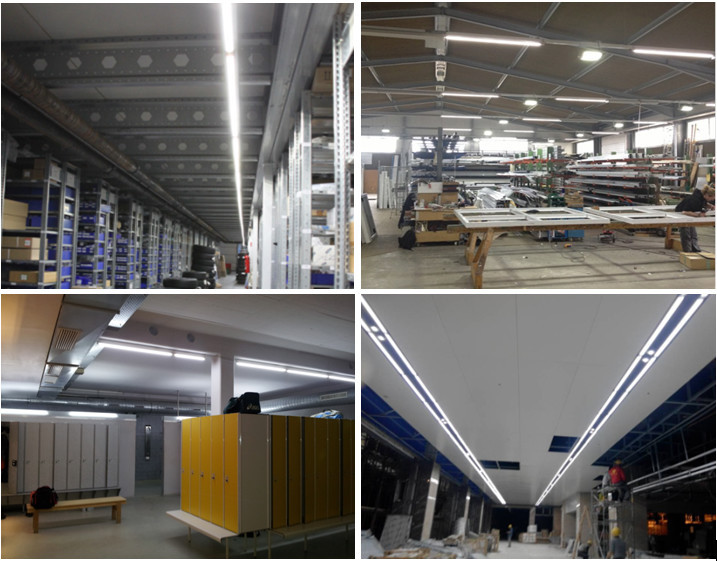

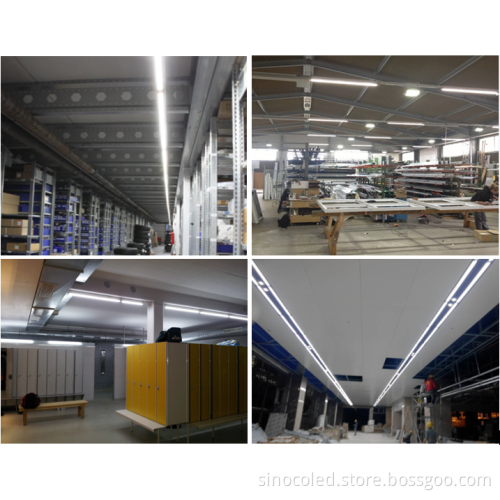

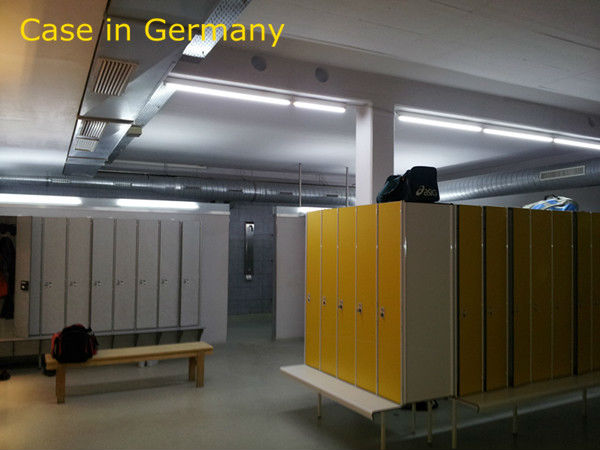

Application:

Application:

1.Commercial Lighting, Restaurants & Hotels, Shopping malls

2.Office Lighting, Retail & Grocery Stores, Showrooms, Airports

3.Warehouse Lighting, Galleries, Hospitals, Warehouses

4.Super market Lighting, institution buildings.

Fluorescent Tube Retrofit G13 110lm/W 40W 2.4m T8 LED Tubular Lamp

Certificates:

Certificates:

Fluorescent Tube Retrofit G13 110lm/W 40W 2.4m T8 LED Tubular Lamp

Trade Terms

Trade Terms

1. Payment:T/T or Western Union in advance or 30% deposit, 70% before shippment(for big order); or L/C at sight.

2. Delivery time: 100-500pieces:15days; 500-1000pieces: 25days.

3. Samples can be delivered in 7 working days.

4. Freight are quoted under your requests.

5. Shipping Port: shenzhen, China(Mainland).

6. Discounts are offered depend on quantities

Shipment

Shipment

1. We provide express ways( DHL, UPS, FEDEX, TNT, etc) or by sea, or by air, all ways are available.

2. For the freight, you can choose ship from our factory directly or use your own forwarder, both are OK.

3. We will choose cheap and good service shipping company for you.

4. Please tell us your exact shipping address and contact telephone before we arrange the products shipment.

Fluorescent Tube Retrofit G13 110lm/W 40W 2.4m T8 LED Tubular Lamp

Warranty and Maintenance

Warranty and Maintenance

1.Warranty: 3 years, since the date of purchase.

2.Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period,

we will provide free new products based on the proof-documents.

3.If failure or damage due to incorrect operation, wire connection, or anything other do not follow

our instuction.We will provide paid maintance within warranty period.

Our Service

Our Service

1.Your inquiry related to our products or prices will be replied in 24hours.

2.Well-trained and experienced staffs to answer all your enquires in fluent English.

3.OEM & ODM, any your customized lighings we can help you to design and put into product.

4.Distributers are offered for your unique design and some our current models.

5.Protection of your sales area, ideas of design and all your private information.

About us

About us

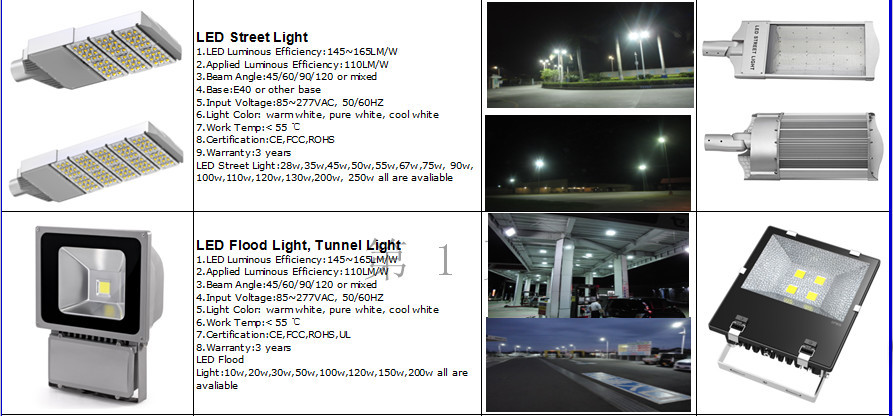

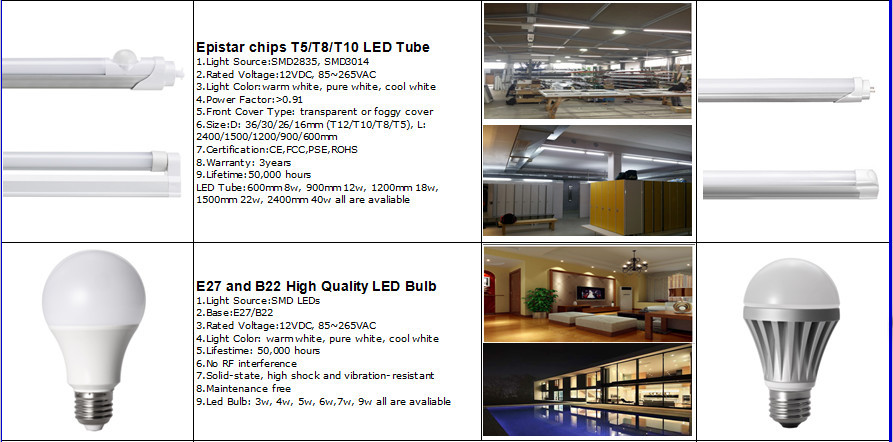

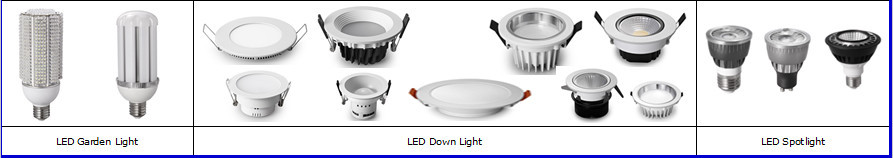

Shenzhen Sinoco Lighting Technologies Co.,Ltd is located in Shenzhen, China. Our main products are LED street light, LED high bay light, LED flood/tunnel light, LED garden light, LED tube, LED bulb etc, with PSE CE RoHS certificates, for both indoor and outdoor use. Our business partners include BP, Shell, Coop, PEMEX ect.
