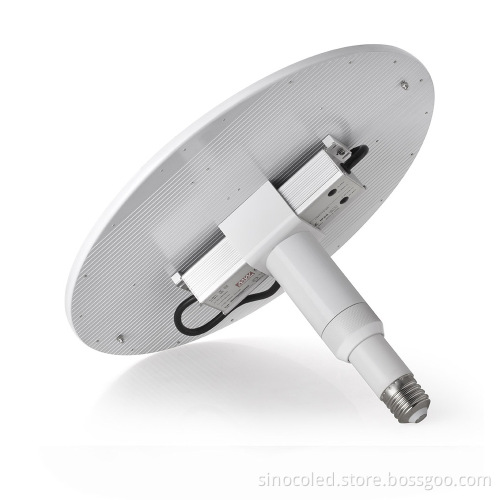

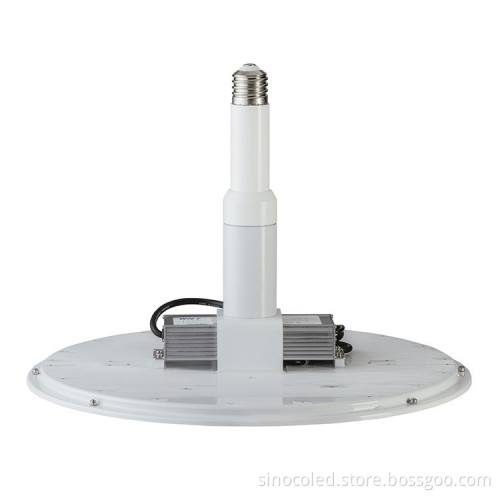

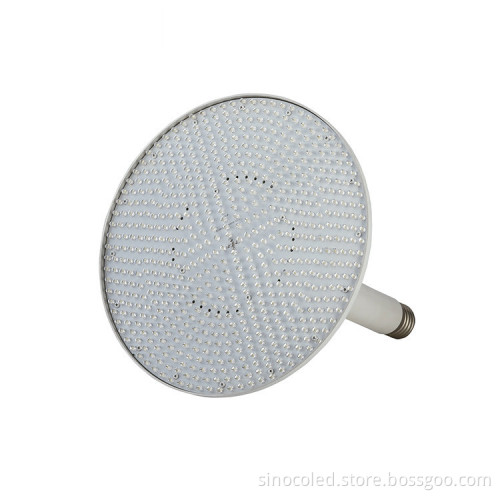

SINOCO 120W E40 LED High Bay Parts with Meanwell Driver

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

SINOCO DIP 180~240 lm/W Meanwell driver E40 led high bay light parts 120 watt CE/SAA/ROHS

LED high bay lamp,led warehouse lights, led factory light, led workship lighting. led high bay light(equal to 400w metal halide) ,

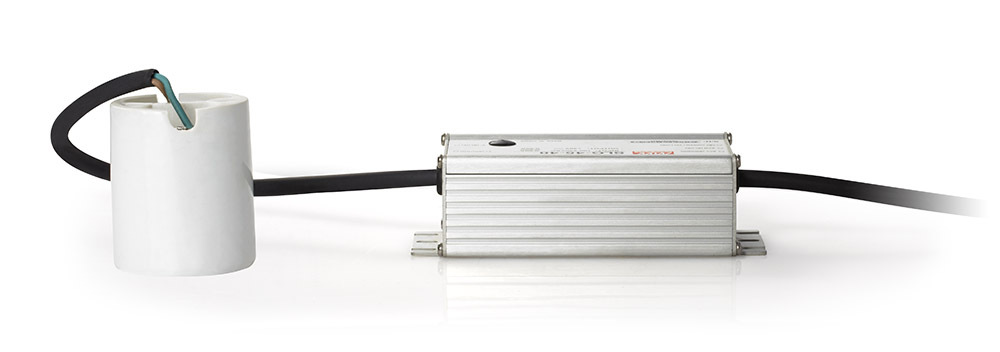

the 120w high bay use the Meanwell power driver.

Product Description

LED high bay light Produce Benefits

Light weight, unique shape, can directly replace traditional lights.
Free change the cover, easy installation
Green Environmental protection, pole height scalable.
Coated nano-carbon, best heat dissipation, surface temperature ultra-low.
Ultra bright, super energy saving, whole lamp output luminous efficiency >135LM/W.
Lamp body temperature less than <50℃ on full-power working.
Save more than 90% power compared with traditional HPS lamp

LED High bay light energy-saving 50% than other competitor same product

Item	Paramters
Power Consumption	120W ( Mean Well Driver )
Input voltage	AC85-277V
LED Source	Top DIP EPISTAR LED
Dimension	Φ455MM.telescope (240-340mm)
Power Factor (PF)	>0.90
LED Luminous Flux	17105LM
Luminaire Efficiency	>85%
Illumination Uniformity	>0.8
Correlated Color Temperature	Warm White 3000K; Neutral White 5000K; Cool/Cold White 6500K
Color Rendering Index	Ra≥80
Beam Angle	90º
Degree of Protection	IP20
Operating Ambient Temperature	-30°C~55°C
Storage Ambient Temperature	-30°C~50°C(30°C Best)
Lamp Operating Temperature	Ambient Temperature	LED Lights Pin
	25°C	50°C
Certificate	CE, RoHs,SAA
lifespan	50000H

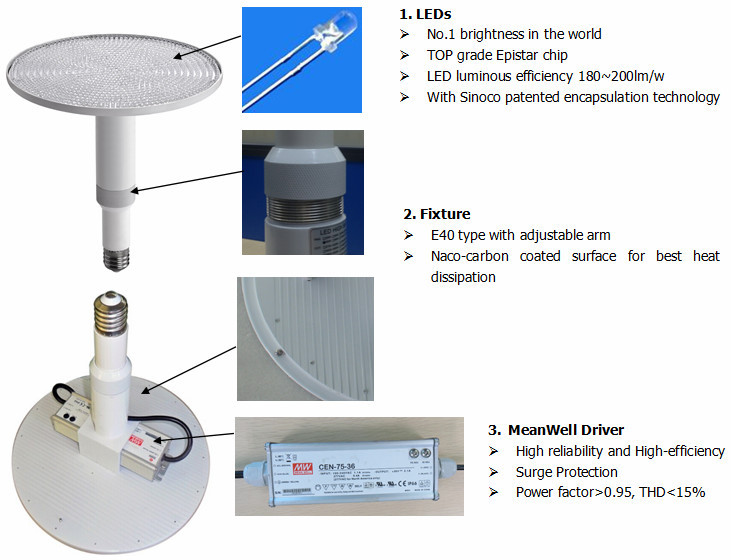

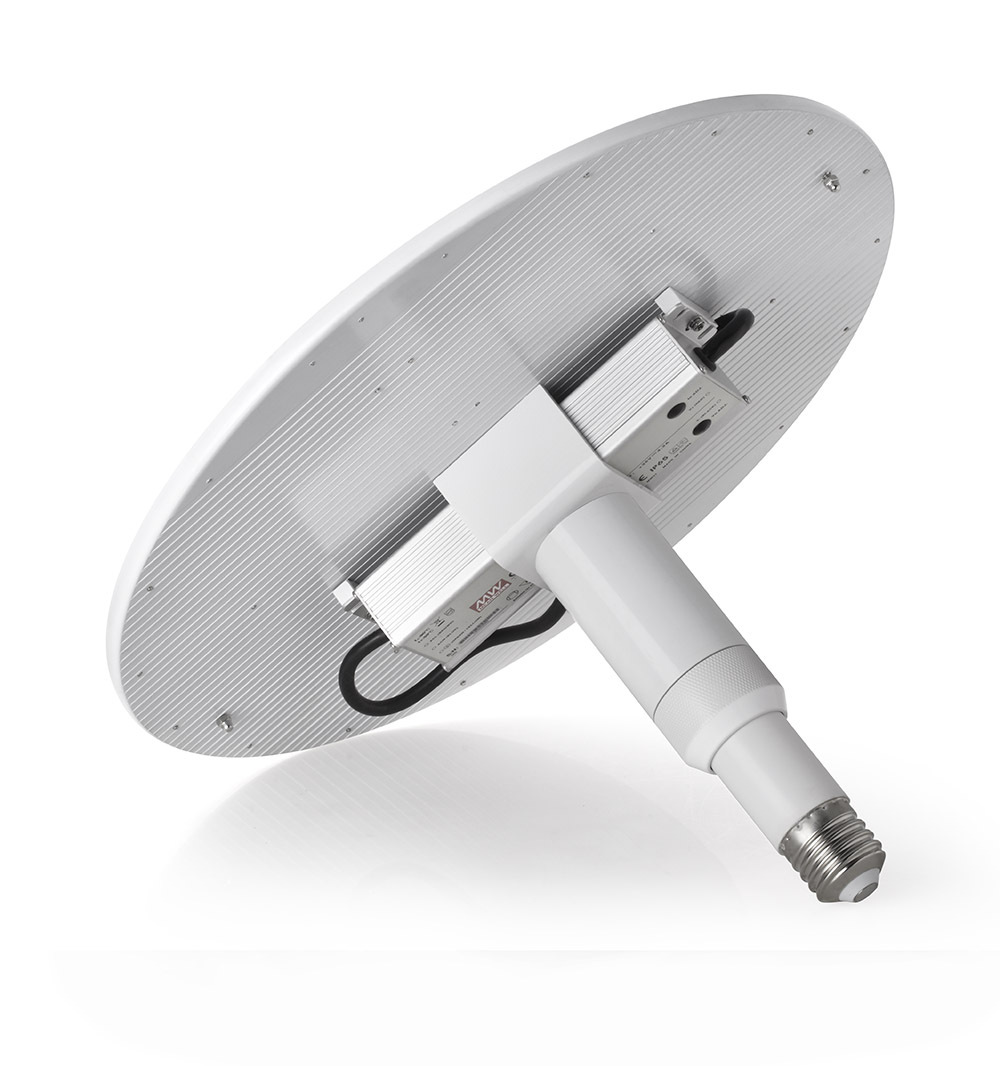

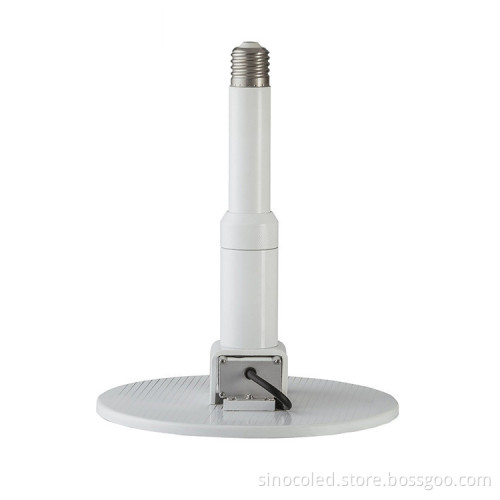

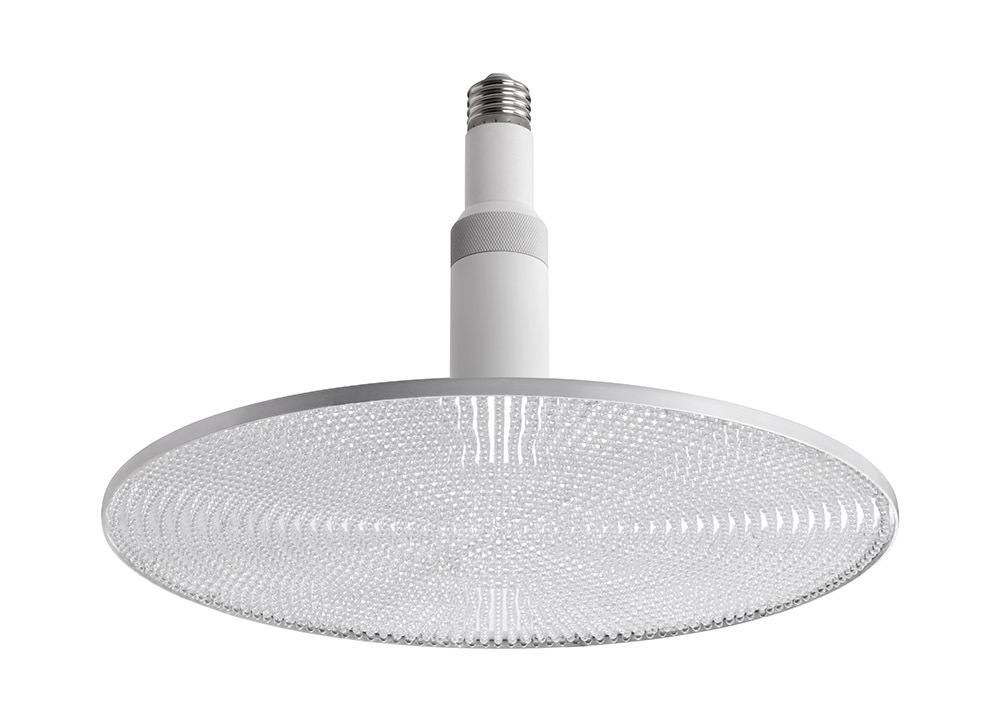

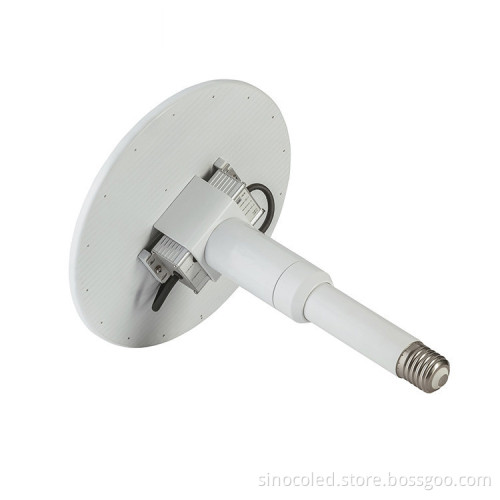

Product Details of Sinoco LED Highbay Light

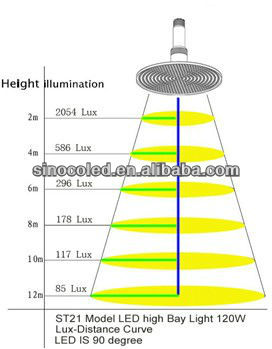

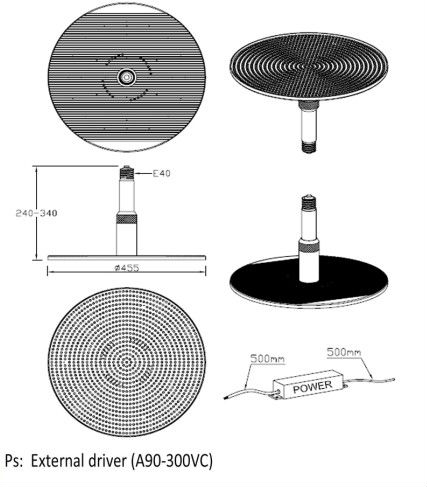

PRODUCT SIZE: LIGHT CURVE:

SINOCO High Bay Parts 120 Watt E40 LED Meanwell Driver DIP 180~240 lm/W Aluminum IP65 Warehouse CE/SAA/ROHS Certified Dialux

Sinoco LED Highbay
Mode No.	ST-21-30W	ST-21-40W	ST-21-60W	ST-21-67W	ST-21-90W	ST-21-120W	ST-21-150W
Lamp Power	30W	40W	60W	67W	90W	120W	150W
Lumen	3960lm	5280lm	7920lm	8844lm	13050lm	17400lm	21750lm
Lumen Efficacy	132LM/W	132LM/W	132LM/W	132LM/W	145LM/W	145LM/W	145LM/W
Replace HPS/MV	≥150W	≥250W	≥300W	≥400W	≥600W	≥800W	≥1000W
LED Qty	504 LEDs	660 LEDs	1008 LEDs	1200 LEDs	1504 LEDs	2088 LEDs	2400LEDs
Size	Φ205	Φ305	Φ305	Φ305	Φ360	Φ455	Φ455
Net Weight	1.3kg	1.3kg	1.9kg	2.8kg	3kg	3.9kg	4.3kg
Light Source	Epistar DIP LEDs(180~200lm/w)
CRI	>70
Driver	MeanWell driver (THD:≤15%)
Power Factor	>0.95
Input Voltage	85~265VAC, 50/60Hz
Color Temp.	Warm White:3000-3500K Pure White: 5300-5800K Cool White: >7000K
Beam Angle	120°/90°/60°/45°
Lifespan	>50000 hours
Operating Temp.	-30 to 65 degree
Material	Die Cast, Extruded Aluminum
Warranty	3 years
Certificates	FCC PSE CE RoHS
