Discount outdoor rgb remote wireless wifi controller supplier

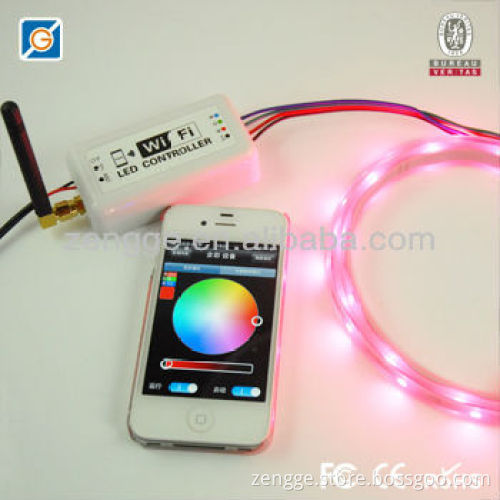

Specifications 1:wireless wifi controller

2:LED leader

3:Single color or RGB

4:newest product

5:Long remote distance

Packaging & Delivery Packaging Detail: standard export package Delivery Detail: 3-7days a mass order depend on producting Specifications discount outdoor remote wireless wifi controller supplier 1:wireless wifi controller
2:LED leader
3:Single color or RGB
4:newest product
5:Long remote distance   II. Technical Parameters   Working Voltage: DC7.5-24V . Output channel: Can be used 3/2/1 channel . Output current: 4A*3 . Connecting method: Common anode . Dimension: L105.5*W45*H23mm . Remote distance: 50 meters indoor, 100 meters outdoor . Software: Android system (at least version 2.3 with WIFI function) or IOS system, .Language : English/Chinese. . Receiver sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g OFDM(-15dBm) . Connect way: V+ R, G, B for LED Light, V+, V- for Power supply, ANT for WIFI signal reception. . Remote control technical parameters1. Working temperature: -20-60°C .Power supply method: AAA*3 .Standby power: 0.015mW . Standby current: 3uA .Working current: 200uA .Emission current: 10mA .Standby time: 6 months Product constitute

NO.	Item	Description
1	WF200 Controller	It is the core of product, responsible for receive control signal and control LED equipment.
2	CD	Include mobile soft for IOS operating system and Android operating system. Product manual.
3	Wireless router(buy it own)	If you want to use online, suggest to connect wireless router(>150M)

 II. Magic Color 1.0 Instruction  1. Install LED Magic Color 1.0   First make sure the iTune have installed in your computer.Or,pls download the latest version of iTunes.  Then,search"LED Magic Color"in App store,download for free and install it.     2.Connect WIFI controller:    Pls connect WIFI controller with power supply,make sure the correct connection.Then connect your phone to wifi controller. Pls click the "WLAN" to search. Make sure the WIFI SSID FOR CONNECTION is LEDNETXXXX",passworkd:88888888.Show as below.   3. Setting the WiFi Controller After scan the device. Search the the You can change the name and password when you enter the below page: 1) Change the item name as “LED WiFi Controller” : 2)  Change the WiFi SSID name and setting the connect mode for device.      Remarks:  1.The Device IP is :192.168.10.1-192.168.10.255.Default password:88888888.Keep in mind the new password if you change it.  2.For on-line mode,change the SSID to match with your router.  3.Modify successful,pls sign out,device will work after power up again. 4. Software operating (RGB and Single Color)   How to use   1) Color ring: Press the color ring, choose any color as your request. The Color state shows your choice.  2) Brightness bar: On the left, it is the Max. brightness, on the right is the Min. brightness  3) Run key: Invalid in static color, valid for dynamic modes.  4) Open: ON/OFF.  5) 20 built-in modes:   Press M-/M+ to choose the mode,you can adjust the speed at the same time.Total31 grades:1 is the fastest while 31 is the slowest grade.Pls built in mode from THE RGB control.   20 Built-in modes  Single Color Vision How to use  1) Brightness: you can change it from 0 to 100%  2) Speed: For “Strobe flash” and “Gradual” mode, Speed is adjustable. Total 31 grades   "1" is the fastest grade; "31" is the slowest grade Our Services  1. Your inquiry related to our products or prices will be replied in 24 hours  2. Well-trained and experienced staffs to answer all your enquires in fluent English  3. OEM and ODM, any your customized Lighting & Controller we can help you design put into product  4. Distributorship are offered for your unique design and some our current models  5. Protection of your sales area, ideas of design and all your private information                   ...
