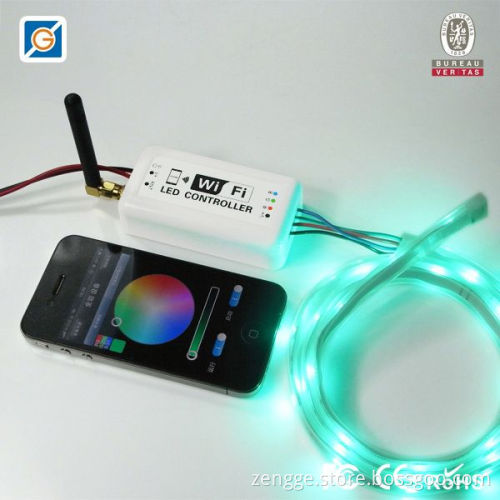

customize led programmable wifi remote led module control card for led flexible strip

Specifications 1:programmable wifi remote led module control card for led light

2:programmable wifi remote led module control card

customize led programmable wifi remote led module control card for led flexible strip Packaging & Delivery Packaging Detail: standard export package
Delivery Detail:3-7days after comfirmed the order and received the deposit. a mass order depend on producing
programmable wifi remote led module control card - Images


customize led programmable wifi remote led module control card for led flexible strip Specifications. Working Voltage: DC12-24
. Output current: 4A*3
. Output channel: Can be used 3/2/1 channel
. Dimension: L105.5*W45*H23mm
. Connecting method: Common anode
. Remote distance: about 50 meters indoor, 100 meters outdoor
. Software: Android system (at least version 2.3 with WIFI function) or IOS system
. Language : English/Chinese.
. Receiver sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g OFDM(-15dBm)
. Connect way: V+ R, G, B for LED Light, V+, V- for Power supply, ANT for WIFI signal reception.
. Remote control technical parameters1. Working temperature: -20-60°C
. dimming lighting by wifi light switch
. remote control led by led wifi controller
customize led programmable wifi remote led module control card for led flexible strip
programmable wifi remote led module control card - New WIFI LED Controller Mode

Number	Mode	Remarks
1	Seven color cross fade	Speed is adjustable. Total 31 grades "1" is the fastest grade; "31" is the slowest grade.
2	Red gradual change
3	Green gradual change
4	Blue gradual change
5	Yellow gradual change
6	Cyan gradual change
7	Purple gradual change
8	White gradual change
9	Red/Green gradual change
10	Red/Blue gradual change
11	Green/Blue gradual change
12	Seven color strobe flash
13	Red strobe flash
14	Green strobe flash
15	Blue strobe flash
16	Yellow strobe flash
17	Cyan strobe flash
18	Purple strobe flash
19	White strobe flash
20	Seven color jumping change
