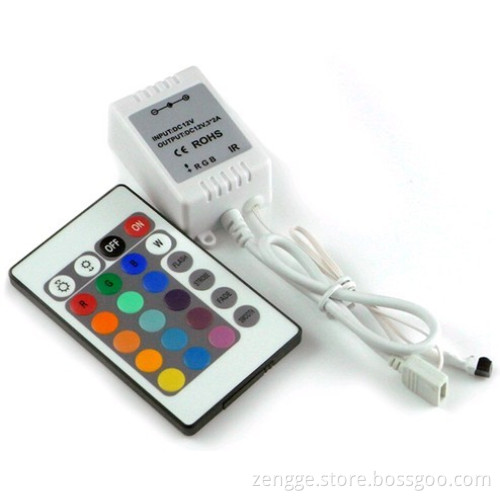

24key IR rgb led lighting controller for Christmas light

Specifications 24key IR rgb led lighting controller for Christmas light

1.easy connection, simplicity usage

2.stable power supply

3.ir

24key IR rgb led lighting controller for Christmas light   Summarization    24-key infrared LED RGB controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection ,simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing and other effects of change. Total 24 modes for your choice.   Technicial Parameter  of  24key IR rgb led lighting controller for Christmas light

Working temperature	-20-60 °C
Supply voltage	DC5V, 12V, 24V
Size	L50*W35*H22mm
Net weight	41.5g
Output	Three CMOS drain- open output
Output current	<2A(each channel)
Output power	5V:<30W,12V:<72W,24V:<144W
Connecting Mode	Common anode/ cathode

  Product Features   1.Energy efficient and stable power supply with wireless remote. 2.Convert AC voltage to DC for use with LEDs. 3.No mercury, UV, IR or other deleterious radiation. 4.Color changing, fading, and brightness controls wirelessly through remote. 5.Great for many different applications!   External Dimension Controller dimension: Remote control dimension: Control method   Adopt IR remoter to control the led controller, which has 24 buttons, the function of each button as the table below

Brightness +( 16 in all )	Brightness-( 16 in all )	Off	On
Static red	Static green	Static blue	Static white
Static orange	Static pea green	Static dark blue	7 color jumpy change
Static dark yellow	Static cyan	Static brown	All fade out & fade in
Static yellow	Static light blue	Static pink	7 color fade change
Static straw yellow	Static sky blue	Static purple	3 base color jumpy

Direction: When switching to four dynamic mode (7 color jumpy change, All fade out & fade in, 7 color fade change, 3 base color jumpy), the button of “Brightness +”/ “Brightness -” means the speed of light change is up/ down, there are 32 step in all.   Key instruction of  24key IR rgb led lighting controller for Christmas light     Connecting drawing:     Packing of  24key IR rgb led lighting controller for Christmas light   1pc in white box, White box: L106*W64*H56mm 100pcs/carton, carton size:L22.44'*W13.4'*H9.25'/1.61'   Our Services 1. Your inquiry related to our products or prices will be replied in 24 hours 2. Well-trained and experienced staffs to answer all your enquires in fluent English 3. OEM and ODM, any your customized Lighting & Controller we can help you design put into product 4. Distributorship are offered for your unique design and some our current models 5. Protection of your sales area, ideas of design and all your private information     ...
