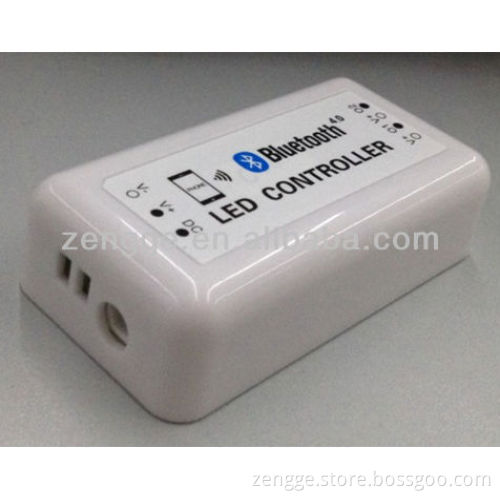

2013 new high-tech bluetooth controller

Specifications bluetooth controller

1.constant current/constant voltage

2.support IOS system

3.RGB/RGBW/Single color/Double color

2013 new high-tech bluetooth controller         "ZHENGJI" team,do not only provide high quality "zengge" led smart light,intelligent lighting,led controller,led dimmer,led strip,amplifier and other light control product,but also provide OEM,ODM service.Give you most available light control system is our target.
      Alibaba is our B2B platform,for attract more customer,we have updated many same product.It would be not convenient for you to choose product.
      Welcome to visit our site: www.enledcontroller.com to choose product.    Product Parameter  for  bluetooth controller

Conection Methods	Bluetooth Version 4.0
Suitable Phone OS	Any OS support Bluetooth version 4.0 or above
Software language	English
Channels	310:4A/CH,2CH 320:4A/CH,Warm W :1CH,Cool W:1CH 370:4A/CH,R:1CH,G:1CH,B:1CH 410:Imax:0.7A/CH,Vmax:30V,3CH 420:Imax:0.7A/CH,Vmax:30V, Warm W:1CH,Cool W:1CH 470:Imax:0.7A/CH,Vmax:30V, R:1CH,G:1CH,B:1CH
Working Voltage	310/320/370:DC12V-DC24V 410/420/470:Vmax:DC12-DC30V
Working Temperature	-20°C-60°C
Effective Romoted Distance	No barrier,60m ;Indoor, 30m
N.W	≤61g
G.W	≤101g
Waterproof	IP 25
Size	86*45*23mm

  How to Use  for  bluetooth controller                                                                                                      1.   Install Magic LED Light V1.0agic Light V1.0 Instruction  A .Search “Magic LED Light " in App store by iPhone, download for free and install it. B.Download it by scanning QR code: C.Directly download it on site: https://itunes.apple.com/us/app/magic-led-light/id667339109?ls=1&mt=8  Following pages show you how to install "Magic LED Light ".  2. Connect  led rgb bluetooth controller . 3. Software Operating A.Preview: Though led rgb bluetooth controller  haven’t connected, you can open operation interfacel by preview mode. B.Reset:   Rescan controller. 1. White Vision for bluetooth controller   1.White ring: Press the white ring, choose any brightness you like.The brightness state will shows your choice. All off:darkest/ All on:brightest/ Speed bar: 2.For “Strobe” or “Gradual” mode,speed can be adjusted. Total 31 grades of each mode :  "1" is the slowest grade; "31" is the fastest grade.   Modes:1) Strobe mode   2)Gradual mode Run: Invalid in static color, valid for dynamic modes. Open: ON/OFF. 2.Warm White and Cool White Vision  for bluetooth controller :         Color temperature ring: Press the ring, choose any color temperature you like .The color temperature state will shows your choice. All off:darkest    All on:brightest    Speed bar: For “Strobe” or “Gradual” mode,speed can be adjusted. Total 31 grades of each mode :  "1" is the slowest grade; "31" is the fastest grade.  Brightness: you can change it from 0-100%.  Modes: Warm gradual/ Cool gradual/ Warm flash/ Cool flash Run: Invalid in static color, valid for dynamic modes.  /Open: ON/OFF. RGB Vision  for bluetooth controller Color ring: Press the color ring, choose any color as you like.The color will shows your choice. All off:darkest of three channels(R,G,B) All on:brightest of three channels(R,G,B) Brightness bar: Sliding to the left ,light wil be more and more darkest;Sliding to the right,light  will be more    and more bright. Open: ON/OFF/.20 built-in modes: 1) Press M-/M+ to choose modes, you can adjust the speed at the same time. 2) Total 31 grades of each mode:"1" is the slowest grade;"31" is the fastest grade. 3)  Following are 20 built-in modes of RGB Control 20 Built-in Modes   Remarks: 1.Pls don’t operate it when energized. 2.Pls don’t use it in areas which are full of metal and strong electromagnetic waves.Otherwise,effective remoted distance will be shortened significantly. ...
