P20mm LED display panel

Specifications P20mm LED display panel

Waterproof IP65

2 Years warranty

High brightness,light weight

CE,ROHS,UL Certificated

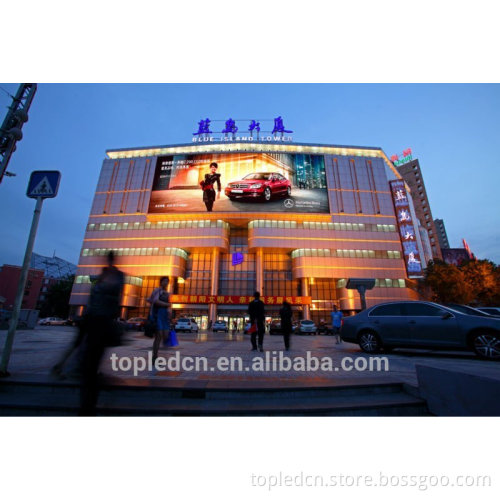

P20mm LED display panel information     Product Description 1. Suitable for outdoor fixed installation or rental installation, viewing distance is moderate. 2. Using aluminum body, light weight, every square only 37 KG, the true realization of slim and lightweight. 3. Precision cabinet, no patchwork installation, quick installation, greatly reducing the burden of handling  labor, the real reached a humanized design. 4. Both sides have reached outdoor protection IP 65, suitable for a variety of outdoor environments,  without steel edging, steel and low cost. Unique personalized design, so that the entire screen better  simple, elegant, generous, is the preferred choice of the goods. 5. Stackable or ceiling installation. 6. Unique mechanical structure design, easy disassembly, a single person can accomplish the entire screen  demolition work, thoroughly solve the slow dismantling the entire screen, people and other issues. 7. High-definition, high gray scale, high refresh. 8. Standard modules and Cabinet Size.

Pixel Pitch	20 mm
Pixel Density(m²)	2500
Pixel Composition	1 R 1 G 1 B
Cabinet size	960 mm*960 mm*89 mm
Cabinet Resolution	48*48 = 2304
Number of modules(one cabinet)	3*3= 9
Cabinet Material	Aluminum
Number of power(one cabinet)	5 V/60 A/3
Cabinet Net Weight	39 kg/Sq. m.
Cabinet Gross Weight	49 kg/Sq. m.
Package Size	1040 mm*1140 mm*278 mm
Red	346; 625 nm, 1000 mcd
Green	346; 525 nm, 2000 mcd
Blue	346; 465 nm, 550 mcd
Module Resolution	16*16
Module Size	320*320*35(mm*mm*mm)
Module Weight	1.4 kg
Power Consumption (single module)	5 V, 71 W
Brightness	6000 cd /Sq. m.
Gray Level	4096
Color	16700000
The best viewing Angle	H: 120°, V: 60°
The best viewing distance	20 m~300 m
Scan Mode	Static; Real
Refresh Rate (Max)	4000 Hz
Input Voltage	110 V/60 Hz,220 V/50 Hz;
Max power consumption	700 W/Sq. m.
Average power consumption	420 W/Sq. m.
Lifespan	50000 h
Operating Temperature	-20°C~+50°C
Operating humidity range	10%RH ~ 90%RH
Front waterproof rating	IP 65
Back waterproof rating	IP 65
