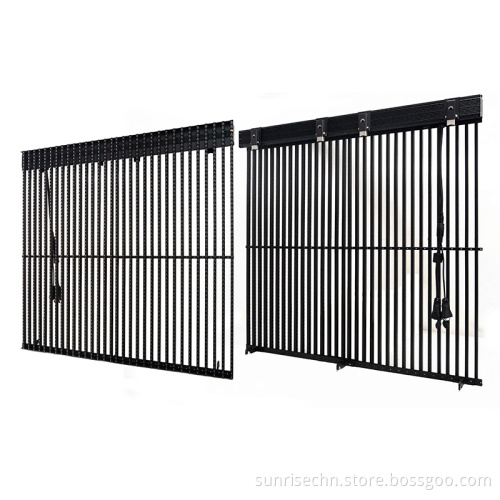

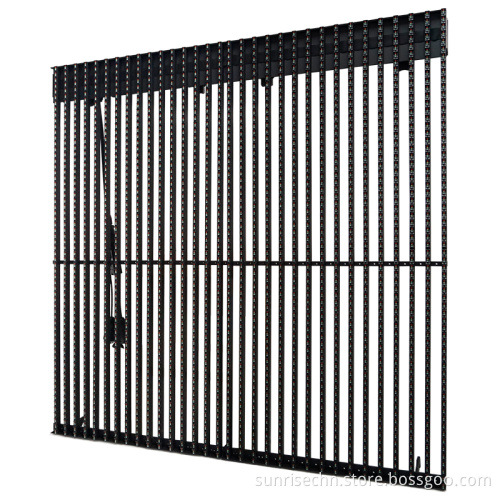

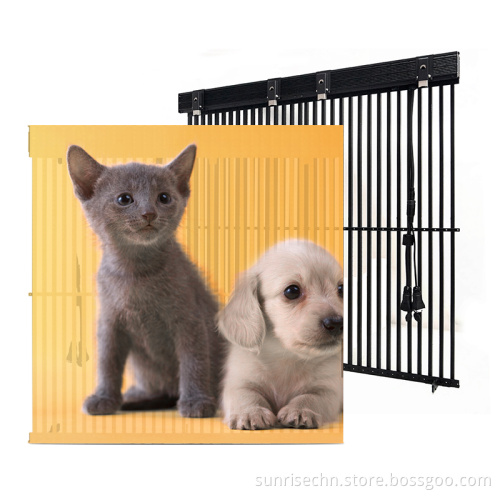

Media Facade LED Building Curtain Screens for Outdoor Advertising

 p15.625 outdoor power saving transparent led display for glass building installation

Screen dimension: above 100sqm

Refresh rate: 3840Hz whithout moire effect

Brightness: 8000 to 12000cd/sqm

Single installation frame: 2x1M included, no need preapre for your side

Power box: optional

Control computer: optional

It is turnkey solution for your specific project, and engineers can arranged to local to guide the installation, you just wait to receive items and lighting up with beautiful performance in local!

 Glass building installation solution:

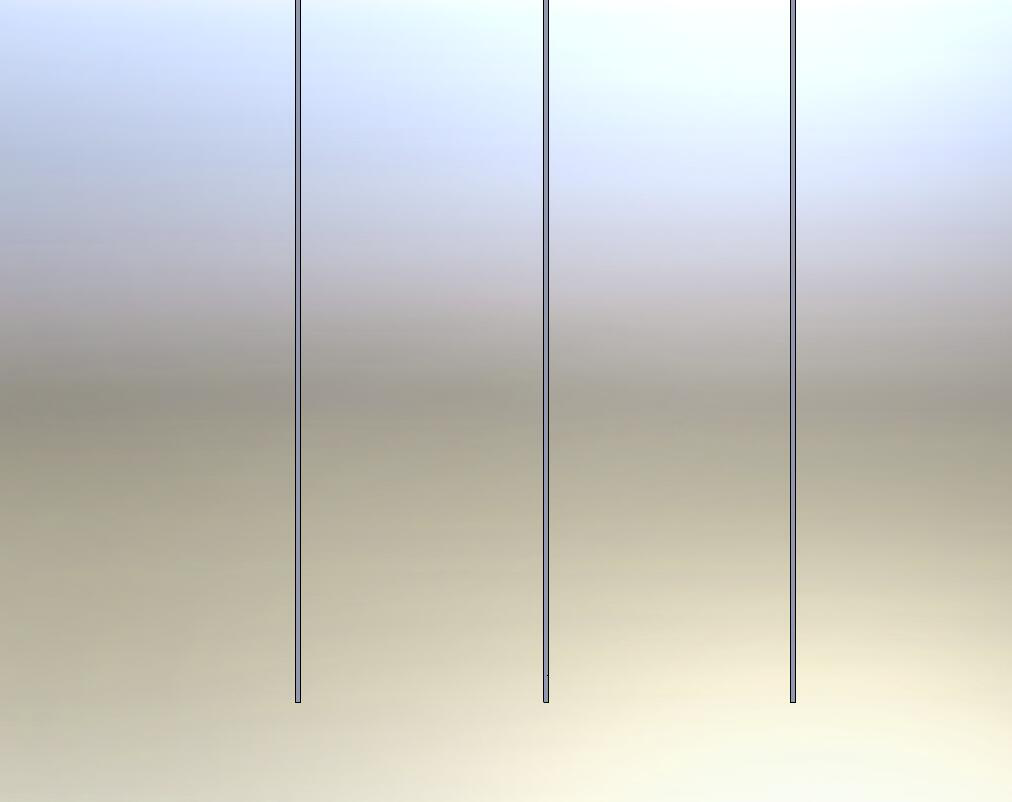

1^st, to install the steel structure(the square steel structure : 40mm or 50mm): in order to show you clearly, here i take part the steel structure as example. The following picture show you the steel structure, which you have done already.

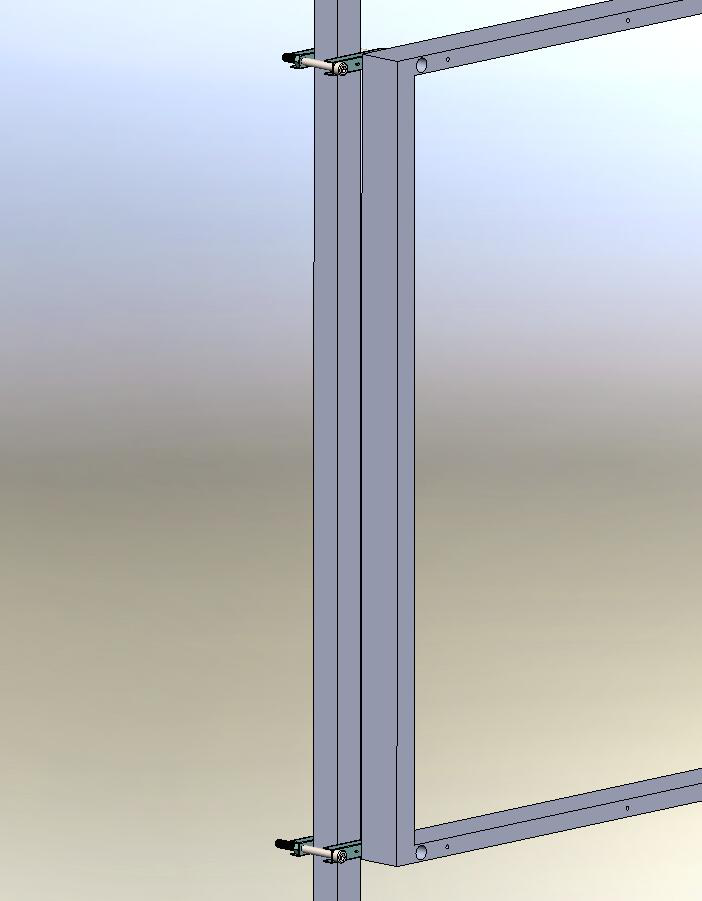

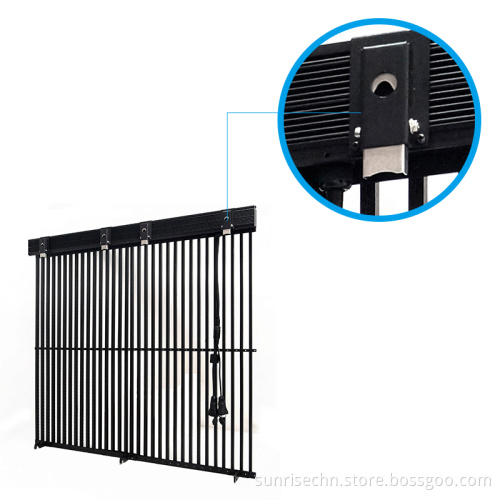

 2nd:use the fixed part to install the rear frame structure on the steel structure.

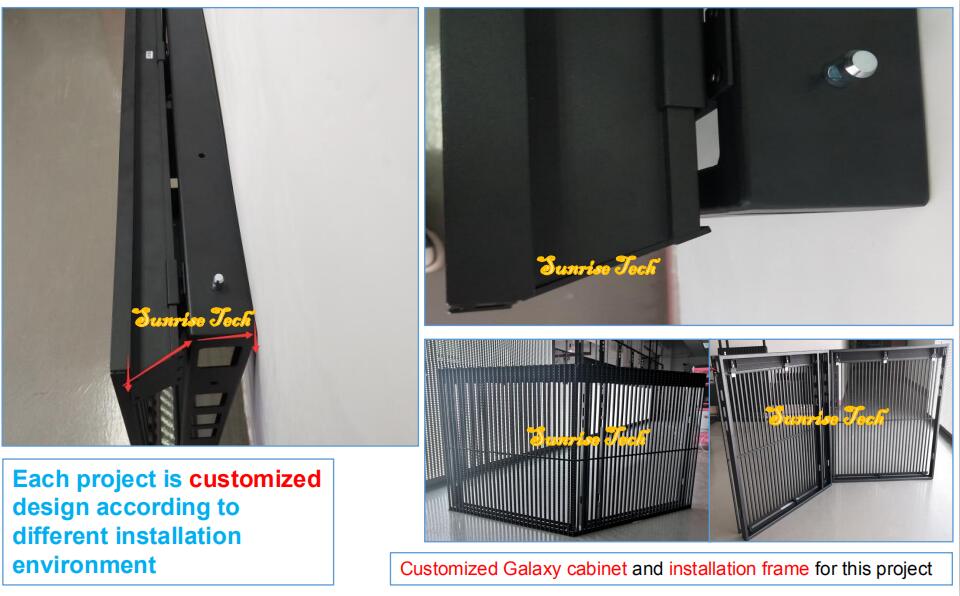

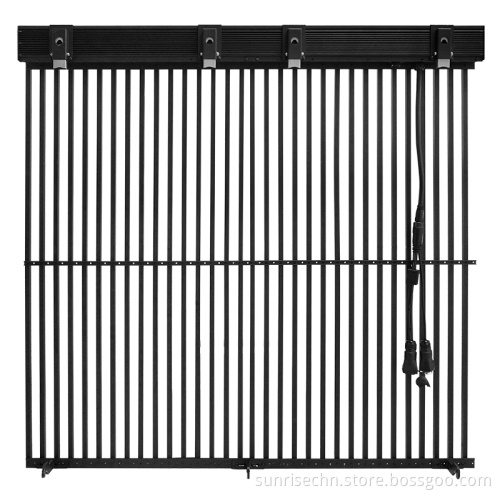

3rd:put the cabinet on the rear frame structure.

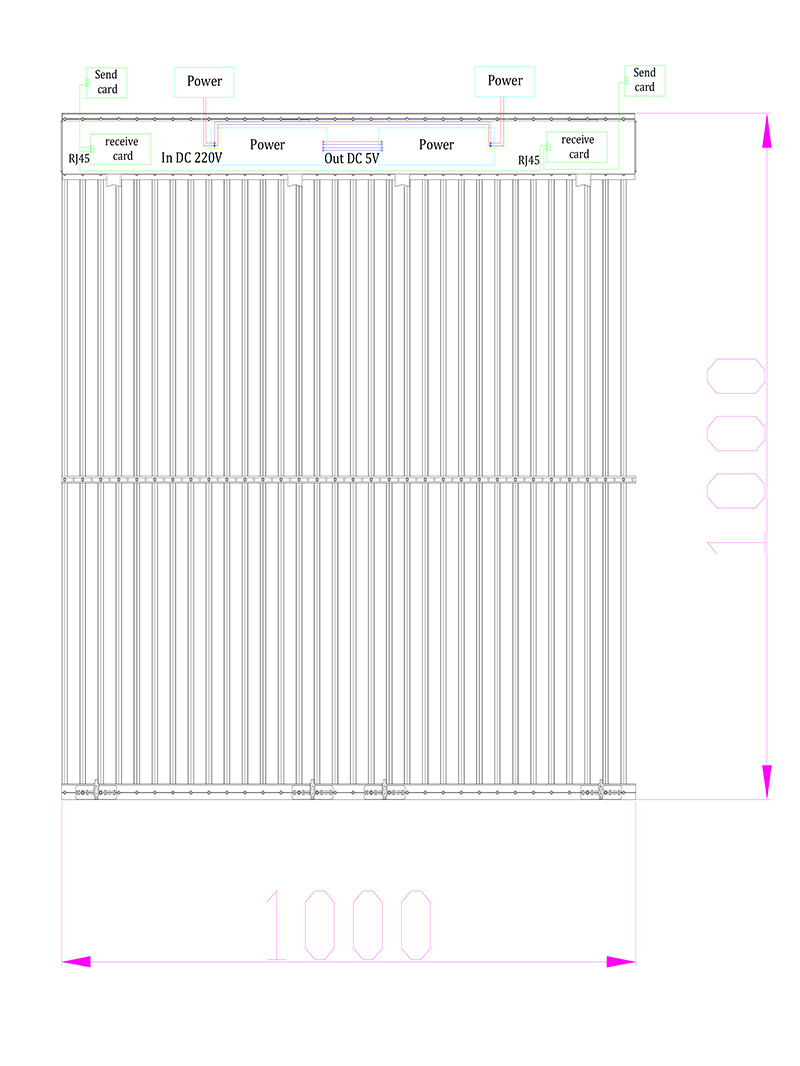

4th:finished the installation of one cabinet (size 1mX1m). and finished the installation of the LED display.

It can also make with curve led wall for the physical wall or glass building.

Whole curve angle can be from +7 to -7 degrees as below image:

Detailed Parameters

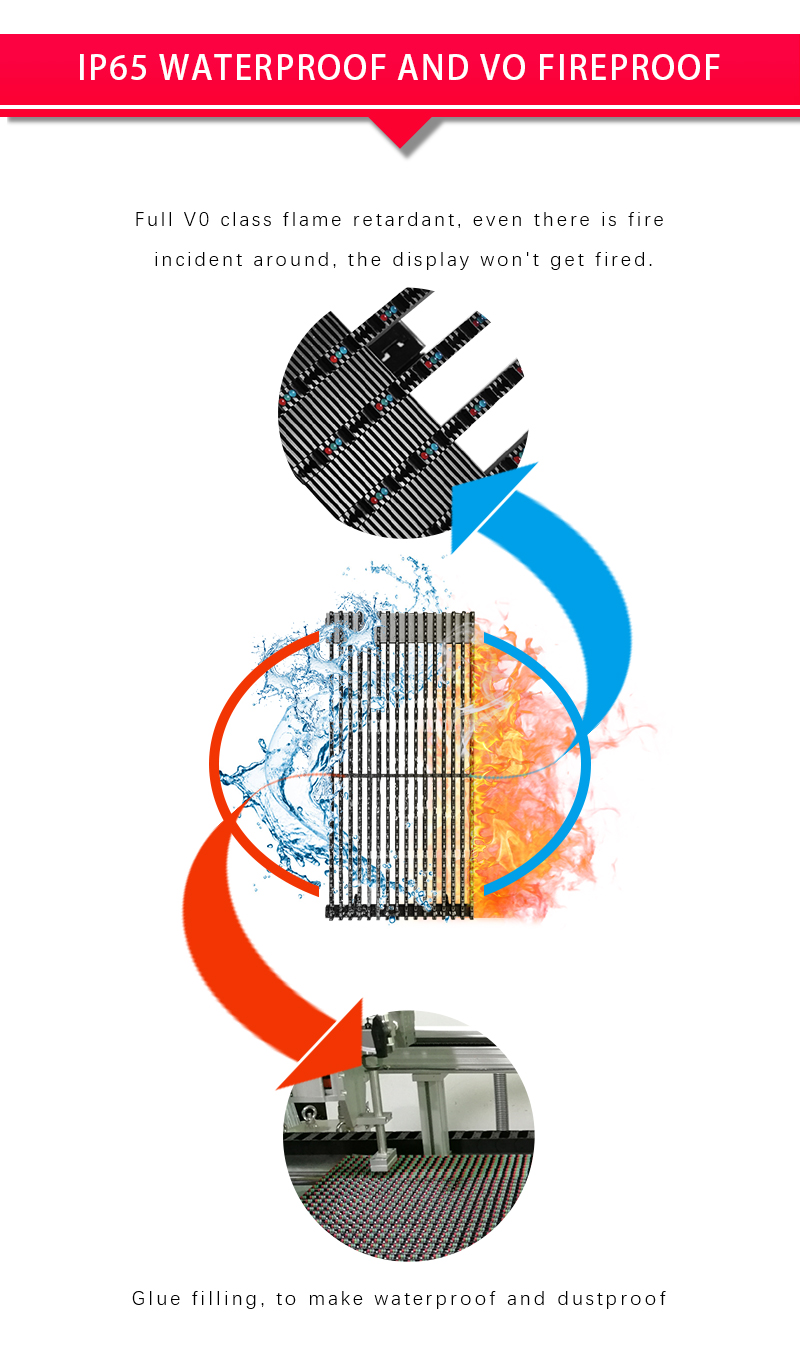

 IP65 Waterproof and VO Fireproof

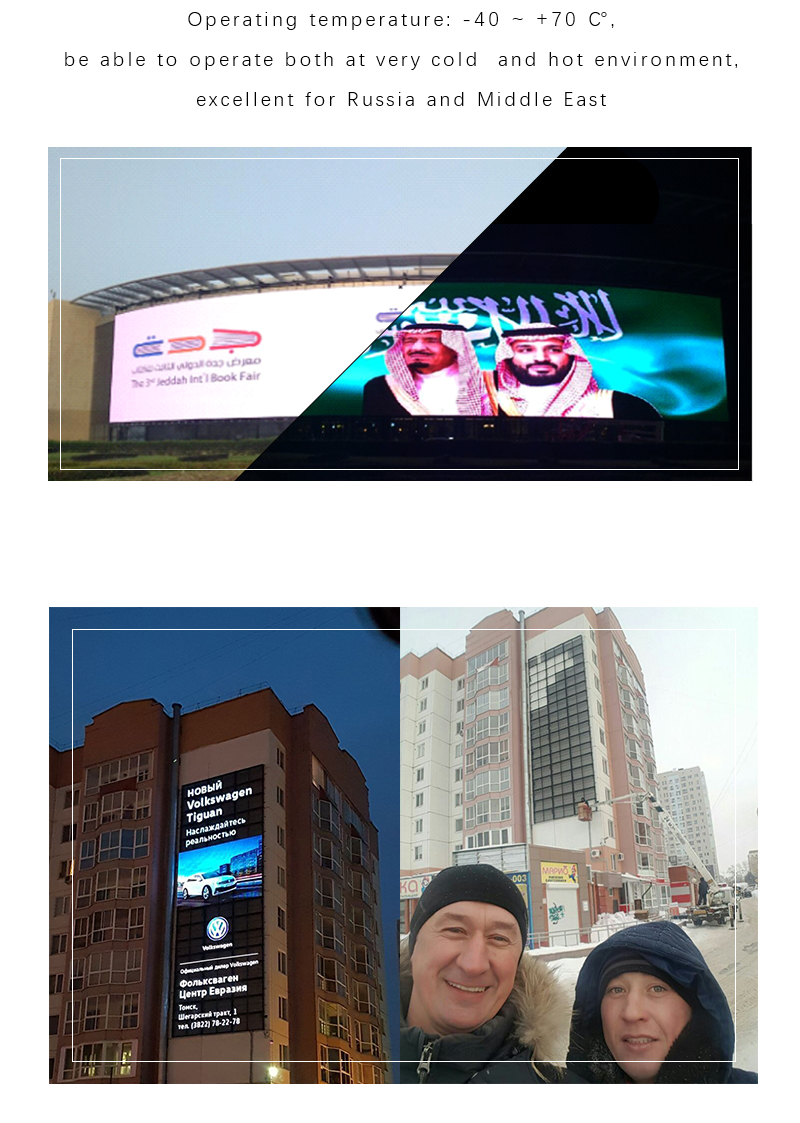

Operating tempeture: -40 to + 70 degrees, be cable to operate both at very cold and hot environment, excellent for Russia and Middle East.

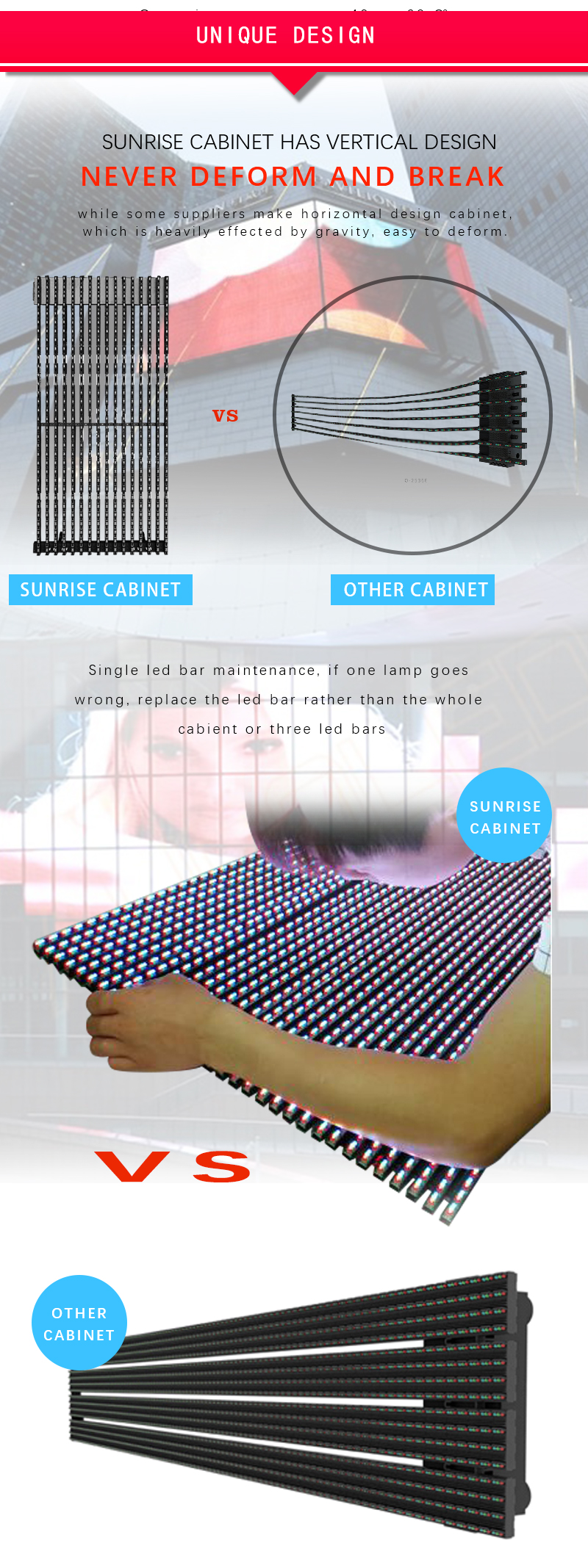

Unique Design

Sunrise cabinet has vertical design

Never deform and break

While some suppliers make horizontal design cabinet, which is heavily effected by gravity, easy to deform.

Single led bar maintenance.
If one lamp goes wrong, replace the led bar rather than whole cabinet or three led bars.

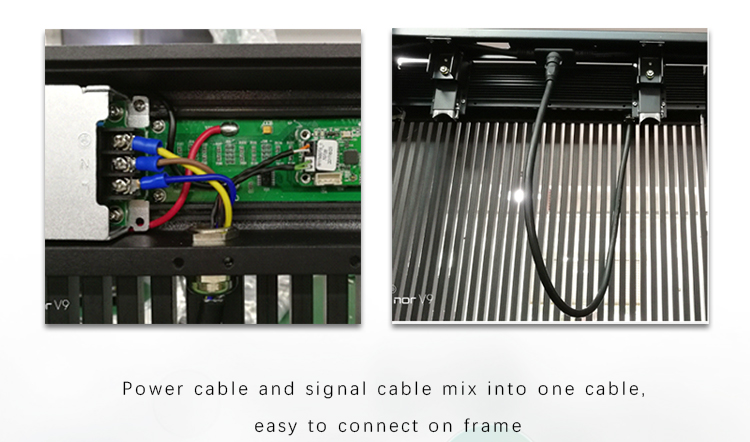

 Power cable and signal cable mix into one cable, easy to connect on frame.

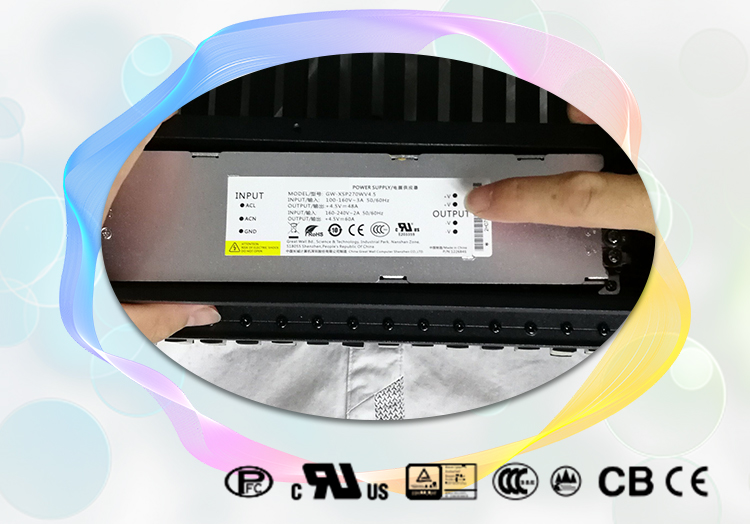

With two power supplies in one cabinet and static scan mode, brightness is over 8500 cd/sqm, people can see it clearly in direct sunlight, while some suppliers use other not famous power supply and 1/2 or so scan mode, brightness is only 6000 cd/sqm. People can not see clearly under strong sunlight, especially when the time is 11:00 am to 3:00 pm.
