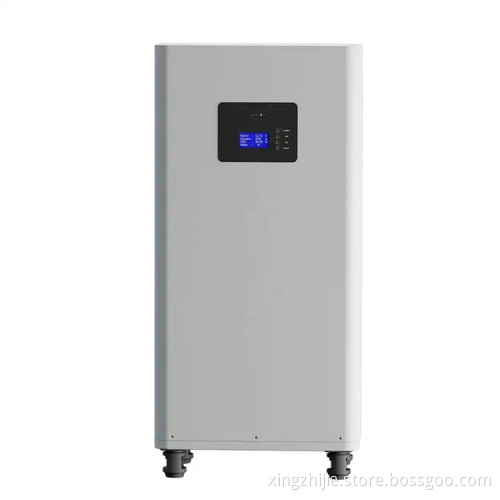

DIY Kit High Safety LiFePO4 Lithium Phosphate Battery - Seplos Mason 280AH

DIY Kit High Safety LiFePO4 Lithium Phosphate Battery - Seplos Mason 280AH

$488.00

1-9 piece
$450.00

10-498 piece
$398.00

≥499 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,Western Union,D/P,D/A,T/T,MoneyGram

Product Description

Product name	280 KIBO
Configuration	1P16S
Nominal Voltage(V)	51.2V
Nominal Capacity(Ah)	280Ah @0.5C discharge current 25±2℃
Nominal Power(wh)	14.3kwh
Dimension(mm)	750440251mm
Weight (kg)	DIY BOX=28.5KG,DIY BOX with cells=112±5kg
Discharg Cut-off Voltage(V)	41.6v
Charge Voltage(V)	57.6v
Continuously Charge/Discharge Current(A)	140A@25±2℃(Recommended)
Max Standard charge/discharge Current	200A@25±2℃
Standard charge/discharge Current	140A@25±2℃(Recommended)
Working Temperature	0-50℃(Charge)
		(-10——50℃)Discharge
		(-20——55℃)Storage
SOC Range	5%-100%
Recommended SOC Range	15%-95%
Communication Interface	CAN(Default) or RS485
Humidity	10%-85%
IP level	IP 20
Certificates	CE, ROHS, MSDS, UN38.3
Our BMS is compatible with Growatt, Goodwe, Sofar, SMA, Victron, DEYE, Luxpower, Sermatec, Renac, TBB Power, Solis, Foxess, and IMEON inverters. Support max. 16 connected in parallel

Package List: 1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover) 1 * 48V 200A 16S Seplos BMS 1 * 58V 400A Fuse 4 * Handle 2 * PCB Board for BMS and Cell Connection 3 * Upper and Lower Latch lock 1 * LCD Screen 1 * LCD Screen Sticker 4 * Button Cap 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector) 2 * Battery Terminals (P+ Terminal and P- Terminal) Other components includes: 6 * Copper bus bars (BMS connection) 15 * Aluminum bus bars (Cell connection) 10 * Epoxy sheet (Between cell and the case) 26 * EVA Tape (Between cells) 1 * PC sheet (Top cover) Screws Details: 12 * Phillip Hex M4 * 8mm (PCB board fix) 9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix) 7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix) 10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix) 12 * Phillip Pan M5 * 10mm (Latch fix) 16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix) 42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case) 4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix) 5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix) 8 * Phillip Round M5 * 10mm + Washer
