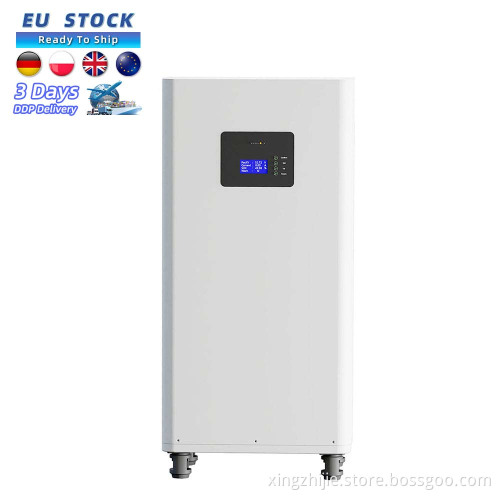

EU Stock Vertical 3.0 Mason 280 DIY Kit for Lifepo4 280Ah/320Ah Battery Rack Box - 48V Energy Storage with Seplos Mason 280 Battery Box

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product name	280 KIBO
Configuration	1P16S
Nominal Voltage(V)	51.2V
Nominal Capacity(Ah)	280Ah @0.5C discharge current 25±2℃
Nominal Power(wh)	14.3kwh
Dimension(mm)	750440251mm
Weight (kg)	DIY BOX=28.5KG,DIY BOX with cells=112±5kg
Discharg Cut-off Voltage(V)	41.6v
Charge Voltage(V)	57.6v
Continuously Charge/Discharge Current(A)	140A@25±2℃(Recommended)
Max Standard charge/discharge Current	200A@25±2℃
Standard charge/discharge Current	140A@25±2℃(Recommended)
Working Temperature	0-50℃(Charge)
		(-10——50℃)Discharge
		(-20——55℃)Storage
SOC Range	5%-100%
Recommended SOC Range	15%-95%
Communication Interface	CAN(Default) or RS485
Humidity	10%-85%
IP level	IP 20
Certificates	CE, ROHS, MSDS, UN38.3
Our BMS is compatible with Growatt, Goodwe, Sofar, SMA, Victron, DEYE, Luxpower, Sermatec, Renac, TBB Power, Solis, Foxess, and IMEON inverters. Support max. 16 connected in parallel
