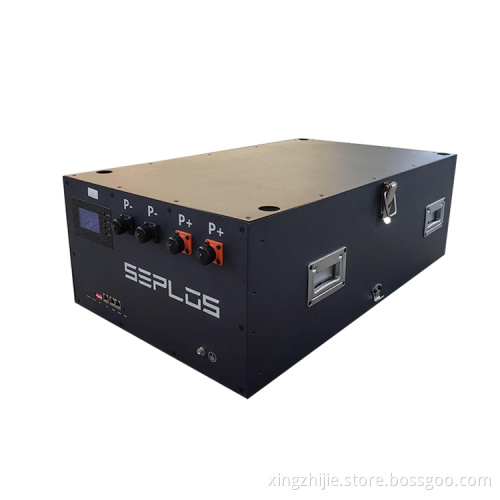

DIY SEPLOS LiFePO4 Battery Packs - 48V to 280AH to 310AH Kit with Assembly Case

DIY SEPLOS LiFePO4 Battery Packs - 48V to 280AH to 310AH Kit with Assembly Case

$479.00

≥1 piece

Min. Order:: 1 piece

Min. Order:: 1 piece

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	2000 Box/Boxes per Quarter
Payment Type:	L/C,Western Union,D/P,D/A,T/T,MoneyGram

Product Description

Product name	SEPLOS 48V 51.2V 206V 280AH 302AH 310AH LiFePO4 Lithium Phosphate Battery Pack DIY Kits Set Case Assemble Box Without Cells
Basic Paramenters	MASON-280
Nominal Voltage(V)	51.2V
Nominal Capacity(Ah)	280Ah @0.5C discharge current 25±2℃
Nominal Power(wh)	14.3kwh
Dimension(mm)	750440251mm
Weight (kg)	DIY BOX=28.5KG,DIY BOX with cells=112±5kg
Discharg Cut-off Voltage(V)	41.6v
Charge Voltage(V)	57.6v
Continuously Charge/Discharge Current(A)	140A@25±2℃(Recommended)
Max Standard charge/discharge Current	200A@25±2℃
Working Temperature	0-50℃(Charge)
		(-10——50℃)Discharge
		(-20——55℃)Storage
SOC Range	5%-100%
Recommended SOC Range	15%-95%
Humidity	10%-85%
IP level	IP 20
Certificates	CE, ROHS, MSDS, UN38.3
Our BMS is compatible with Growatt, Goodwe, Sofar, SMA, Victron, DEYE, Luxpower, Sermatec, Renac, TBB Power, Solis, Foxess, and IMEON inverters. Support max. 16 connected in parallel

Packing List
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)

1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse

4 * Handle
2 * PCB Board for BMS and Cell Connection

3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)

Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)

Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
