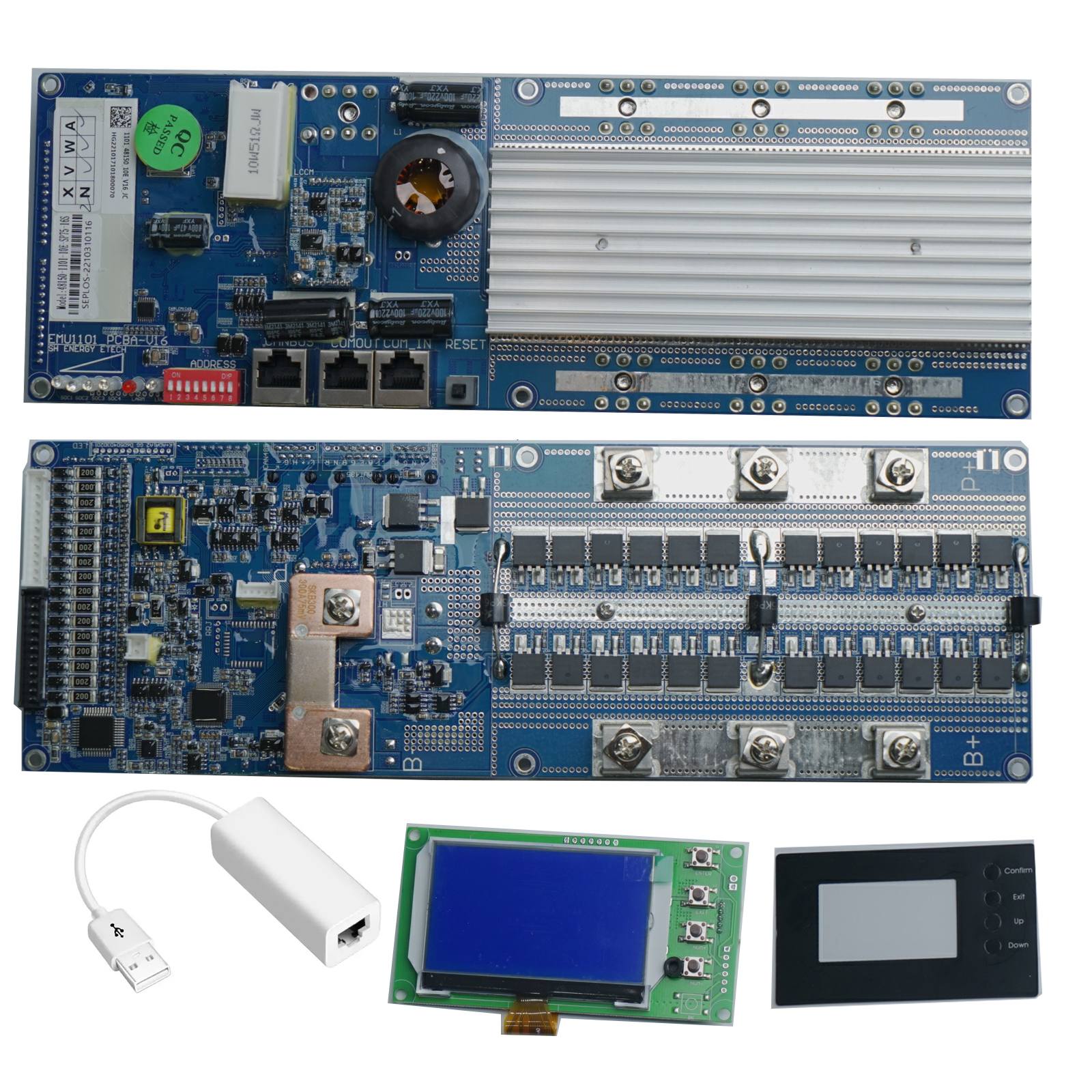

Seplos BMS 24V/48V 100A-200A 8S-16S LiFePO4 Battery Management System with BT/CAN and RS485

Seplos BMS 24V/48V 100A-200A 8S-16S LiFePO4 Battery Management System with BT/CAN and RS485

$10.00 - $245.00/set

Min. Order:: 1 set

Min. Order:: 1 set

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,Western Union,D/P,D/A,T/T,MoneyGram

Product Description

Product Name	Seplos 24V/48V 50A/100A/150A/200A CAN/RS485 battery protection board Balance lithium smart 48V Lifepo4 BMS
Battery type and serial number	LFP(16S/15S)			NCM(14S/13S)
Continuously charging/discharging current	50A/100A/150A/200A			50A/100A/150A/200A
Communication protocol	CANBUS（defult） RS485(Please contact Sale man)
Custom function	Heating function、External switch、RS485 protocol
Discharge Output Impedance	<2mΩ
Working Temperture	-20℃-70℃
compensating impedance	10mΩ
Pre-charging	0-3000ms
Bluetooth	With Bluetooth
Current Balance	Passive balance			150mA(Max)
Power consumption	Working mode power consumption	<40mA
Power consumption		Sleeping mode power consumption	0uA
Capacity protection	Nominal capacity	5-500Ah
Capacity protection		Remaining capacity protection	5%
Short Circuit protection	Short circuit protection lock	Continuously short in the output circuit
		Short circuit protection lock times	5 times
		Short circuit protection lock release	Connected with charger
Individual cell voltage protection	Over voltage protection	3650mV	4200mV
Individual cell voltage protection		Under voltage protection	2700mV	2900mV
Voltage protection	Over voltage protection	57.6V	58V
Voltage protection		Under voltage protection	41.6V	40.6V
Current protection	Over current protection	60A/110A/160A/210A	60A/110A/160A/210A
Current protection		Over current protection time delay	Over current protection time delay	30mS
Current limiting(charging)	Passive current limiting	10A
Heating function	Start			0℃
Heating function		Stop			10℃
