Wholesale LED P7.62 Indoor led module display

Wholesale LED P7.62 Indoor led module display   1. P7.62 indoor Module (244mm*122mm ) Pictures:

Model	Size	Pixel Pitch	Resolution
P7.62	244mm*122mm	7.62mm	32*16dots

  2. P4 indoor LED display technical parameter

P7.62indoor full color LED display
1	Pixel Information	Pixel Pitch	7.62mm
		Pixel Density	17,222dots/m²
		Pixel Configuration	1R1G1B
2	Viewing	Brightness	≥1500 CD/m²
		View Angle	140°/140°
		Optimum Viewing Distance	>6m
		Gray Level	RGB/8192/14bit
3	Power Supply	Working Voltage	110V~±15% or 230V~±15%
		Max Power Consumption	1000W/m²
4	Ambient Conditions	Operating Temperature	-20°C~+60°C
		Operating Humidity	35%-85%
5	Processing	Driving Method	1/8scan, Constant Current
		Refresh Rates	≥800Hz
		Signal Input	RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION
		Control   System	Sending card + Receiving card + Hub card +PCTV Non-liner card + Muti-funcational card(Optional) + Video processor(Optional) + Fiber Transmitter (Optional)
6	Cabinet	Cabinet thickness	< 8cm	or Designed by requirements
		Cabinet weight	< 10kg/cabinet
		Cabinet size	Normal 732 x 732mm
		Cabinet material	Aluminum alloy or Iron, Steel
7	Others	Life Span	>100,000hours
		Blind Spot Rate	<0.00001
		LED encapsulation	SMD3528
		Color Temperature/contrast	Brightness and contrast of red, green and blue   can be adjusted by software.
		Image Processing	Video denoising, rapid motion compensation, edge sharpening, edge smoothing
			Color coordinate conversation & control, grey scale transformation etc
		Brightness uniformity	Ratio of min pixel brightness/ max  pixel<0.9(when each color reaches its highest brightness)
		Effective control distance	Cat-5<100M, Muti-mode  fiber: <500M; single- mode fiber<20Km

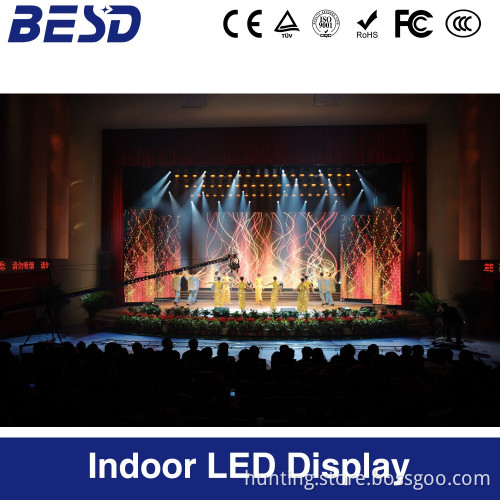

  3. P7.62 indoor led display pictures:   4.Product features 1) SMD3-in-1 technology is used for indoor LED Display. 2) Wide view angle: 140 in horizontal and 140 in vertical. 3) Special design and advanced SMT technology improves the heat dissipation. 4) with high refresh rate controller, guarantee that no scan line when taking photos. 5) Regular shape and special shape (such as curve, round) can be designed. 6) Easy for assembling and connection with the connector added. 7) High color uniformity and clear image can bring you a vivid audio visual effect. 8) Both front access and rear access are available. 9) Items: BESD-IFP4, BESD-IFP5, BESD-IFP6, BESD-IFP7.62, BESD-IFP8, BESD-IFP10            Packaging & Shipping 1Safety Packing:     2. Shipping by sea or by air or international expressDHL, UPS FedEX   Company Information Our company SHENZHEN BESDLED CO.,LTD is a professional LED display screen manufacturer. We have specialized in LED since 1996. We have a lot of advantages: 1. 17 years history, rich experience in quality control.
2. 13000sqm with 250 employees, big factory with reliable after-sales service.
3. LED encapsulation factory, control the quality of every single LED.
4. Automatic producing line for module, guarantee the delivery time.
5. Experienced technician for debugging and testing. 6. 2 years warranty with 0.6% free spare parts. 7. Provide technical support and training. 8. Long term cooperation and sharing.   exhibition:     Our best quotation will be sent to you immediately once got the enquiry! Thanks.
