P4.81 P3.91mm indoor or outdoor full color LED Stage Background Strip Curtain

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Model:BESD-IFP3.91
Pixel Pitch	3.91mm	Module size	250×250mm
Pixel configuration	1R1G1B	Module density	64×64mm
View angle	120°/120°	Pixel density	65536 dots/sqm
LED encapsulation	SMD2121	Refresh Rate	1200HZ-2000HZ
Pixel error rate	<0.00001	Certification	CE,ROHS,FCC,CCC
Cabinet size	Normal 500mm × 1000mm/500mm × 1000mm Or customized design	Cabinet material	Die Casting Aluminum
Cabinet thickness	< 6cm or Designed by requirements	Cabinet weight With fast lock	9kg/cabinet or Designed by require
Driving Method	1/16scan	Max power consumption	800W/sqm
Brightness	>1200nit	Type Power consumption	400W/sqm
Working voltage	AC220 /110 ± 10%, 47~63Hz	Working temp	-20°C to +60°C
Best viewing distance	>4m	Working humidity	20% ~ 90%
Brightness level	256levels Manual / Automatic	Lifespan	>100,000hours
Image processing	Video denoising, rapid motion compensation, edge sharpening, edge smoothing, color coordinate conversation&control , grey scale transformation etc
Brightness uniformity	Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness)
Effective control distance	network cable 100m,single mode fiber cable 10KM
Color Temperature/contrast	Brightness and contrast of red, green and blue can be adjusted by software,100 scales are available, color temperature is adjustable
Input signal	DVI,VGA,RF,SDI,S-VIDEO,RGB,RGBHV,YUV,YC&Composite
Control	Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional)

Cabinet pictures:

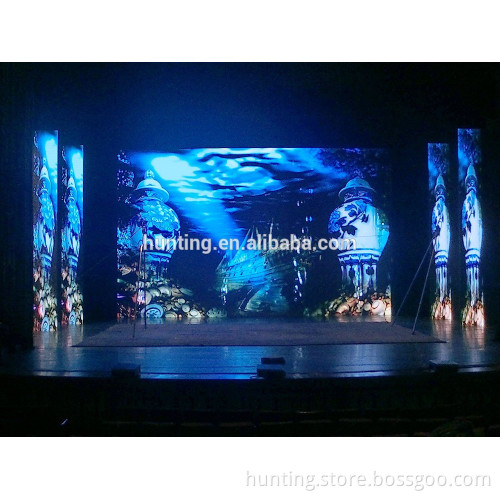

Screen effects:

Screen Size can do as your requirement. Package: 1. fixed installation: by plywood box package 2. Rental LED display: By flight case, move easily

Trade terms: 1. FOB/EXW/CIF etc 2. Delivery time: 15~45 days. Company profiles: SHENZHEN BESDLED CO.,LTD

1. SHENZHEN BESDLED CO.,LTD is LED products manufacturer, build in 1996, cover 20,000 m².
2. Fully automatic production lines, Advanced production equipment, Strong R&D Team.
3. Products have exported more than 100 countries, Such as Brazil,USA,Mexico,Canada,Germany etc.
4. Service before sale: technical support, design schemes; Training after order:software,operate,maintain.
5. Certificate: CE,FCC,UL,RoHS,CCC,ISO etc.
Our service goal
What you think is what we need to do!
What we promise is what we are fulfilling!
