Free oem 3D RGB Led Screen Digital Traffic Led Screen

Specifications p10 traffic led screen display

1,Waterproof design

2.18 years in led industry

3.Warranty 2 years

4.Life time 10 year

Free oem 3D RGB Led Screen Digital Traffic Led Screen     Product Description

Model:BESD-OFP10
Pixel pitch	10mm	Module size	160x160mm
Pixel configuration	1R1G1B	Module density	16x16dots
View angel	120°/90°	Pixel density	10,000dots/m2
LED encapsulation	DIP346	Refresh Rate	≥480Hz or ≥4000Hz
Driving Method	1/4 scan,  constant current	Max power consumption	850w/m2
Brightness	>8000nit	Type Power consumption	400 w/m2
Working voltage	AC110/220V	Working temp	to +60°C
Best viewing distance	10m	Working Humidity	10%~90%
LED parameters	R: 625nm±5.0nm;  IV: 400-500mcd	MTBF	>5,000hours
	G: 525nm±2.5nm;  IV: 1,800-2,200mcd	Gray level	65536
	B: 470nm±2.5nm;  IV:350-450mcd	Lifespan	>100,000hours
Image processing	Video denoising, rapid motion compensation, edge sharpening, edge smoothing,  color coordinate conversation&control , grey scale transformation etc
Brightness uniformity	Ratio of min pixel brightness / max pixel<0.9(When each color reaches its highest brightness)
Effective control distance	Cat-5<100M,Multi-mode fiber:<500M;Single-mode fiber<20Km
Color Temperature/contrast	Brightness and contrast of red, green and blue can be adjusted by software, 100 scales are available, color temperature is adjustable
Input signal	RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION
Control system	Sending card+Receiving card+ Hub card+DVI Card+PCTV Non-liner card+ Muti-funcational card(Optional)+ Video processor(Optional)+  Fiber Transmitter(Optional)

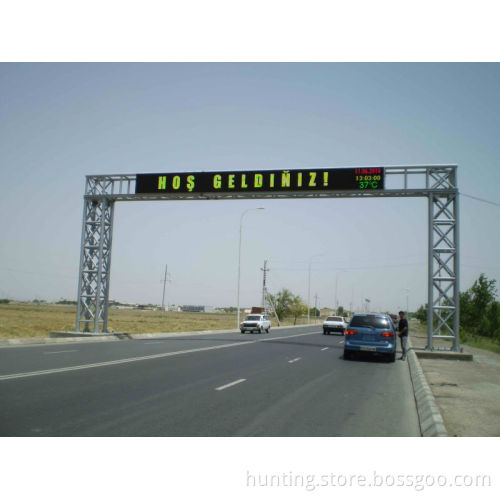

    1. P10 led mdoule (1R1G1B)          2. Outdoor waterproof cabinet      3. Back side view of the screen      4. Project pictures:      Packaging & Shipping Plywood box or Air fright box to make sure that the goods are protected well.       Our Services   Principles: Response in time, solve problem ASAP and ensure the use. Period: During warranty period, free of all maintenance charges; After Warranty, only charge the material cost. All the life time, Technology support is free.   Payment terms    1>. Payment term: T/T 40% deposit after order confirmed, the balance after goods ready before shipping.  2>. Lead time: normally in 15~20 days after deposit received.  3>. Sample policy: Samples are always availble for each model.      Samples can be ready in 3~7 days once payment is received.  4>. Shipping port: Shenzhen, China.  5>. Discounts: We offer discount for big quantity.    Delivery time 1.Delivery time: Accomplish manufacturing within 2~3 weeks after receiving the deposit. 2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.   Company Information  Company profile & Certificate Comparing with many of LED Manufactures, BESDLED owns the following advantages to be your best choice for long term cooperation partner. 1>, Fully automatic production lines 2>, Advanced production equipment            Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and  color tester, temperature and humidity programmable tester, luminance meter etc.  are equipped for our LED Product production. 3>, Many Certification approved to clear up the trade barriers.CE, FCC, UL, RoHS, CCC, ISO9001: 2000 etc are obtained. 4>, Strong R&D Team            BESDLED absorb many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service.  1). For all your inquires about us or our products, we will reply you in detail within 24 hours.  2). We have well-trained and professional sales & after-sale services persons who can speak Engligh fluently.  3). We offer OEM services. We Can print your own logo on product and packaging.  4). We have rich experienced R&D engineers and we have strong ability for ODM projects.                          Our company have joined yearly exhibition of below 1>. ISE, Netherland Exhibition 2>. ISA, USA Exhibition 3>. EXPO Music Fair, Brasil Exhibition 4>. Dubai Exhibition        Our Sales Area         FAQ 1>. What's your Package? Air freight case or cartoon box   2>. What's your delivery seaport? Usually Shenzhen   3>. What's your payment term? T/T 40% as per deposit and T/T 60% before shipping   4>. What's your lead time? " Normally 15-20 days after deposit received. "   5>. What's the warranty of your LED display? The full color LED display have at least 2 year warranty.   6>. How to place an order? Please send us your purchase order by email or call. Or you can ask us to send you a Proforma Invoice for your order.   7>. Can you arrange the transportation for us? Yes. We've got the strategic shipping partner and can arrange sea, air and courier transportation for you with the most competitive price.     We always stand behind our products and beside our customers!  If you are interested in our products, please click "contact supplier" or send email to us. We are ready to listen to you and at your service for 24hr all round the clock.      We are Shenzhen BESDLED Co., Ltd Wonderfull life! Brilliant show!
