ShenZhen Alibaba express new product xxx video china full color P6 stage led display screen

Specifications P6 indoor stage led display

1. High definition

2. High refresh rate

3. High quality

4.CE, RoHS, FCC, ISO9001

Product Description  Product  Features 1.SMD3-in-1 technology is used for indoor led display.
2.wide view angle:140°in horizontal and 140°in vertical.
3.special design and advanced SMT technology improves the heat disssipation.
4.with high refresh rate controller,guarantee that no scan line when taking photos.
5.regular shape and special shape can be designed.
6.easy for assembling and connection with the connector added.
7.high color uniformity and clear image can bring you a vivid audio visual effect.
8.both front access and rear access are available.
   wide application:used for meeting room,lobby of hotel.cinema,inside of shopping mall and
   station,airport,stidio and stadium.     P6 indoor full color led curtain parameter table

Model	BESD-IFP6
Pixel Pitch	6mm
Pixel configuration	1R1G1B
View angle	140°/140°
Pixel density	27,777dots/sqm
Module size	192*192mm
Module Resolution	32*32dots
LED encapsulation	SMD 3528
Refresh rates	>=800 HZ
Driving Method	1/8 scan , constant current
Max power consumption	750W/sqm
Brightness	>=2,000CD/sqm
Display Function	Graphics, Animation, and video
Working voltage	110V~±15% or 230V~±15%
Working temp	-20℃ to +60℃
Optimum viewing distance	>7m
Working Humidity	35% ~ 85%
LED parameters	R:625nm±5.0nm, IV:250-300mcd
	G:525nm±2.5nm,IV:800-1,000mcd
	B:470nm±2.5nm,IV:200-230mcd
MTBF	>5,000hous
Gray Level	RGB/8192/14bit
Life span	>100,000hours

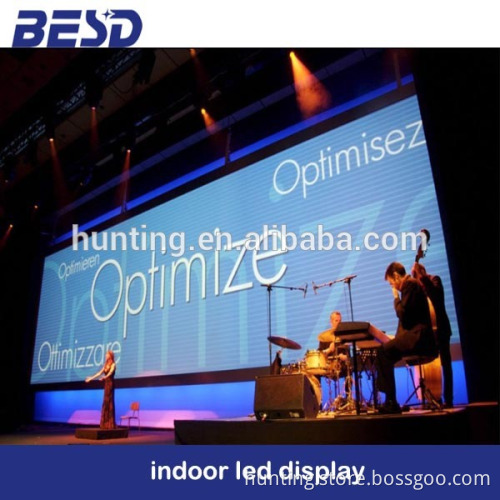

                                                                                      Concert stage background led display for P6 indoor led large cabinet and screen display pictures Packaging & Shipping     Our Services   1. Provide professional technical schemes for you for free.
2. Lifetime to provide training,including free installation and application of related technical guidance.
3. Obtained certifications: ISO9001:2008,CE,FCC,CCC,UL,RoHs,SGS (Special requirements for the certificate     we provide to apply for assistance).
4. Software upgrade for free.
5. 2 years warranty,lifetime maintenance.         Company Information   Factory profile:
BESDLED has 17 years experience of LED lamps encapsulation,
7 years of LED display screen, with complete special LED test lab, LED display R&D system, production system, QA, QC system.
BESDLED passed ISO9001:2000 in 2004, our products also passed CE, ROHS approval.
Our products have already exported to Europe, Asia, Africa and America and etc.   At BESDLED, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering.     Our company SHENZHEN BESDLED CO.,LTD is a professional LED display screen manufacturer. We have specialized in LED since 1996. We have a lot of advantages: 1. 17 years history, rich experience in quality control.
2. 13000sqm with 250 employees, big factory with reliable after-sales service.
3. LED encapsulation factory, control the quality of every single LED.
4. Automatic producing line for module, guarantee the delivery time.
5. Experienced technician for debugging and testing. 6. 2 years warranty with 0.6% free spare parts. 7. Provide technical support and training. 8. Long term cooperation and sharing.                     FAQ   1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.

1)It will use for what ?

2)where will you install it ?

3)full color or single color?

4)It's rental installation or fixed installation ?

For designing or further discussion, it is better to contact us with Skype, in case of any delays.


2. What kind of display we provide?
We have indoor/outdoor/led curtain/mobile LED /rental LED display
/LED stage/LED DanceFloor/Irregular LED display for you choose.


3. What about the lead time for order ?
Always: 15-20 working days


4.How about the warranty ?
We have 2years warranty and lifelong maintenance

5. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.


Warmly welcome to you to visit our company !
