Light weight P10 led curtain screen,P12.5 full color led curtain video,P16 led curtain display

Light weight P10 led curtain screen,P12.5 full color led curtain video,P16 led curtain display   1.Parameter table

Module No.	BESD-IFP10
Brigtness	> 1,500 nits
Pixel pitch	10mm
resolution of each panel	64dots x 96dots = 6144dots
Dimension	W640mm x L960mm
Screen area	Customized
Panel weight	9 Kg
Transparency	45%
Pixel type and configuration	SMD 3528
Protection level	IP43
Dot pixels per sqm	10,000dots/sqm
Operating temperature range	-20o to 60o
Viewing angle	140o/140o
Color temperature	6,500K
Coontrast ratio	1,000:1
Panel material	Aluminium
Minimum viewing distance	7 m
Color depth	16 bit
Greyscale(liner)levels	64k levels per color
Refresh rate	1,920 Hz
System type	Computer synchronous
Computer video frame rate	50/60 Hz
Power consumption	Max. 650W per square meter
Input voltage	AC 90~260V
Input power frequency	50~60 Hz
Lifetime(50% brightness)	>80,000 hours
Mounting system	Rear hanging,fix installation

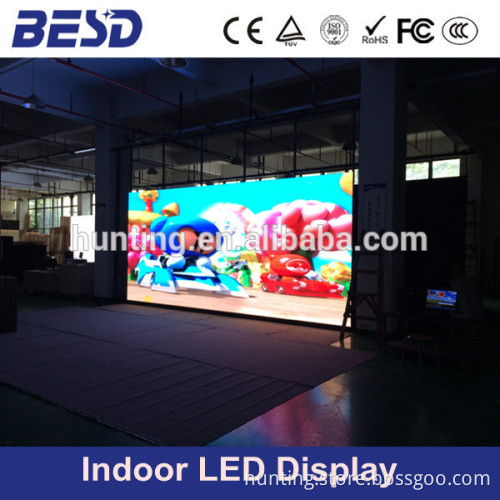

  2.Ref photo      3.curtain Series Features 1. Light, suitable for flow shows, convenient in transporting and jointing.  2. Nice appearance and secure.  3. Jointed correctly, could be dismounted by one person without tool  4. High transparency. Light, air and frost could easily cross through it.  5. Humanized operating interface with breakdown indicator lights.  6. High debugging brightness with 500-2000nit and no damage to gray scale, matched well with the debugging technology with nice image.

  Applications Stage design;Show & exhibitions; Entertainment venue;Company events;Club;Others;    Stable Control System   1).Stable control system guarantees the events work well.   2).Different signal sources input are acceptable,such as TV,HDTV,S Video,NTSC/PAL,DVI,VGA,SDI      and HD-SDI.We supply high definition Video Processor to realize the signal source transition.   3).Controller Cabinet is a protection for easy transportation for rental controller equipments.   4)Specially designed LED Electrical Control Cabinet,which realizes the power supply for rental events    anywhere.       Packaging-Flight case     Our service

1.Your inquiry related to our products or prices will be replied in 24hrs.

2.Well-trained and experienced staffs to answer all your enquires in fluent English .

3.OEM&ODM, any your customized screen we can help you to design and put into product.

4.Distributoer ship are offered for your unique design and some our current models .

5.Protection of your sales area, ideas of design and all your private information .

  Company info

Developing History:

From 1996 to 2010, SHENZHEN BESD LED CO.,LTD. Previous name Xinhongxiang Optoelectronics (shenzhen) Co.,Ltd, mainly involved in LED encapsulation and LED Display.,led lamps , led lights . Since 2010, owe to enlarge the company scale and build up self-owned brand, Rename to Shenzhen BESDLED Co.,LTD, business involved in indoor and outdoor LED Encapsulation, LED Display and LED Lighting Products.Comparing with many of LED Manufactures, BESDLED owns the following advantages to be your best choice for long term cooperation partner.

1, Fully automatic production lines

BESDLED owns the entire LED manufacturing line, encapsulate original Semiconductor to LED chip, then assemble to led displayand led lighting products.

2, Advanced production equipment

SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP led, Spectrum and Color Separation Machine, LED oven,Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. are equipped for our LED Product production.

3, Many Certification approved to clear up the trade barriers

CE, FCC, UL, RoHS, CCC,ISO9001:2000 etc are obtained.

4,Strong R&D Team

BESDLED absorbs many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service

  BESD Contact person Lenka Wang.
