shenzhen led display big screen for concert/ P10 indoor stage background and advertising led screen

  shenzhen led display  big screen for concert/ P10 indoor stage background and advertising led screen      1.Specification                                                                                                                   1,light weight,easy to install 2,vivid image 3,high transparency 4,good after-service     2.parameter table

Specification	P10
Item 1 ---LED Chip
Brand	Epistar ,Opto , Cree , Nichia
Country of Origin	Taiwan. United States. Japan
Span life	≥ 100,000 Hrs
Item 2--- Modules
Pixel Pitch	PH 10
LED configuration	SMD 3528(3 IN 1)
LED Composition	1R1G1B
Modules size	240  (L)  mm  *   320 (H) mm
Driving IC	MBI 5024/5041
Driving Method	Constant Current / (1/4 scan)
Item 3--- Cabinet
Cabinet size	480  (L)  mm  *   960  (H) mm
Cabinet Material	wire drawing aluminum cabinet
Installation Method	Fix / Hanging / Rental
Cabinet weight	9 Kg
Item 4--- Display screen
Brightness	≥ 1200cd/M2
Viewing Angle
Refresh Rate	≥800 Hz
Fresh Requency	≥60Hz
Input Voltage	AC220V/50Hz or AC110V/60Hz
Power Consumption	Max.:450 W/M2   Average:120W/M2
Front and Back protective Grade
Signal  Output	HDMI DVI VGA RGBHV PbPr (HDTV)
Signal Connection	Video  TB SDI
Controlling System	Linsn/ Colorlight / Nova/ DB Start …
Operating System	Windows98/me/2000/NT/XP Window7 ,Vistar

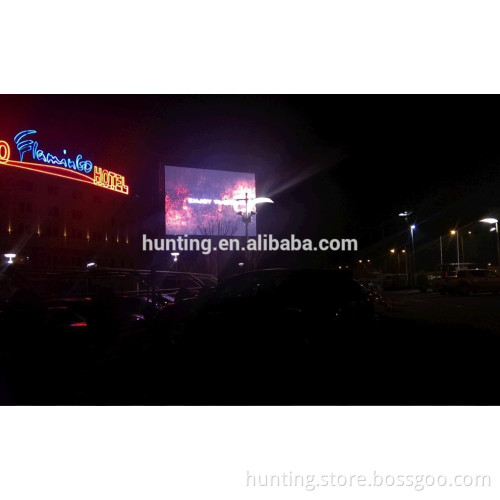

    3.Mechanical Design                                                                                                          1).Cabinet mechanical design is easy for rental companies to assemble and dismantle the LED display during the events. 2).No conjunction lines between cabinets,the design on the top of the cabinets enables the user to make fine-adjustment. 3).Light weight and thin cabinet design enable fast and convenient assembling and dismantling. 4).Rental cabinets support several special connection modes,such as column style,open style,stage atmosphere decoration style etc. 5).There are locks on the sides of the cabinets,which makes assmebling work much easier.   Mesh curtain,high transparancy,light can easily through it.   with fast locks/hanging pole for easy install. aluminium material     4.Rental LED Display structure                                                                          5.Project photo                                                                                                     6.Package:Flight case,Easy to move.                                                               7.company information                                                                                                         BESD christian li.
