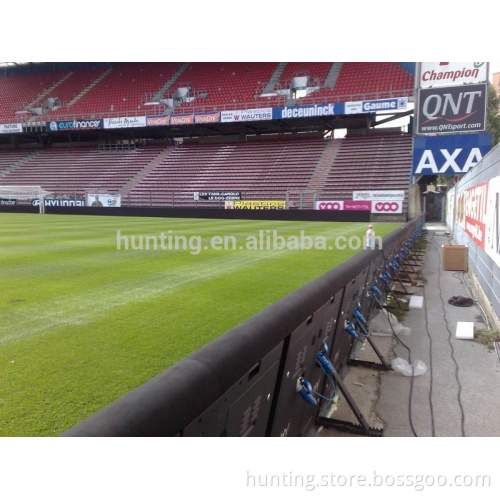

Professional Perimeter Stadium LED display

Shenzhen BESDLED Stadium P10/P16/P20 LED display screen:                            Stadium perimeter led display screen Specifications:

Module:BESD-OFP20		LED Type	DIP346/DIP546
Pixel Pitch	20mm	Refresh frequency	>3,000Hz
Module Size	320x160mm 320x320mm	View Angle	120 /90
Module resolution	16x8pixel, 16x16pixel	Working Environment	Temp:-20°C~60°C, Humidity:10%~90%
Dot density	2,500pixel/sq. m	Working Voltage	AC:100V~120V AC:220~240V
Pixel configuration	1R1G1B/ 2R1G1B	Lifetime	100,000Hours
The best view distance	>18m	Gray Scale	14bit/color
Cabinet dimension	1280mmx960mm(Optional)	Color Display	1.07Billion
Cabinet resolution	64X48	Brightness	≥6500nit
Cabinet weight	58KG/sq. m	MITBF	0.00001
Drive mode	Constant current,Static Scan	IP	IP65
Max Power Consumption	850W/sq. m	Warranty	2-5 years
LED Parameter	R:d(625-630nm) R:IV(400-450mcd)	G:d(522.5-525nm) G:IV(1800-2200mcd)	B:d(467.5-470nm) B:IV(350-400mcd)
Image adjustment	Brightness, contrast, tone, color range etc
Brightness uniformity	Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness)
Effective control distance	Cat 5<100M / Multi-mode fiber:<500M / Single-mode fiber<20Km
Color Temperature/contrast	Brightness and contrast of red, green and blue can be adjusted by software,100 scales are available, color temperature is adjustable
Input signal	RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION
Control system	Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional)

                                                                  Package:     SHENZHEN BESDLED CO.,LTD:                                                                               With the top quality and best service, BESD hope to be your longer & reliant led display supplier:   * Professionally Focus on LED display since 1996; * Successively obtained CE,FCC,CCC,UL,ROHS,ISO certifications; * Customized design & Good service in time and on time; * Training after order & Installation/Debugging; * Longer warranty up to 2 years, lifetime maintenance;     Overlook of our factory:                                                                                                   Our service:                                                                                                                   1)Training after order After the order is placed, a processional training will be offered, including software use, operate safety, maintain equipment 2) Installation and debugging BESD could send professionals to conduct on site installation and debugging in strict accordance with the requirements of the schemes and original manual. 3) Warranty Warranty: 2 years warranty, lifetime maintenance Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates. 4) Maintenance Maintenance principles: response in time, solve problems asap and ensure the use. Maintenance period: In the maintenance period of the led display body, free of all maintenance charges After maintenance period, only charge the material cost and labor cost.
