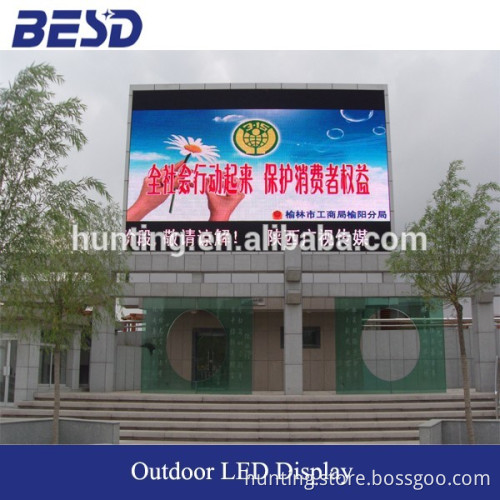

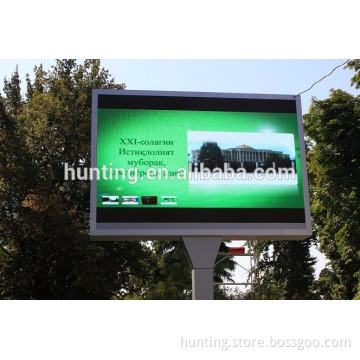

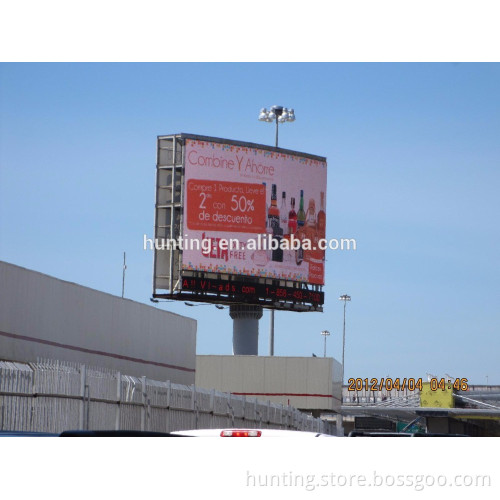

new tecnology big outdoor advertising screen used p20 led diaplay full color made in china BESD LED

Part Number

HERO-ICS-600P18.75

Resolution

16(H)×8(V)

Pixel Pitch

20mm

LED Configuration

2R1G1B 1-BY-1 DIP

Pixel Density

2,500 pixels/ m2

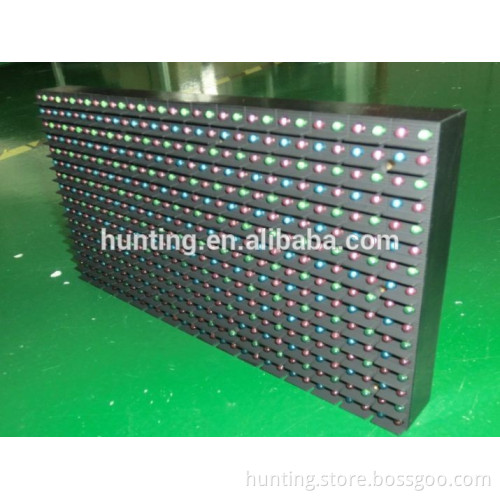

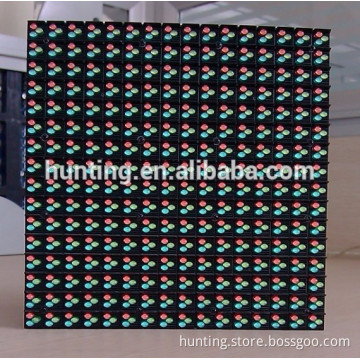

Module Size

320×160mm

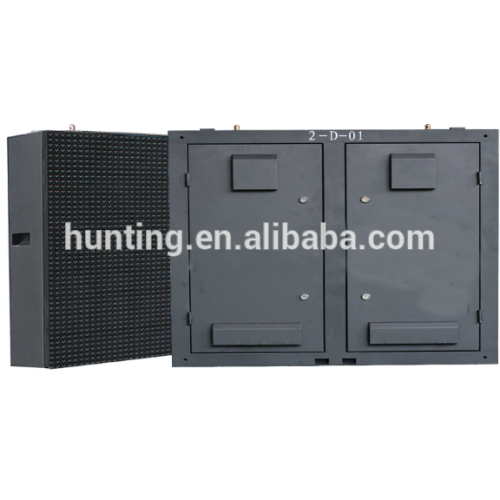

Cabinet Size

1280×960mm, 960×960mm, etc.

Driving IC

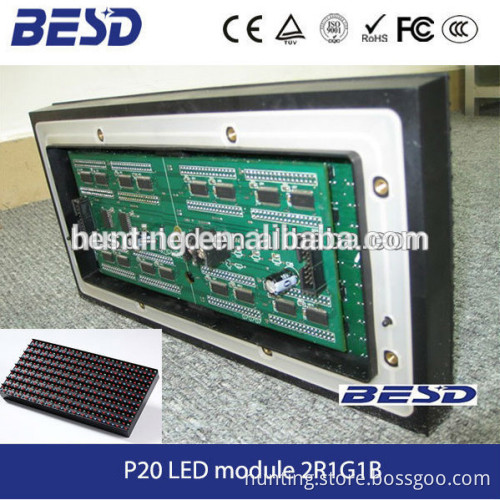

MBI5026    led & IC mounted to 2 PCBs design

Driving Method

Static State, Constant Current

Weight

58KG/sq.m.

Mechanical Ratings

Hanging Weight Support

2T

Surface Flatness

Gap<0.5mm

Optical Ratings

Brightness

>6,500cd/ m2

View Angle

140°/90°

Gray Scale

8bits input, correction with 14bits

Display COLOR

16.7M

Brightness Adjustment

0~100% 10 level

Power Supply

Operation Power

90~260V 50~60Hz

Max. Power Consumption

800W/ m2

Average Power Consumption

260W/ m2

Control System

Control Mode

Synchronous display with control PC by DVI

Frame Update Frequency

60~85Hz

Screen Refresh Frequency

300~1000Hz

Gamma Correction

-5.0~+5.0

Support Input

Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance

Ethernet cable<120m or Fiber Optic<10Km

Support VGA Mode

1024×768, 1280×1024, 1600×1200, 1920×1280

Brightness Correction

Pixel, Module, Cabinet

Environmental

Operating Temperature

-20°~+60°

Operating Humidity

10~95% RH

Operating Life

100,000hours

MTBF

5000hours

Protection Level

IP65

Out of Control Rate

<0.02%
