P5 full color Ourdoor tv panel P2 P2.5 P3 P4 P5 P6 led video wall / Outdoor full color P6 led display/ P6 Outdoor led panel

P5 full color Ourdoor tv panel P2 P2.5 P3 P4 P5 P6 led video wall / Outdoor full color P6 led display/ P6 Outdoor led panel

Get Latest Price

Delivery Time:: 18 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Pixel Pitch	5mm
pixel Density	40000dots/sqm
Pixel Configuration	1R1GB(LED SMD 3528)

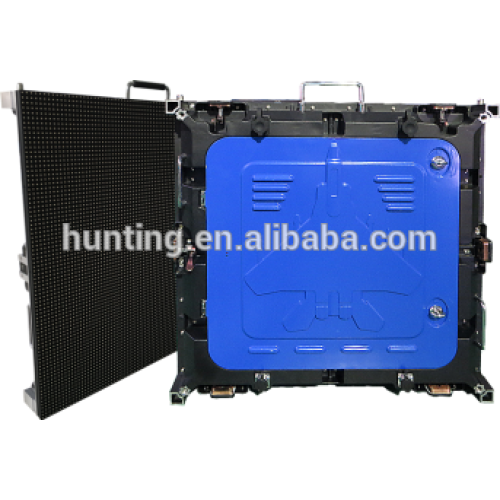

Size of LED Cabinet	480mm*480mm=0.2304m2
Cabinet Resolution	96*96dots
Cabinet thickness	60mm
Cabinet Weight	9.5kg
Max Power Consumption	1500w/m2
Average Power Consumption	750w/m2
Earth Leakge Current	<3mA
Drive Type	1/8 Scan Constant Current
Brightness	≥2500cd/ m2
Color Temperature	6500-9500K
Best Viewing Distance	4m-30m
Cray Scale	12bit
Color Scale	36bit
Refresh Rate	≥1000Hz
Best Viewing Angle	Horizontal 120°,Vertical 120°
Color Conformity	<4°
Control Mode	Synchronous control by computer
Conmmunication Distance	Cat5 network cable transmission:100meters;Multimode Optical
Malfunction Dot Rate	<1/10000
Average No Failure Time	>10000H
Life-Span	>10000H
Working Voltage	AC220V/50HZ,AC110V/60HZ optional
Working Temperature	-20°C- +60°C
Working Humidity	10%-90%
Input Signal	RF, S-Video, VGA, DVI, RGBHV, Composite, TV,HDMI, SDI, HDSDI etc.

Input Voltage

Input Voltage

Packaging & Shipping packing and shipping 1).Safety Packing by wooden box or flight case.

2).Shipping by sea or shipping by air or international express DHL,UPS FedEx

Our Services our service 1. Your inquiry related to our products or price will be replied in 24hrs 2. OEM&ODM,any your customized lightings we can help you to design and put into product 3. Distributoership are offered for your unique design and some our current models 4. Protection of your sales area,ideas of design and all your private information 5. Top Quality+Reasonable Price+Responsible After Service=Successful & Win Company Information SHENHEN BESDLED Co., LTD
