P10 Video Display Function and Outdoor Usage Led Display, smd outdoor p10 led display

BESD outdoor sign full color LED screen P10 LED display : Widely used for busy street,shopping mall,advertising. Night Club entrance ultra-gorgeous.

Model: BESD-OFP10
Pixel pitch	10mm	Module size	160×160mm 320×320mm
Pixel configuration	1R1G1B	Module resolution	16×16dots 16×16dots
View angle	120°/90°	Pixel density	10,000dots/m²
LED encapsulation	DIP346	Refresh rates	>1200Hz
Driving Method	1/4scan, constant current	Max power consumption	850w/m²
Brightness	>10000nits (cd/m²)	Average power consumption	300w/m²
Working voltage	AC110/220V	Working temp	-20°C to +60°C
Best viewing distance	>8M	Working humidity	10%~90%
LED parameters	R:625nm±5.0nm IV:400-500mcd	MTBF	>5,000 hours
	G:525nm±2.5nm IV:1,800-2,200mcd	Gray level	RGB/8192/14bit
	B:470nm±2.5nm IV:350-450mcd	Lifespan	>100,000 hours

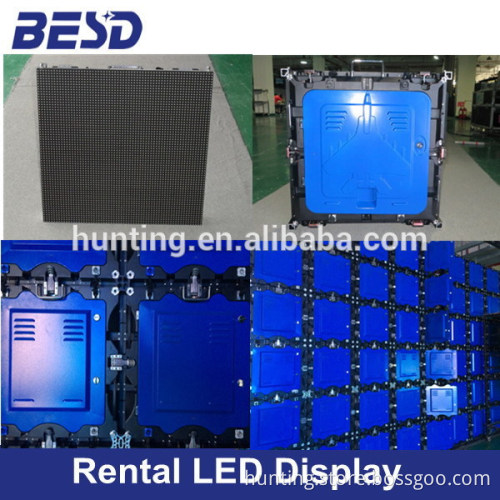

  Module pictures Cabinet pictures: two options: 1:) with air plug(the blue one), connect easily 2:) not included air plug, connect by hole Screen effects:       Screen size can design as below size; 1. 1.92x0.96m 2. 2.88x1.92m 3. 3.84x2.88m 4. 3.84x1.92m 5. 4.8x4.84m 6. ``````etc Size can do as your requirement.   Package: 1. fixed installation: by plywood box package 2. Rental LED display: By flight case, move easily   Trade terms: 1. FOB/EXW/CIF 2. 30% do as deposit   Company profiles: SHENZHEN BESDLED CO.,LTD

1. SHENZHEN BESDLED CO.,LTD is LED products manufacturer, build in 1996, cover 20,000 m².

2. Fully automatic production lines, Advanced production equipment, Strong R&D Team.

3. Products have exported more than 100 countries, Such as Brazil,USA,Mexico,Canada,Germany etc.

4. Service before sale: technical support, design schemes; Training after order:software,operate,maintain.

5. Certificate: CE,FCC,UL,RoHS,CCC,ISO etc.
