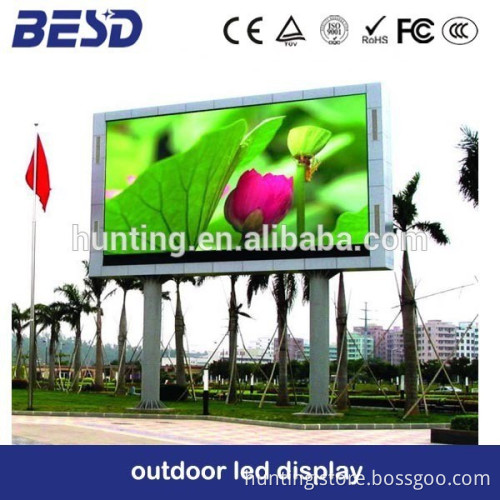

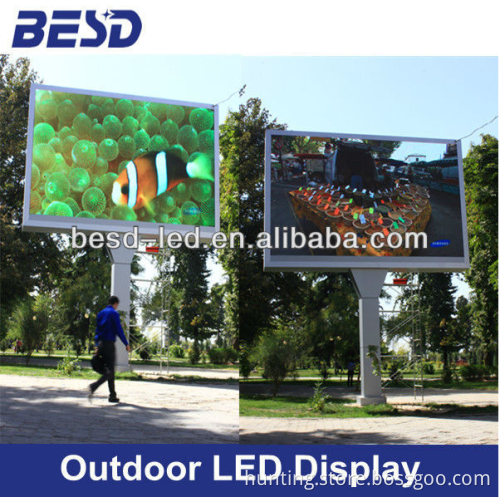

china xx video P16 outdoor led display supplier

Module:BESD-OFP16

LED Type

DIP346

Pixel Pitch

16mm

Refresh frequency

1,200Hz

Module Size

256x256mm

View Angle

120°/90°

Module resolution

16x16pixel

Working Environment

Temp:-20°C~60°C, Humidity:10%~90%

Dot density

3,906pixel/sq. m

Working Voltage

AC:100V~120V AC:220~240V

Pixel configuration

1R1G1B

Lifetime

100,000Hours

The best view distance

>14M

Gray Scale

14bit/color

Cabinet dimension

1024mmx1024mm(Optional)

Color Display

1.07Billion

Cabinet resolution

64X64

Brightness

≥8000nit

Cabinet weight

58KG/sq. m

MITBF

0.00001

Drive mode

Constant current, static Scan

IP

IP65

Max Power Consumption

1000W/sq. m

Warranty

2-5 years

LED Parameter

R:d(625-630nm) R:IV(400-450mcd)

G:d(522.5-525nm) G:IV(1800-2200mcd)

B:d(467.5-470nm) B:IV(350-400mcd)

Image adjustment

Brightness, contrast, tone, color range etc

Brightness uniformity

Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness)

Effective control distance

Cat 5<100M / Multi-mode fiber:<500M / Single-mode fiber<20Km

Color Temperature/contrast

Brightness and contrast of red, green and blue can be adjusted by software,100 scales are available, color temperature is adjustable

Input signal

RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION

Control system

Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional)

Developing History:

From 1996 to 2014, SHENZHEN BESD LED CO.,LTD.

Previous name Xinhongxiang Optoelectronics (shenzhen) Co.,Ltd, mainly involved in

LED encapsulation and LED Display.,led lamps , led lights .

Since 2014, owe to enlarge the company scale and build up self-owned brand, Rename

to Shenzhen BESDLED Co.,LTD, business involved in indoor and outdoor LED Encapsulation, LED Display and

LED Lighting Products.Comparing with many of LED Manufactures, BESDLED owns the following

advantages to be your best choice for long term cooperation partner.

1, Fully automatic production lines

BESDLED owns the entire LED manufacturing line, encapsulate original

Semiconductor to LED chip, then assemble to led displayand led lighting products.

2, Advanced production equipment

SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP led,

Spectrum and Color Separation Machine,

LED oven,Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and

humidity programmable tester, luminance meter etc. are equipped for our LED Product production.

3, Many Certification approved to clear up the trade barriers

CE, FCC, UL, RoHS, CCC,ISO9001:2000 etc are obtained.

4,Strong R&D Team

BESDLED absorbs many talents, with more than 500 staffs, and including

more than 100 engineers and technician,

which paves the way for R&D for new products and excellent sales service
