BESD- full color P6 led display/ led module/ led cabinet
  • BESD- full color P6 led display/ led module/ led cabinet
BESD- full color P6 led display/ led module/ led cabinet

BESD- full color P6 led display/ led module/ led cabinet

Delivery Time:
2 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
Product Description  Features of indoor P6 led display 1. SMD3-in-1 technology are used for indoor LED display. 2. Wide view angle: 140 in horizonal and 140 in vertical. 3. Special design and advanced SMT technology improves the heat dissipation 4. With high refresh rate controller, guarantee that no scan line when taking photos  5. Regular shape and special shape (such as curve, round) can be designed. 6. Easy for assembling and connecting with the connector added.  7. High color uniformity and clear image can bring you a vivid audio visual effect. 8. Both front access and rear access are avaiable.   Parameter of indoor P6 led display

Pixel pitch

6mm

Module size

192×192mm

Pixel configuration

1R1G1B

Module resolution

32×32dots

View angle

140°/140°

Pixel density

27,777dots/m²

LED encapsulation

SMD3528

Refresh rates

>800Hz

Driving Method

1/8scan,
constant current

Max power
consumption

700w/m²

Brightness

1200nits (cd/m²)

Average power
consumption

300w/m²

Working voltage

AC110/220V

Working temp

-20°C to +60°C

Best viewing distance

>4M

Working humidity

10%~90%

LED parameters

R:625nm±5.0nm
IV:400-500mcd

MTBF

>5,000 hours

G:525nm±2.5nm
IV:1,800-2,200mcd

Gray level

RGB/8192/14bit

B:470nm±2.5nm
IV:350-450mcd

Lifespan

>100,000 hours

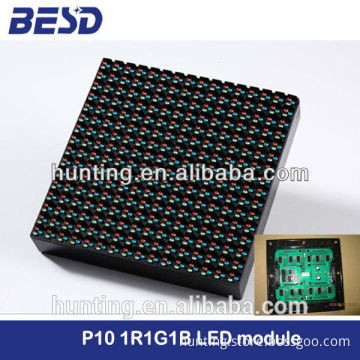

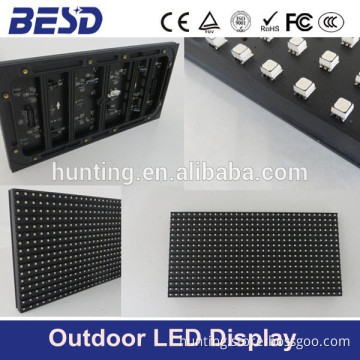

      Pictures of indoor P6 led module        Pictures of indoor P6 led cabinet (iron)    Packaging & Shipping   1. Payment: L/C, T/T, Western Union, PayPal; 40% deposits; 60% balance before delivery.
2. MOQ: 5 square meter/ square meters led display
3. Warranty : 48 full months warranty.     Company Information BESDLED has 17 years experience of LED lamps encapsulation,
7 years of LED display screen, with complete special LED test lab, LED display R&D system, production system, QA, QC system.
BESDLED passed ISO9001:2000 in 2004, our products also passed CE, ROHS approval.
Our products have already exported to Europe, Asia, Africa and America and etc.   FAQ   Q1. What kind of display we provide? We have indoor/ outdoor/ rental/ fixed led curtain/ mobile / stage Dance Floor display and Irregular LED display for you choose.   Q2. Do you have other indoor LED display series? Yes. We also provide P2.5,P3,P4,P5,P6,P7.62,P8,P10.   Q3. Do you have other outdoor series? Yes.We provide ourdoor LED display series: P8,P10,P12,P12.5,P20,P25.    Competitive price and high quality.   If you have any interest, contact me.
