BESD LED indoor outdoor full color led display controller

BESD LED indoor outdoor full color led display controller   Why choose us?    1>.Founded in 1996. We focus on LED industry for 18 years.     Production capacity: 5000 square meters per month for indoor and outdoor screen.   2>.We are a gold supplier at Alibaba.com for 7 years.       Below is our verified video: http://hunting.en.alibaba.com/company_profile/video_introdution.html   3>.When you type "led display" to search at ALIBABA.COM      The first position is occupied by us.   4>.We will attend Integrated Systems Europe, 10-12 February 2015, Amsterdam RAI, NL.     Our Stand 8-N227.  We are devoting to expand local market.   5>.CE, FCC, UL, RoHS, CCC, ISO9001: 2000 etc are obtained.   6>.Efficient sales service from 20 sale representatives.  Strong technical support from 10 service engineers.   7>.We have built long-term cooperation relationship with clients from 100 countries and areas.      1. Product Description

P5 outdoor display parameter
Model	BESD SMD Indoor Pixel 5mm	Max power consumption	700W/sq.m.
Pixel pitch	5mm	Average power consumption	350W/sq.m.
Module Resolution	32*32dots	Brightness	>2000nit
Module Size	160*160mm	Gray Level	RGB/8192/14bit
Pixel density	40,000dots/sq.m.	Refresh rates	≥1200Hz
Pixel configuration	1R1G1B	Driving Method	1/16scan, constant current
LED encapsulation	SMD 3528	Working Temperature	-20°C to +60°C
View Angle	140°/140°	Working Humidity	10%~90%
Optimum viewing distance	>5m	Working Voltage	AC110V/220V
LED parameter	R:625nm±5.0nm    IV:400-500mcd	MTBF	>5,000hours
	G:525nm±2.5nm    IV:1,800-2,200mcd	Life span	>100,000hours
	B:470nm±2.5nm    IV:350-450mcd

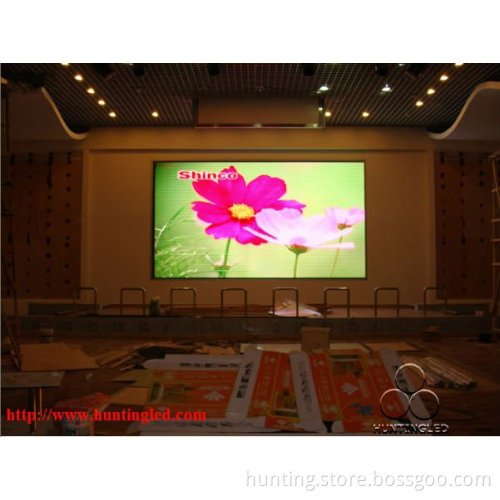

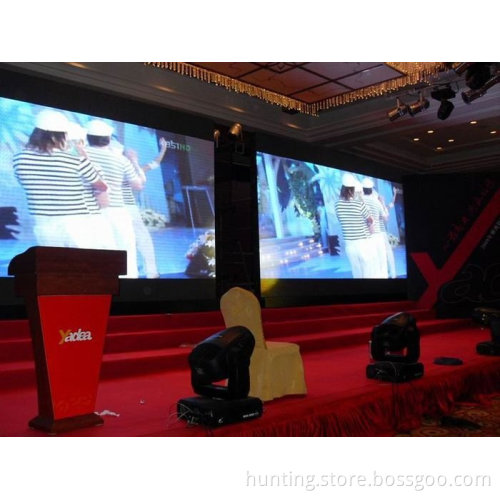

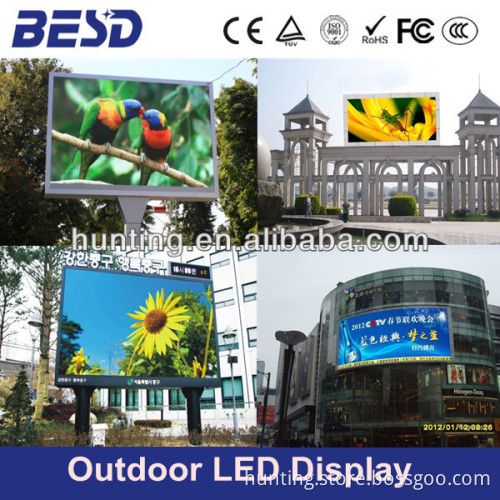

    2. Led module and led cabinet        3. Main Features   1>,SMD3-in-1  technology are used for indoor LED Display.  2>,Wide view angle:140 in horizonal and 140 in vertical. 3>,Special design and advanced SMT technology improves the heat dissipation.  4>,With high fresh rate Controller, guarantee that no scan line when taking photos. 5>,Regular shape and special shape (such as curve, round) can be designed.  6>,Easy for assembleing and connection with the connector added. 7>,High color uniformity and clear image can bring you a vivid audio visual effect. 8>,Both front access and rear access are available. 9>,Items:BESD-IFP3,BESD-IFP4,BESD-IFP5,BESD-IFP6,BESD-IFP7.62,BESD-IFP8,BESD-IFP10.     4. Project Pictures      5. Packaging & Shipping         6. Company profile & Certificate Comparing with many of LED Manufactures, BESDLED owns the following advantages to be your best choice for long term cooperation partner. 1>, Fully automatic production lines 2>, Advanced production equipment 3>, Many Certification approved to clear up the trade barriers.CE, FCC, UL, RoHS, CCC, ISO9001: 2000 etc are obtained. 4>, Strong R&D Team----BESDLED absorb many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service.         We are Shenzhen BESDLED Co., Ltd   We always stand behind our products and beside our customers!  Please do not hesitate to contact me:  KENNY. XIN  Kenny.xin AT besd-led.com
