Wholesales P4, P5, P6 high resolution led screen cabinet/die-casting aluminum led sign cabinet
- Delivery Time:
- 15 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Guangdong, China (Mainland) |
---|
Product Description
Product Description
Specifications Indoor P6 led display cabinet
1.Wholesales price
2.High brightness
3.indoor advertising
4.2 years warranty
Wholesales P4, P5, P6 high resolution led screen cabinet/die-casting aluminum led sign cabinet introduction: HD led display cabinet Features: 1.Perfect showing effect 2.High brightness 3.Long distance viewing 4.Long lifespan 5.CE,RoHS, FCC, ISO etc. certifications P6 led screen cabinet Technical Specifications:

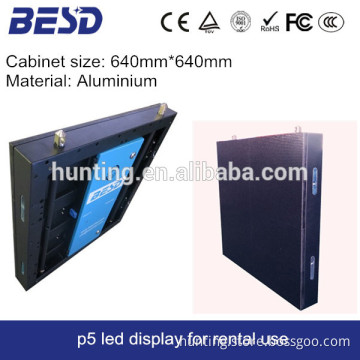

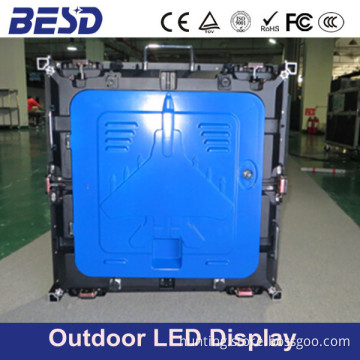

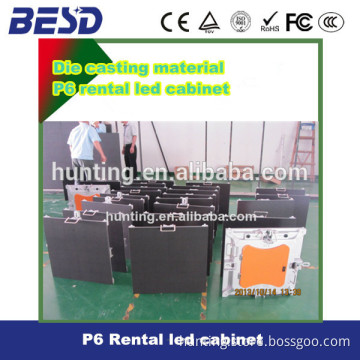

Pictures of P6 led screen cabinet:
Product features: 1. SMD3-in-1 technology is used for indoor LED Display 2. Wide view angle: 140 in horizontal and 140 in vertical. 3. Special design and advanced SMT technology improves the heat dissipation. 4, With high refresh rate controller, guarantee that no scan line when taking photos. 5. Regular shape and special shape(such as curve, round) can be designed. 6. Easy for assembling and connection with the connector added. 7, High color uniformity and clear image can bring you a vivid audio visual effect. 8. Both front access and rear access are available. 9. Items: BESD-IFP4, BESD-IFP5, BESD-IFP6, BESD-IFP7.62, BESD-IFP8, BESD-IFP10 10. Widely used in meeting room, lobby of hotel, cinema, shopping mall and station, airport, studio, stadium etc. Company introduction and certifications:
Our best quotation will be offered to you once got your enquiry. Thanks!
1.Wholesales price
2.High brightness
3.indoor advertising
4.2 years warranty
Wholesales P4, P5, P6 high resolution led screen cabinet/die-casting aluminum led sign cabinet introduction: HD led display cabinet Features: 1.Perfect showing effect 2.High brightness 3.Long distance viewing 4.Long lifespan 5.CE,RoHS, FCC, ISO etc. certifications P6 led screen cabinet Technical Specifications:
ITEMS | Indoor full color led screen | |
Module | Pixel Pitch | 6mm |
Pixel Density | 27,777dots/m2 | |
Led Lamp Type | SMD 3 IN 1 | |
Led encapsulation | SMD3528 | |
Led Configuration | 1R1B1G | |
Module Size | 192×192mm | |
Module Resolution | 32×32 | |
Scan Mode | 1/8 scan | |
Drive Mode | Constant Current | |
Cabinet | Cabinet Size | 768×768mm, 576mmx576mm |
Cabinet Resolution | 128×128 | |
Module Quantity | 32pcs | |
Cabinet Weight | 45kg/m2 | |
Display | Brightness | ≥2000cd/m2 |
Contrast Ratio | ≥2000:1 | |
Viewing Angles | 140°(H)/140°(V) | |
Min. Viewing Distance | 5m | |
Gray Scale | RGB/8192/14bits | |
Colors | 68.7 billion | |
Power Supply | Max Power Consumption | 850w/m2 |
Working Voltage | AC 90 to 260V,50 to 60Hz | |
Control System | Frame Changing Rate | 60 to 85Hz |
Refresh Rate | 400 to 2000Hz | |
Brightness Adjustment | 0 to 100% | |
Ganma Correction | (-0.5 to 5.0) | |
Color Temperature | 3000 to 9300K | |
Brightness Correction Mode | By Pixel,Module,Cabinet Correction | |
Data input Source | AV,S-Videom,VGI,DVI,HDMI,SDI,DP | |
Control Method | Synchronization with computer | |
Data Transmission Distance | 100m by UTP CAT5;500m by Multi Optic Fiber;10km by Single Optic Fiber | |
Operation Environment | Windows(2000,XP,Vista,7) | |
Reliability | Storage Temperature | (-40 to 85)centi degree |
Working Temperature | (-20 to 50)centi degree | |
Working Humidity | 10% to 90% | |
Lifespan | 100,000Hrs | |
MTBF | 5000Hrs | |
IP Rating | IP43 | |
Blind Spot Rate | ≤0.01% |
