Waterproof Anti-UV Led Cabinet RGB P16 Outdoor Led Display
  • Waterproof Anti-UV Led Cabinet RGB P16 Outdoor Led Display
  • Waterproof Anti-UV Led Cabinet RGB P16 Outdoor Led Display
Waterproof Anti-UV Led Cabinet RGB P16 Outdoor Led Display
Waterproof Anti-UV Led Cabinet RGB P16 Outdoor Led Display

Waterproof Anti-UV Led Cabinet RGB P16 Outdoor Led Display

Delivery Time:
5 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
    Waterproof Anti-UV  Led Cabinet RGB P16 Outdoor Led Display   1. Product Description     Waterproof Anti-UV  Led Cabinet RGB P16 Outdoor Led Display   Product features   1.High brightness DIP LED are used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly. 2.With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray. 3.Weatherproof design, completely outdoor use. 4.Easy for assembling and connection with tje connector added. 5.High color uniformity and clear image can bring you a vivid audio visual effect. 6.Both front and rear access are available. 7.The LED chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity. 8.Use the same level of red green and blue led chips, which makes the image display of whole led display more excellent and uniform. 9.The maintenance of pixel and single led has been realized. 10.Good quality raw material, accrate technique and careful inspection insures the high quality of led display. 11.The shape and size can be made according to your requrement.           Waterproof Anti-UV  Led Cabinet RGB P16 Outdoor Led Display Parameter table
Pixel pitch 16mm View Angle 120°/90°
Pixel configuration 2G1R1B LED encapsulation DIP 546
1R1G1B DIP 346
Module Resolution 16x8dots Module size 256x128mm
20x20dots 320x320mm
Pixeldensity 3,906dots/sqm Brightness >7000nit
Working Temp -20°C~+60°C Max power consumption 1000W/sqm
Working Humidity 10%~90% Average power consumption 350W/sqm
Working voltage AC110/220V Driving Method static,constant current
Refresh rates ≥3000Hz Optimum viewing distance >14m
MTBF >5,000hours LED parameter R:625nm±5.0nm,IV:400-450mcd
Gray level RGB/8192/14bit G:525nm±2.5nm,IV:1,800-2,200mcd
Life span >100,000hours B:470nm±2.5nm,IV:350-450mcd
Blind sport rate <0.00001 Display Function Graphic,Animation,and Video
Warranty period 2 ~5 years Usage Outdoor fixed/rental
Signal sources input DVI,VGA,SDI,HD-SDI,TV,HDTV,NTSC/PAL,S Video,etc
Wide Application building,shopping mall,cinema,meeting room,train station,plaza,street etc

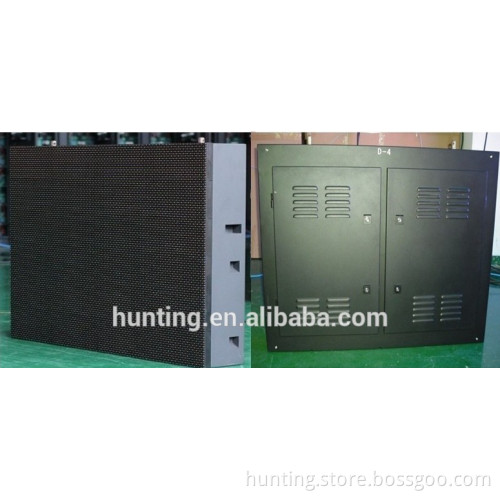

          Waterproof Anti-UV  Led Cabinet RGB P16 Outdoor Led Display Module (256x128dots) pictures               Waterproof Anti-UV  Led Cabinet RGB P16 Outdoor Led Display Cabinet pictures             Waterproof Anti-UV  Led Cabinet RGB P16 Outdoor Led Display Display pictures       2. Control system   Control system Connection Diagram   Control system: Sending card + Receiving card + Hub card + DVI Card + PCTV Non-liner card + Muti-funcational card(Optional) +Video processor(Optional) + Fiber Transmitter(Optional)   Effect control distance:  Cat-5<100M,Multi-mode fiber:<500M,Single-mode fiber<20Km       3. Installation Type     4. Packaging&Shipping   Plywood/Flinght case packing (2-5 Pieces per case)     5. Our Services   I. Aboves are regular, special can be specially designed. II. Free warranty for two years, each additional pay 4% a year. IIV. For life to provide free installation and application of related technical guidance. IV. Obtained certifications: ISO9001:2008,CE,FCC,CCC,UL,RoHs,SGS (Special requirements for the certificate we provide to apply for assistance). V. Accept different payment terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash. VI. Software upgrade for free.   6. Company Information   Building and workshop     Cetifications     Exhibitions     7. FAQs   Q1: Do you have other indoor LED display series? A: Yes. We also provide 2.5,3,4,5,6,7.62,8,10. Q2:Do you have other outdoor series? A:Yes.We provide ourdoor LED display series: 8,10,12.5,20,25. Q3: I have special requiests? A: We will do our best to make the best solution for you. Q4: I want to know more? A: Contact us right now is the fastest way.
