hot sale Shenzhen indoor/outdoor P16 full color led screen dance floor
  • hot sale Shenzhen indoor/outdoor P16 full color led screen dance floor
  • hot sale Shenzhen indoor/outdoor P16 full color led screen dance floor
  • hot sale Shenzhen indoor/outdoor P16 full color led screen dance floor
  • hot sale Shenzhen indoor/outdoor P16 full color led screen dance floor
  • hot sale Shenzhen indoor/outdoor P16 full color led screen dance floor
hot sale Shenzhen indoor/outdoor P16 full color led screen dance floor
hot sale Shenzhen indoor/outdoor P16 full color led screen dance floor
hot sale Shenzhen indoor/outdoor P16 full color led screen dance floor
hot sale Shenzhen indoor/outdoor P16 full color led screen dance floor
hot sale Shenzhen indoor/outdoor P16 full color led screen dance floor

hot sale Shenzhen indoor/outdoor P16 full color led screen dance floor

Delivery Time:
5 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
Specifications Shenzhen P16 led screen dance floor

1.Full protection.

2.water-proof.

3.strong enough .

4.Great color performance

     hot sale Shenzhen indoor/outdoor P16 full color led screen dance floor   1. Product Description   Function   1.Completely waterproof, can be used for both indoor and outdoor. 2.With tempered galss as the cover, strong enough, can dance on it and lay car on it. 3.Special module design, no  cabinet, can be assembled to any size you want. 4.Easy for assembling  5.With vivid audio visual effect. 6.Super thin module design 7.Good quality raw material, accrate technique and careful inspection insures the high quality of led display. 8.The shape and size can be made according to your requrement. 9. Rental use or fix installation   Parameter table
Pixel pitch 16mm View Angle 120°/90°
Pixel configuration 2G1R1B LED encapsulation DIP 546
1R1G1B DIP 346
Module Resolution 16x8dots Module size 256x128mm
20x20dots 320x320mm
Pixeldensity 3,906dots/sqm Brightness >7000nit
Working Temp -20°C~+60°C Max power consumption 1000W/sqm
Working Humidity 10%~90% Average power consumption 350W/sqm
Working voltage AC110/220V Driving Method static,constant current
Refresh rates ≥3000Hz Optimum viewing distance >14m
MTBF >5,000hours LED parameter R:625nm±5.0nm,IV:400-450mcd
Gray level RGB/8192/14bit G:525nm±2.5nm,IV:1,800-2,200mcd
Life span >100,000hours B:470nm±2.5nm,IV:350-450mcd
Blind sport rate <0.00001 Display Function Graphic,Animation,and Video
Warranty period 2 ~5 years Usage Outdoor fixed/rental
Signal sources input DVI,VGA,SDI,HD-SDI,TV,HDTV,NTSC/PAL,S Video,etc
Wide Application building,shopping mall,cinema,meeting room,train station,plaza,street etc

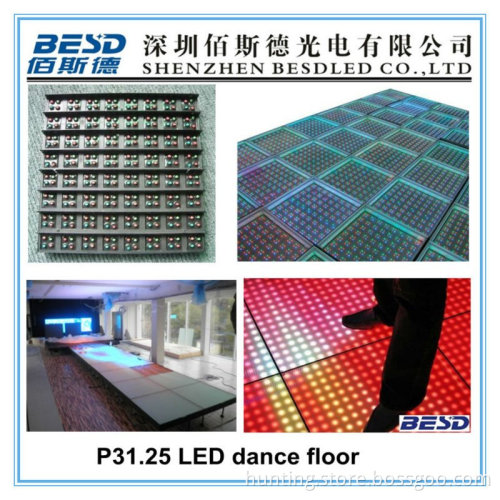

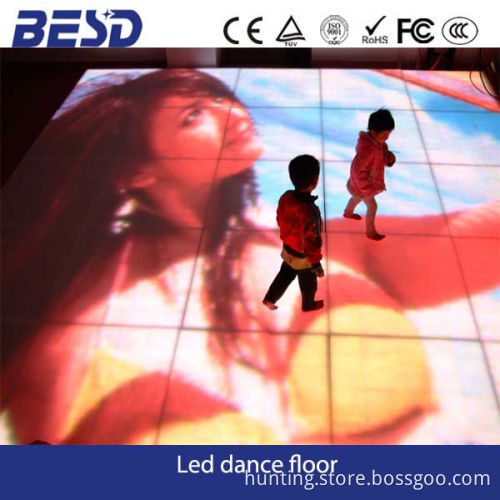

  Module          All product specifications are for reference only and subject to change without prior notice; Please contact sales for details;     dance floor pictures       2. Control system   Control system Connection Diagram   Control system: Sending card + Receiving card + Hub card + DVI Card + PCTV Non-liner card + Muti-funcational card(Optional) +Video processor(Optional) + Fiber Transmitter(Optional)   Effect control distance:  Cat-5<100M,Multi-mode fiber:<500M,Single-mode fiber<20Km         4. Packaging&Shipping   Plywood/Flinght case packing (2-5 Pieces per case)     5. Our Services   I. Aboves are regular, special can be specially designed. II. Free warranty for two years, each additional pay 4% a year. IIV. For life to provide free installation and application of related technical guidance. IV. Obtained certifications: ISO9001:2008,CE,FCC,CCC,UL,RoHs,SGS (Special requirements for the certificate we provide to apply for assistance). V. Accept different payment terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash. VI. Software upgrade for free.   6. Company Information   Building and workshop     Cetifications     Exhibitions     7. FAQs   Q1: Do you have other indoor LED display series? A: Yes. We also provide 2.5,3,4,5,6,7.62,8,10. Q2:Do you have other outdoor series? A:Yes.We provide ourdoor LED display series: 8,10,12.5,20,25. Q3: I have special requiests? A: We will do our best to make the best solution for you. Q4: I want to know more? A: Contact us right now is the fastest way.
