Rental use or fixed installation Slim and light weight indoor P16 full color led mesh curtain
  • Rental use or fixed installation Slim and light weight indoor P16 full color led mesh curtain
  • Rental use or fixed installation Slim and light weight indoor P16 full color led mesh curtain
  • Rental use or fixed installation Slim and light weight indoor P16 full color led mesh curtain
  • Rental use or fixed installation Slim and light weight indoor P16 full color led mesh curtain
  • Rental use or fixed installation Slim and light weight indoor P16 full color led mesh curtain
Rental use or fixed installation Slim and light weight indoor P16 full color led mesh curtain
Rental use or fixed installation Slim and light weight indoor P16 full color led mesh curtain
Rental use or fixed installation Slim and light weight indoor P16 full color led mesh curtain
Rental use or fixed installation Slim and light weight indoor P16 full color led mesh curtain
Rental use or fixed installation Slim and light weight indoor P16 full color led mesh curtain

Rental use or fixed installation Slim and light weight indoor P16 full color led mesh curtain

Delivery Time:
15 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
Specifications indoor r P16 full color led mesh curtain

1. High brightness

2. slim and easy use

3. light weight

4. Warranty 2 years

  Shenzhen Besd  Rental use or fixed installation Slim and light weight indoor P16 full color led mesh curtain   indoor: P10, P12.5, P16 etc outdoor: P31.25,P37.5,P40 etc      Rental use or fixed installation Slim and light weight indoor P16 full color led mesh curtain     1.product information       Product features of  indoor P16 full color led mesh curtain   1.High brightness DIP LED are used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly. 2.With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray. 3.Easy for assembling and connection with tje connector added. 5.High color uniformity and clear image can bring you a vivid audio visual effect. 6.The LED chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity. 7.Use the same level of red green and blue led chips, which makes the image display of whole led display more excellent and uniform. 8.The maintenance of pixel and single led has been realized. 9.Good quality raw material, accrate technique and careful inspection insures the high quality of led display. 10.The shape and size can be made according to your requrement. 11. Super slim and light weight       Parameter table of   indoor P16 full color led mesh curtain
Model  BESD-IFP16MM

 Pixel pitch

 16 (mm)

 Brightness

 >900 nit

 Panel dimensions (W×H×D)

 1280×1280(mm)

 Panel dimensions (W×H×D)

 51.2×51.2(inch)

 Panel material

 aluminum

 Weight

 7 (kg)

 Weight

 19.8 lbs

 Pixel configuration

 1R1G1B

 Module dimensions (W×H)

 256×256(mm)

 Module dimensions (W×H)

 10.24×10.24 (Inch)

 Pixel matrix per panel

 16×16pixels

 Pixel density

3906 pixels/sq.m.

 Refresh rate

 ≥1200 Hz

 Gray scale per color

 8192 level

 Colors

 1.07 Billion

 Viewing angle (H/V)

 140/140 (deg)

 Lifespan

 100,000 hours

 Power consumption (max/avg)

 400/170 (W/sq.m.)

 Input voltage (AC)

 110V ~ 240V

 Operating temperature

 -20°C ~+ 50°C

 Operating humidity

 10% ~ 90%

 Source compatibility (with video processor)

 AV, S-Video, VGA, DVI, HDMI, SDI, DP

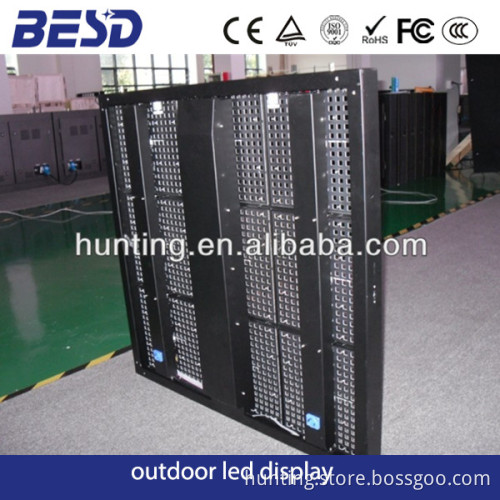

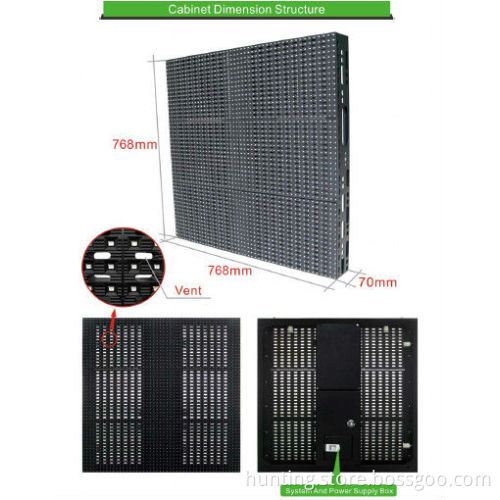

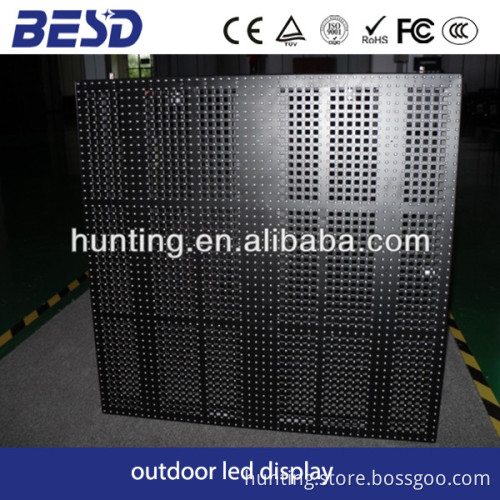

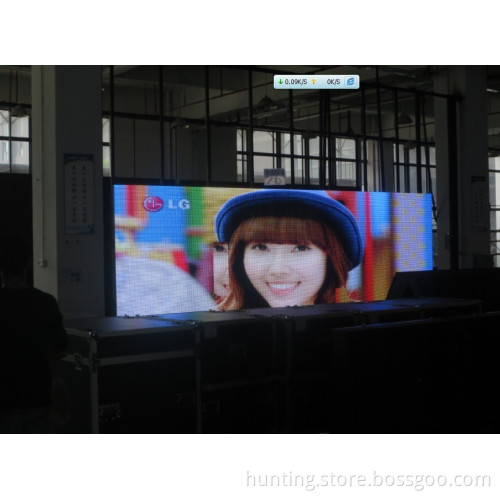

  Module (256x256 dots) pictures of  indoor P16 full color led mesh curtain         Cabinet pictures of   indoor P16 full color led mesh curtain     Display pictures of   indoor P16 full color led mesh curtain               2. Control system of   indoor P16 full color led mesh curtain   Control system Connection Diagram   Control system: Sending card + Receiving card + Hub card + DVI Card + PCTV Non-liner card + Muti-funcational card(Optional) +Video processor(Optional) + Fiber Transmitter(Optional)   Effect control distance:  Cat-5<100M,Multi-mode fiber:<500M,Single-mode fiber<20Km               3. Installation Type of   indoor P16 full color led mesh curtain             4. Packaging&Shipping of   indoor P16 full color led mesh curtain   Plywood/Flinght case packing (2-5 Pieces per case)         5. Our Services   I. Aboves are regular, special can be specially designed. II. Free warranty for two years, each additional pay 4% a year. IIV. For life to provide free installation and application of related technical guidance. IV. Obtained certifications: ISO9001:2008,CE,FCC,CCC,UL,RoHs,SGS (Special requirements for the certificate we provide to apply for assistance). V. Accept different payment terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash. VI. Software upgrade for free.   6. Company Information   Building and workshop     Cetifications     Exhibitions     7. FAQs   Q1: Do you have other indoor LED display series? A: Yes. We also provide 2.5,3,4,5,6,7.62,8,10. Q2:Do you have other outdoor series? A:Yes.We provide ourdoor LED display series: 8,10,12.5,20,25. Q3: I have special requiests? A: We will do our best to make the best solution for you. Q4: I want to know more? A: Contact us right now is the fastest way.
