2015 Alibaba hot sale full color indoor led curtain/P16 indoor see through led curtain mesh
  • 2015 Alibaba hot sale full color indoor led curtain/P16 indoor see through led curtain mesh
  • 2015 Alibaba hot sale full color indoor led curtain/P16 indoor see through led curtain mesh
  • 2015 Alibaba hot sale full color indoor led curtain/P16 indoor see through led curtain mesh
  • 2015 Alibaba hot sale full color indoor led curtain/P16 indoor see through led curtain mesh
  • 2015 Alibaba hot sale full color indoor led curtain/P16 indoor see through led curtain mesh
  • 2015 Alibaba hot sale full color indoor led curtain/P16 indoor see through led curtain mesh
2015 Alibaba hot sale full color indoor led curtain/P16 indoor see through led curtain mesh
2015 Alibaba hot sale full color indoor led curtain/P16 indoor see through led curtain mesh
2015 Alibaba hot sale full color indoor led curtain/P16 indoor see through led curtain mesh
2015 Alibaba hot sale full color indoor led curtain/P16 indoor see through led curtain mesh
2015 Alibaba hot sale full color indoor led curtain/P16 indoor see through led curtain mesh
2015 Alibaba hot sale full color indoor led curtain/P16 indoor see through led curtain mesh

2015 Alibaba hot sale full color indoor led curtain/P16 indoor see through led curtain mesh

Delivery Time:
7 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
2015 Alibaba hot sale full color indoor led curtain/P16 indoor see through led curtain mesh     With hight brightness, best showing effect and easy installation, Indoor P16 full color led module, display, led panel, led screen is widely used nowadays.    Cabinet of P16 indoor led curtain(768mm*768mm )
P16 indoor LED curtain technical parameter :
Model:BESD-IFP16
Pixel   pitch 16 mm Module size 256 x 256mm
Pixel   configuration 2R1G1B   ,1R1G1B Module density 16x8dots,20×20dots
View angle 120°/90° Pixel density 3,906dots/m2
LED encapsulation SMD3528 Refresh Rate ≥3000Hz
Driving   Method static,constant   current Max power   consumption 1000w/m2
Brightness >7000nit Average Power   consumption 350 w/m2
Cabinet size Normal 768 x 768mm or Cabinet material Aluminum alloy or
Designed   by requirements Iron, Steel
Cabinet thickness < 8cm or Cabinet weight < 10kg/cabinet or
Designed   by requirements Designed by require
Working   voltage AC110 / 220V Working temp -20°Cto +60°C
Best   viewing distance >14m Working humidity 10%~90%
LED parameters R:625nm±5.0nm MTBF >5,000hours
IV:400- 500mcd
G:525 nm±2.5nm; Gray Level RGB/8192/14bit
IV:1800 - 2200mcd
B:470nm±2.5nm; Lifespan >100,000hours
IV:350 - 450mcd
Image processing Video denoising, rapid motion compensation,   edge sharpening, edge smoothing,
color coordinate conversation   & control , grey scale transformation etc
Brightness   uniformity Ratio of min pixel brightness /max   pixel<0.9(When each color reaches its highest brightness)
Effective   control distance Cat-5<100M,Multi-mode   fiber:<500M;Single-mode fiber<20Km
Color Temperature/contrast Brightness and contrast of red, green and blue   can be adjusted by software,
100 scales are available, color   temperature is adjustable
Input   signal RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION
Control   system Sending card+Receiving card+Hub card+DVI   Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video   processor(Optional)+ Fiber Transmitter(Optional)

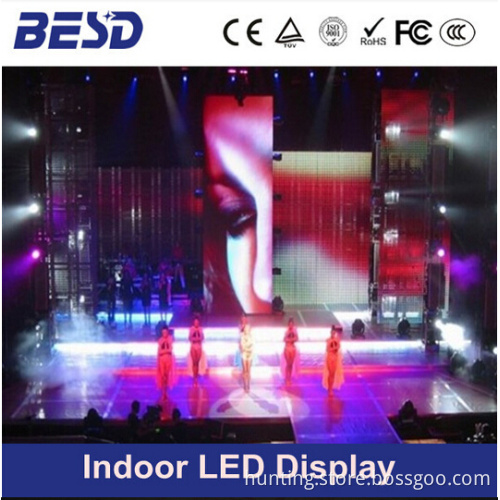

    P16 indoor LED curtain pictures:   Features of P16 indoor led curtain: 1. SMD3-in-1 technology is used for indoor LED Display. 2. Wide view angle: 140 in horizontal and 140 in vertical. 3. Special design and advanced SMT technology improves the heat dissipation. 4. With high refresh rate Controller, guarantee that no scan line when taking photos. 5. Regular shape and special shape ( such as curve, round ) can be designed. 6. Easy for assembling and connection with the connector added. 7. High color uniformity and clear image can bring you a vivid audio visual effect. 8. Both front access and rear access are available. 9. Items: BESD-IFP3, BESD-IFP4, BESD-IFP5, BESD-IFP6, BESD-IFP7.62, BESD-IFP8, BESD-IFP10.   control system of led curtain:   Packaging & Shipping safety packaging     Company Information

Developing History:

From 1996 to 2010, SHENZHEN BESD LED CO.,LTD.

Previous name Xinhongxiang Optoelectronics (shenzhen) Co.,Ltd, mainly involved in LED encapsulation and LED Display.,led lamps , led lights. Since 2010, owe to enlarge the company scale and build up self-owned brand, Rename to Shenzhen BESDLED Co., LTD, business involved in indoor and outdoor LED Encapsulation, LED Display and LED Lighting Products. Comparing with many of LED Manufactures, BESDLED owns the following advantages to be your best choice for long term cooperation partner.

1, Fully automatic production lines

BESDLED owns the entire LED manufacturing line, encapsulate original Semiconductor to LED chip, and then assemble to led display and led lighting products.

2, Advanced production equipment

SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP led, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. are equipped for our LED Product production.

3, Many Certification approved to clear up the trade barriers

CE, FCC, UL, RoHS, CCC, ISO9001:2000 etc are obtained.

4,Strong R&D Team

BESDLED absorbs many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service

      FAQ   1. How can i place an order?  Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.  1) It will use for what ?  2) where will you install it ?  3) full color or single color? 4) It's rental installation or fixed installation ?  For designing or further discussion, it is better to contact us with Skype, in case of any delays.    2. What kind of display we provide?  We have indoor led display/outdoor led screen/led curtain display/mobile LED display/rental LED display/LED stage screen/LED DanceFloor/Irregular LED display for you choose.    3. What about the lead time for order ?  Always: 15-20 working days   4.How about the warranty ?  We have 2years warranty and lifelong maintenance    5. What is your terms of delivery?  We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.       Our best quotation will be sent to you immediately once got the enquiry! Thanks.
