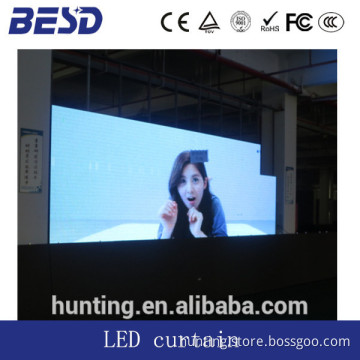

P10 Indoor Mesh Led Display Led Curtain Screen
  • P10 Indoor Mesh Led Display Led Curtain Screen
P10 Indoor Mesh Led Display Led Curtain Screen

P10 Indoor Mesh Led Display Led Curtain Screen

Delivery Time:
5 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
P10 Indoor Mesh  Led Display Led Curtain Screen
1 High Brightness showing video
2 Light weight installation easy 3 CE EMC CCC ROHS UL appval          Specifications   1. P10 indoor  led curtain, mesh led display
2.Epistar chip,pure color,meanwell 16026, MBI5020IC
3.Class-A material for chip mask
      P10 Indoor Mesh  Led Display Led Curtain Screen   price
Module Specification Item No. P10  SMD3528
Classification Full color
Pixel pitch 10mm
Size of module (mm*mm) 200*200mm
Pixel density 6400dots/m2
Pixel composition 1R1G1B
LED encapsulation SMD 3528
Resolution of module 16*16
Best viewing distance >8m
Best viewing angle (Horizontal/Vertical) 140°/140°
Max power consumption 350W/m2
AVG power consumption 150W/m2
Certificate  CE,ROHS,CCC,ISO9001
Driving method 1/4 Scan
Refresh rate ≥1200HZ
White balance brightness ≥1200nit
Working  temp  —20°C~60°C
Operating  humidity  10%--95%
IP grade IP43
Working voltage AC 220±10% or 110±10%
Grey scale 14 bits per color
Contrast Ratio 4000:1
Blind Spot Rate <0.000001
Brightness adjustment 256 levels of each color (RGB) can be adjusted manually
Control system Control system: Linsn / Zdec
 Source compatibility:CVBS,YC, YUV,RGB, DVI, SDI, HD-SDI, HDMI
Communication distance: Internet cable: ≤120m / Fiber cable: 1000m
Signal transfer mode: Pixels to pixels display synchronized

Picture    of modules

  P10 indoor led curtain display front side



   P10 indoor led curtain display  backside








Power supplier

GT-ENERGY;

super slim



GT-ENERGY 5V40A N200V5-A
GT-ENERGY 5V60A N300V5-A
GT-ENERGY5V80A J400V5-B 110V~220V Dial-up
GT-ENERGY 5V80A J400V5
GT-ENERGY 5V60A JTS300P 90~264V               automatic voltage control
GT-ENERGY 5V60A 5JTS300      with CE 3C UL certification

GT-ENERGY 5V60A N300V5-B 110~220V dial-up   with UL



Package Plywood case

For modules, cabinets for fix installation which will not move often





Flightcase

For rental cabinet which will move often





Delivery By ship Based on customer requires or situations
By air Based on customer requires or situations
By Express EMS; UPS; DHL; FEDEX; TNT etc.
                                                APPLICATION SHOW

LINSN



 Sending card:   TS801; TS802

 Receiving card: RV908 with HUB



 REMARK: This control system is for online control,               connected to computer which is of easy control.







Tx:

 Sending card:TX-T11D;TX-T11A (some kind of                                 independent player);TX-T11U;

 Receiving card: TX-R75



 REMARK:This control system can be online as well                      as offline, working alone without sending card under the condition of a gigabit NIC; both TX-T11A and TX-T11U can be connected to computer or laptop







Working principle of control system



Applications:



1.Comercial advertising LED display screen,



2.Stadium perimeter LED display screen,



3.Mobile trailer LED display screen for mobile media,



4.shopping mall LED display screen for logo showing,



5.bank&stock exchange LED display screen for rates showing,



6.Train & bus station LED display screen,air port LED display screen,



7.Telecommunication LED display screen system for information showing and instruction



Installation ways

Product advantage



1. Chip : Taiwan Epistar chip, pure color


2. Power:  meanwell if needed  .


3. Mask and frame material: First class original material for mask chip and frame.


4. Screw: Stainless steel.


5. Signal input: DVI, Composite video, RGE, VGA,S-Video.


6. Color correction: Gamma correction.


7. Image quality: Clear vivid image quality even in direct,full-on sunlight.


8. Brightness capacity: Long-term Brightness capacity throughout product lifetime.



9. Installation & Using: Easy and comprehensive instruction.



CE,Aging test,Factory & Product line

sales team



 Exhibiton



    Thanks and best wishes to you and your esteemed company, any inquiry will be warm welcome and soon replied within 24 hours!   With our high quality and competitive price, Sincerely wish we can have a good business beginning and establish reliable business relationship !
