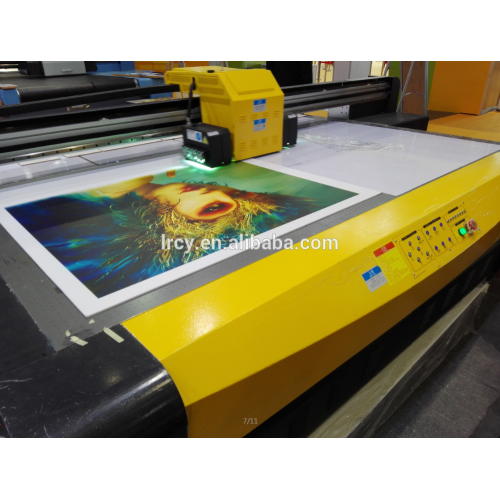

CE approved CMYK LC LM White Varnish cololrs uv ceramic tiles printer , digital uv flatbed printing machine

CMYK LC LM White Varnish cololrs uv printing machine for glass , digital glass printing machine         UV printer Feature 1. water colding system 2. Continuous Ink Supply System (CISS) 3. Printing speed about 10sqm/h 4. Can print 3D and embossing effect 5. Anti crash device to protect head 6.  Specilized for small family business  Specification of UV flatbed printer

Print size	2500mm*1300mm
Print head	2  print heads (3.5pl) -5 colors (CMYK+W)
Print height	Max.100MM
Bearing weight	Max.100KG
Print accuracy	1440*2880 dpi
Ink System	UV ink
Print speed	2 pass 12 m2/h, 4 pass 10 m2/h 6 pass 7m2/h, 8 pass 5m2/h, 12 pass 3m2/h
Automatic cleaning system	Positive pressure cleaning
Nozzle technology	Piezoelectric ink-jet printing
Ink Box:	Continuous ink/ 1000ml
Nozzle control	Nozzle temperature and voltage adjusted by software
Drying system	UV lamp
Color control	Conform to ICC , with curve and density adjustment functions
Image format	TIFF, JPEG, Postscript 3, EPS, PDF, etc.
Electrical Specifications	50Hz/60Hz, 200V-240V, Maximum 30Amp
Interface mode	USB 2.0 Interface
Rip software	Ultraprint V4.3 (Windows 2000,Windows XP Pro SP2)
Weight	1000KG
Equipment size	L3800*W2200*H1250mm
Packing	wooden case, fumigation

UV printer details UV PRINTER DETAILS

	Out side belt slide way   1. Super high precision 2.  Y-axis1440dpi photographic quality 3.  Quick and accurately adjust distance between print head and substrate
	Water colding LAMP    1.  Emitting valve surface temperature      constant 2. UV led lamp Configured with a tank system 3. get a high quality image output
	Double Dx5 print head   1.  Micro piezo 180 nozzles*8line 2.  Max print accuracy 2880dpi 3. One print head for CMYK (4 color ) 4. Another print head for W color printing
	Anti-collision device   1.  collision alignment device can effectively prevent the printer head hit product or friction to the product surface and the printing machine

    Our printer's advantages

1. No platemaking, fast printing, low cost, available for the output of various of software.
2. Changing color directly by the computer,changing color wherever, no need to pay the extra fees.
3. Could meet the requirements of fast getting the sample or products even in some seconds.
4. Could print at unit price, printing in mass production, going with template matching, time saving.
5. Full color photos, finish once, progressive color could meet the image results of quality.
6. Handled with fast, quality production, no need to get professional skills.
7. Computer operation, no need to depend on the stuff with a lot of upgrade space             Application Wide Application
Suitable for printing on all flat materials, such as ceramic tile, glass, metal, leather, crystal, wood, ABS, acrylic, PVC, etc. The printing theory is digital inkjet printing, directly print on objects without plate-making, easy and simple. Inkjet printing is widely used in many fields. Our UV flatbed Printer is widely used in Below industries: Decoration Industry, Glass Process Industry, Furniture Door, Signs Marking Industry, Exhibition Industry, Hard Board Package Industry,  Leather & Textile Industry etc.


E-mail: julia.xu01@ outlook.com Skype: julialongrun Mobile/whatsapp/wechat : +86 -18576686737
samlpe show
    E-mail: julia.xu01@ outlook.com Skype: julialongrun Mobile/whatsapp/wechat : +86 -18576686737     E-mail: julia.xu01@ outlook.com Skype: julialongrun Mobile/whatsapp/wechat : +86 -18576686737     E-mail: julia.xu01@ outlook.com Skype: julialongrun Mobile/whatsapp/wechat : +86 -18576686737     why choose us Why choose Longrun Printing

1. Professional
Longrun company started to specialize in the best quality uv flatbed printer since 2002, Over 14 years in this dustry, We have collected rich experience. We are the leader of this industry, So we can always offer constant reliable support for you.. 2. Cost performance
What price, what goods. A reliable and high quality printer is what our pursuit, we will provide the best quality printers for you. The Top quality machine is derived from high-quality parts, perfect machine structure design, and also our professional before-sales and after-sales support. 3. High reputation
We are the Golden supplier of Alibaba.com for 6 years. Our brand has always been getting high praise from all our clients, and our products are welcome worldwide, we have many distributors and sales agents around the world. We are looking forward to build a win-win situation with you. 4. Customer Service
1.two year trouble-free warranty; 2.Lifetime maintenance;   Customer visiting Warmly welcome you to visit our factory! looking forward to working with you!
