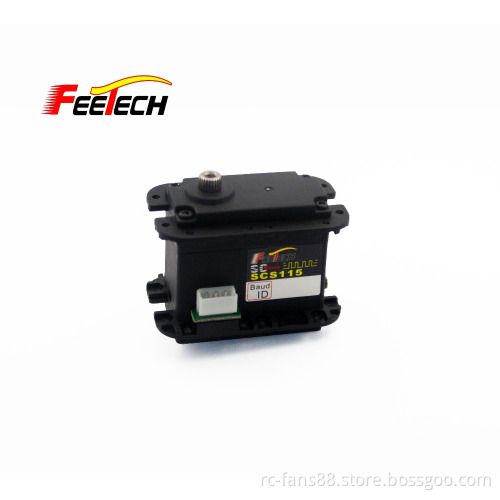

Feetech SCS115 Smart Control Digital robot servo like ROBOT UBTECH

Feetech SCS115 Smart Control Digital robot servo like ROBOT UBTECH

Get Latest Price

Delivery Time:: 5 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

FT-SCServo is meaning that Smart Control Servo was R&D and manufactured by FEETECH The advantage of using UART BUS servo:
It is simple and beautiful wiring,Less occupied port and More precise control
It gives the feedback of the data relevant to position, voltage temperature, load and speed Serial bus smart control servo fully integrated Motor, servo drive, Hardware Specifications

SKU	FT-SCS106	FT-SCS115
Dimensions	40.0X20.0X39mm	40.0X20.0X39mm
Weight	56g(1.98oz)	56g(1.98oz)
Gear Type(Ratio)	Plastic (217:1)	Metal(275:1)
Bus Interface	TTL Level Multi Drop	TTL Level Multi Drop
Position Sensor (Resolution)	Potentiometer (215°/1024)	Potentiometer (215°/1024)
Operating Angle	200°(Servo Mode)	200°(Servo Mode)
Control System	Bus Packet Communication	Bus Packet Communication
Protocol Type	Half duplex Asynchronous Serial Communication
ID	254 ID (0~253)	254 ID (0~253)
Communication Speed	38400bps ~ 1 Mbps	38400bps ~ 1 Mbps
Feedback	Position, Temperature, Load, Speed, Input Voltage
Motor Type	Carbon	Carbon
Bearing Type	2BB	2BB
Operating Voltage	6V~8.4V	6V~8.4V
Stall Torque(Kg.cm)	10(6V) 11.5(7.4V) 13(8.4V)	15(6V) 16.5(7.4V) 17(8.4V)
Stall Current(A) :	1.5A(7.4V)	1.5A(7.4)
Operating Speed(RPM)	80(6V) 90(7.4V) 100(8.4V)	55(6V) 65(7.4V) 73(8.4V)
Connector(Wire Length)	3P&5264 (15cm)	3P&5264 (15cm)
