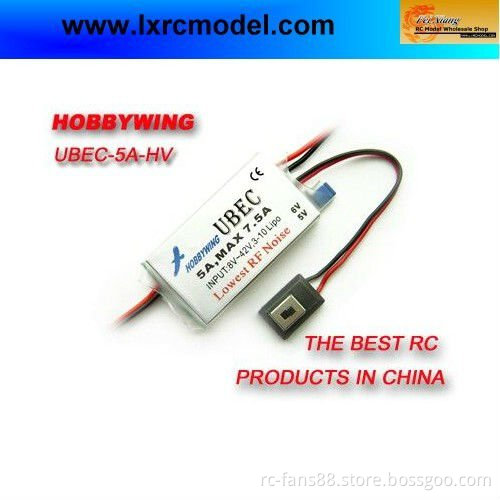

Hobby Wing UBEC-5A-HV (High Voltage)

Specifications 1.Hobby Wing UBEC-5A-HV (High Voltage)

2.Output Voltage: 5V or 6V

3.Continuous output current: 5 Amps

4.Burst output curren

Features -Designed with an advanced switch mode DC-DC regulator IC, the max efficiency of the chip is up to 92%. -The output current is very large. -With the output short-circuit protection function. -A metal shield covers almost all the electronic components, and a filter is attached with the output wires to significantly reduce the electromagnetic interference. -With ultra-wide input voltage from 8V-42V. -Safe power on with the polarity protection function. If the input polarity is not correct, the UBEC can't work, but it will not be damaged. What you need to do is just swapping the battery pack's polarity. -Shows the working status with an indicator (LED), lights when the output is in normal range. -It has a switch to turn on or turn off the output. - With a step-down voltage regulator of 0.7V down as an accessory (From 6.0V to 5.3V).     Product Details -Output Voltage: 5V or 6V (Changeable with an output-voltage select jumper ) -Continuous output current: 5 Amps -Burst output current: 7.5 Amps -Input: 8V-42V (3-10 cells lithium battery pack) -Quiescent current: 20mA -Size: 48mm*27mm*9mm (L*W*H) -Weight: 30g   Item Packing -Hobbing Wing UBEC-5A x 1
