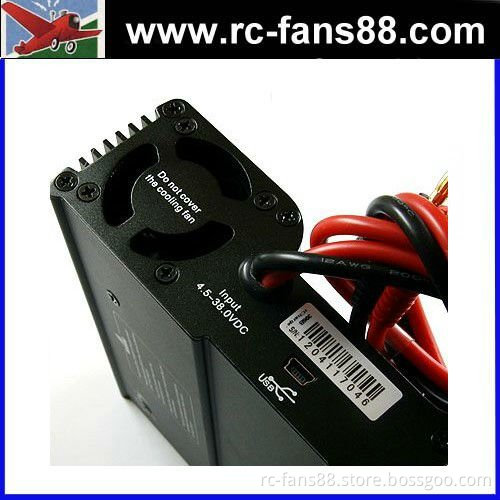

iCharger Multifunction battery 1-6S 30A 1000W Balance Charger/ Discharger 306B

Specifications 1.iCharger Balance Charger 306B Input voltage range:4.50-38.0VDC

2.iCharger Balance Charger 306B Charge current range:0.05-30A

Features -iCharger Multifunction battery 1-6S 30A 1000W Balance Charger/ Discharger 306B Product Details -Input voltage range: 4.50 – 38.0VDC
-Charge current range: 0.05 – 30.0A
-Discharge current range: 0.05 – 30.0A
-Maximum charge power capacity: 1000W @ input voltage 23V (500W @ input voltage 12V)
-Maximum discharge power capacity: 80W
-Maximum regenerative discharge power capacity: 1000W
-Maximum extern discharge power capacity: 1200W @ 40V/30A
-Current drain for balancing: <500mA
-Balance accuracy: <10mV
-Lithium (LiPo/LiIo/LiFe) battery cell count: 1 – 6 series (In non-balance mode, expand LiFe to 12s)
-NiCd/NiMH battery cell count: 1 – 25 series
-Pb battery cell count: 1 – 18 series (2 – 36V)
-Log Files storage: 16Mbit (31 hours)
-Battery setup memories: 10
-Intelligent temperature control: Yes
-PC Connect: USB port
-Weight: 750g
-Dimensions (L X W X D): 143X123X46mm 5.63”X4.84”X1.81” Item Packing -Charger X 1
-Alligator Clips Cable X 1
-Pair alligator clips for lead-acid battery  X 1
-Temperature sensor X 1
-USB cable X 1
-CD disk for instruction manual & software X 1

* The balance charging board is not provided with the charger, to be purchased separately.
