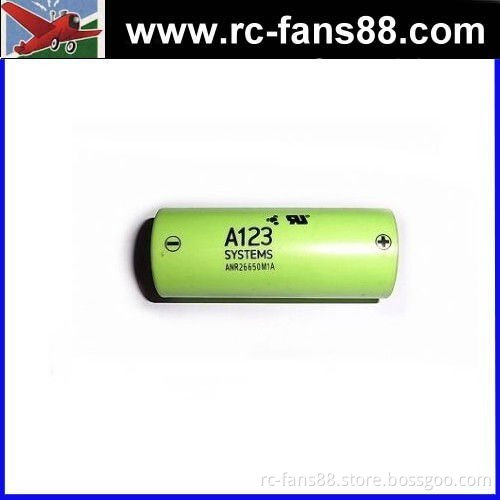

A123 2300mah Li-Ion Nano Phosphate Battery

Specifications 1.A123 2300mah Li-Ion Nano Phosphate Battery

2.Nominal voltage: 3.3V

3.Nominal capacity: 2.3Ah

4.Core cell weight: 70 gr

Features ANR26650M1A: The ANR26650M1A is A123Systems’ pioneering product, originally designed for a new class of power tools. Applicable to a wide variety of system designs and currently in mass production, the 26650 cell offers excellent price-performance. Power: Over 3000 W/kg and 5800 W/L Safety: Excellent abuse tolerance and environmentally friendly Life: Excellent calendar life, 10X cycle life vs. conventional lithium ion Our batteries use a new type of cell construction based on a dual plate tubular design optimized to deliver very high power with high efficiency. This new design does not use crimp seals and instead opts for a more advanced “all laser welded” construction optimized for very low humidity penetration over the life of the battery as well as stronger, thicker dual plate headers. Product Details -Single cell: -Nominal voltage: 3.3V -Nominal capacity: 2.3Ah -Core cell weight: 70 grams -Internal impedance: (1kHz AC) 8 mΩ typical -Typical fast charge current: 10A to 3.6V CCCV -70A continuous discharge  (equal 30C ) -120A, 10 sec pulse discharge  (equal 52C 10 sec) -Cycle life at 10C discharge, 100% DOD: over 1,000 cycles  -Recommended Charge :      3A to 3.6V CCCV 45min Item Packing - A123 2300mah Li-Ion Nano Phosphate Battery X 1
