LUX 32-bit Processor Flight Controller Support PPM or Serial RX For Multirotor Racing Quality Choice

LUX 32-bit Processor Flight Controller Support PPM or Serial RX For Multirotor Racing     Features
LUX 32-bit Processor Flight Controller Support PPM or Serial RX For Multirotor Racing 1. Highest quality components
2. Micro USB connector for programming
3. Provides high quality flight control using the powerful F3 processor along with top of the line hardware
4. Supports PPM or Serial RX (including Futaba, FrSky, S.BUS). A signal inverter is already included for S.BUS.
Please note: Baseflight firmware is not supported, and PWM input for individual channels is not supported.   Product Details

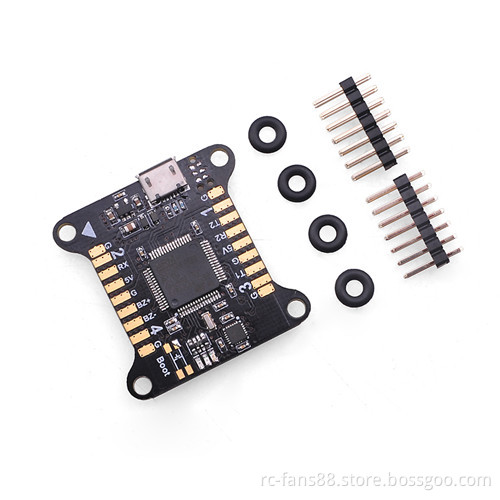

Item name: Lux Flight Controller
PCB: Have
Weight: 6g
Output: 5v 1.0A
Input: Up to 26v (6S lipo)
RX Voltage Output Selectable: 3v/5v
Gyro/accelerometer: MPU6500 MEMS
Processor: STM32F303RCT6(256kB flash) 32-bit
Mode for bootloader + software: STM32 DFU
Dimensions: 36x36x6mm (includes USB in height)
Mounting Holes: 30.5mm square to center of holes

Pin	Function
G	Ground
T3/R3/R1	UART3 TX, UART3 RX, UART1 RX
5v	5v Output
CUR	Current Sensor
BAT	Input voltage 6-26v (2-6S lipo)
RSSI	RSSI
LED	Digital LED Output
PPM/SRX	Bridge PPM for PPM. SRX for SBUS, SUMD, other serial connections

Pin	Function
G	Ground
2	PWM Output (Motor 2)
RX	RX Input (PPM,S.BUS, SUMD / 3.3-5v / GND)
5v	Receiver Voltage (3.3v-5v)
BZ+	Buzzer +
BZ-	Buzzer -
4	PWM Output (Motor 4)
1	PWM Output (Motor 1)
T1/T2/R2	UART1 TX, UART2 TX, UART2 RX
5v	5v output
3	PWM Output (Motor 3)
