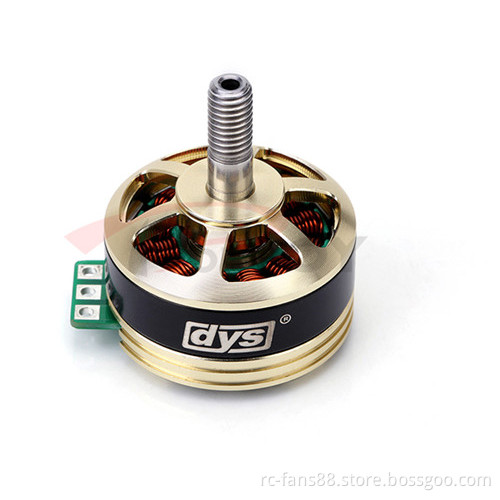

DYS SE2205 PRO 2550KV Motor race- edition with PCB for FPV Racing Quad-CW

DYS SE2205 PRO 2550KV Motor race- edition with PCB for FPV Racing Quad-CW   Features
*New design with imported NMB bearing
*N52 magnet and 0.2mm lamination
*Powerful with 1.1kg thrust to work with BN5045 Prop
*Hollow shaft with screw to fix the shaft
*Special design for the FPV racer champions.   Product Details
KV..2300
Configu ration...NP
Stator Diameter...22.0mm
Stator Length...5.0mm
Shaft Diameter...3.0mm
Motor Dimensions(Dia.*Len)...Φ27.7×19.0mm
Weight (g)...30g
No.of Cells(Lipo)...3-5S
Max Continuous current(A)...26.8A
Max Continuous Power(W)...428.8W
Internal resistance...0.06
Item Packing
7
Detailed Images
