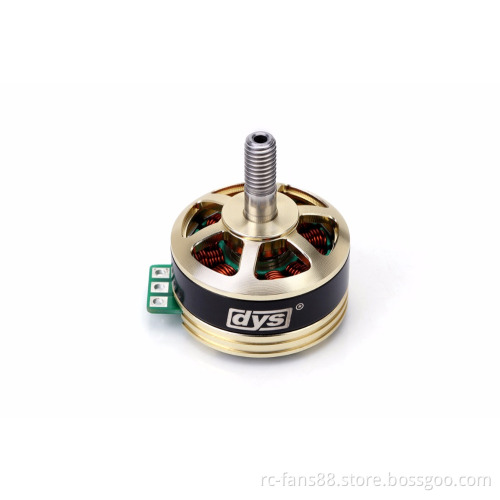

DYS Multi-Rotor Brushless Motor FPV Racing Motor SE2205 PRO 2300KV

Features   DYS Multi-Rotor Brushless Motor FPV Racing Motor SE2205 PRO 2300KV CW   Product Details   Item name: SE2205 PRO KV: 2300KV/2550KV Pull:1070g/1020g Motor Size:Φ27.7×19 Battery: 3-5S LipoWeight: 29.34g  *New design with imported NMB bearing *N52 magnet and 0.2mm lamination
*Powerful with 1.1kg thrust to work with BN5045 Prop
*Hollow shaft with screw to fix the shaft
*Special design for the FPV racer champions.Specifications:
KV..............................................................................................................2300
Configu ration....................................................................................NP
Stator Diameter....................................................................................22.0mm
Stator Length..........................................................................................5.0mm
Shaft Diameter.......................................................................................3.0mm
Motor Dimensions(Dia.*Len)...............................................Φ27.7×19.0mm
Weight (g)...................................................................................................30g
No.of Cells(Lipo).....................................................................................3-5S
Max Continuous current(A)............................................................26.8A
Max Continuous Power(W)...........................................................428.8W
Internal resistance..............................................................................0.06Specifications:
KV..............................................................................................................2550
Configu ration....................................................................................NP
Stator Diameter....................................................................................22.0mm
Stator Length..........................................................................................5.0mm
Shaft Diameter.......................................................................................3.0mm
Motor Dimensions(Dia.*Len)...............................................Φ27.7×19.0mm
Weight (g)...................................................................................................30g
No.of Cells(Lipo).....................................................................................3-5S
Max Continuous current(A)............................................................27.8A
Max Continuous Power(W)...........................................................411.4W
Internal resistance..............................................................................0.08   Item Packing      DYS Multi-Rotor Brushless Motor FPV Racing Motor SE2205 PRO 2300KV CW
