Hobbywing XRotor 2205 2300KV Multicopter Outrunner Brushless Motor motor racing games

Features     Super Thrust
The maximum thrust of up to 1.25KG provides sufficient power for FAV drone(s).
Excellent Product Design
1,Stator, rotor and shaft made of high-strength aluminum alloy greatly improve the shock resistance of the motor.
2,Concave anti-skid teeth combined with locknut and special internal circlip (or snap ring) effectively
prevent rotor from loosing or slipping and enhance the reliability of the motor.
3,Neat winding with low resistance guarantees the balanced current of the motor.
4,Eight-bladed centrifugal fan reduces operating temperature of the motor; clear rotation direction mark
on the motor case helps installation.
  Low Vibration & Nois
The precisely balanced rotor guarantees users low
vibration & noise during the motor’s high-speed rotation.

Top Quality Components

-Special 200 o Cheat-resistant windings (after vacuum dip coating treatment) can stand high,
surge current.
-N54 super magnets guarantee high torque output of the motor.
-Super thin silicon steel sheets imported from Japan guarantees low (power) loss, less heat
generation but high magnetic permeability.
-Quality bearings imported from Japan guarantees smoother high-speed rotation and longer

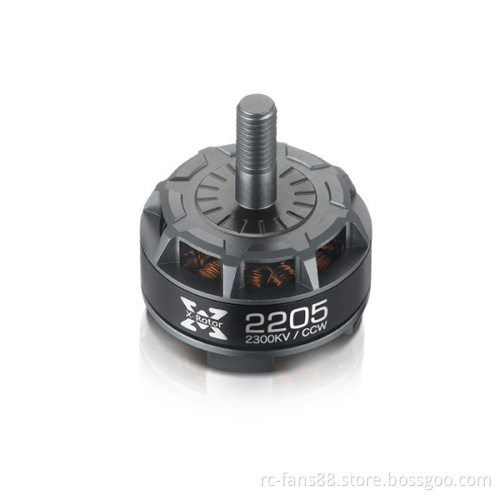

service life.   Product Details   Hobbywing XRotor 2205 2300KV Multicopter Outrunner Brushless Motor - CCW


Specifications Product Name   Xrotor 2205 2300KV Product Number   30405108 / 30405109 Type Specifications 2205-2300KV Relevant Motor KV 2300 No-Load Current(A/10V) 1.6A Motor Resistance 0.068Ω Max Continuous Power 420W Max Continuous Current 25A/15s Size & Weight Stator Diameter 22mm Stator Thickness 5mm No.of Stator Arms 12 No.of Stator Poles 14 Weight 28.4g Outside Diameter 28.1mm Shaft Diameter 5mm Body Length 17.1mm Overall Shaft Length 31.1mm Other Parameters Max Lipo Cell 4S Recommend Prop(inch) 5045 2-Blades | 5045 3-Blades ESC 30A/3-4S     Item Packing   1 x motor (CW)
