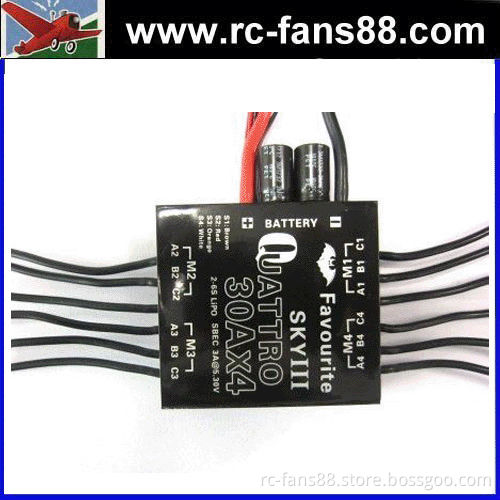

30A Four in one Brushless Multicopter ESC

Specifications 1.30A Four in one Brushless Multicopter ESC

Features -Four (4) speed controllers  in 1 board, only 1 pair of battery wire is needed.
-Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
-Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.
-User programmable.
-Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
-Compatible with Lipo battery and NiMH battery.
-Internal timing can be changed to be suitable for different brushless motors.
-Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
- Microprocessors use separate voltage regulator IC for better anti-jamming capability.   Product Details -ESC in the Quattro: 4 in 1
-Output: Continuous 30A, Burst 40A up to 10 seconds.
-Input Voltage: 2-6S Lipo or 5-12 cells NiMH.
-BEC: 3A / 5V Switch mode BEC.
-Refresh rate of the throttle signal: 50Hz to 432Hz. Item Packing -30A Four in one Brushless Multicopter ESC X 1
