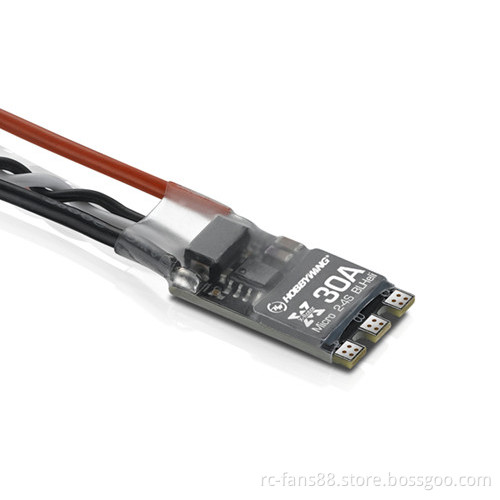

Hobbywing XRotor Micro BLHeli 30A 2-4S ESC Support OneShot125 w/ Wires for FPV Drones

Hobbywing XRotor Micro BLHeli 30A 2-4S ESC Support OneShot125 w/ Wires for FPV Drones   Features
-Hobbywing XRotor Micro BLHeli 30A 2-4S ESC Support OneShot125 w/ Wires for FPV Drones 1. Super Small & Light:
ESCs with incredible small size and light weight are specially designed for competition FPV drones
2. Quality components:
F396 48MHz MCU, 3-in-1 drive IC, High quality MOSFETs
3. BLHeli firmware ready:
Users can flash or upgrade the BLHeli firmware via the signal cable (on ESCs), and program 4 ESCs
simultaneously after connecting their flight controller to the BLHeliSuite software if the flight controller uses the CleanFlight firmware
4. Damped Light Mode & OneShot125 Mode Supported:
Damped light mode improves the motor retardation and allows
users to brake the FPV drones more efficiently. Active-freewheeling, technology improves driving efficiency, flight time and heat
dissipation. The ESCs support OneShot125 high speed throttle, signal and regular throttle signal (within 500Hz) modes
5. Twisted-Pair Signal Cable Reduces Interference:
Effectively reduces interference produced in signal, transmission and makes the flight much more stable and reliable   Product Details
Brand: XRotor
Product Name: XRotor micro 30A BLHeli
Cont./Peak Current: 30A/40A
LiPo Cells: 2-4S LiPo
BEC Output : NO
DEO: Not Supported
OneShot Mode: Supported
Timing: Supported
Light Color: Not Supported
Motor Rotation: Supported
Throttle Range Calibration: Supported
Stick Programming: Stick Programming/BLHeliSuite
Size(mm)L*W*H: 24x13.9x5.5mm
Weight: 6.8g
Applications: FPVs with 130-280mm Diagonal Wheelbase
