Matek Mini Power Hub Power Distribution Board With BEC 5V And 12V For FPV Multicopter

Matek Mini Power Hub Power Distribution Board With BEC 5V And 12V For FPV Multicopter   Features
Matek Mini Power Hub Power Distribution Board With BEC 5V And 12V For FPV Multicopter The Mini POWER HUB has been engineered to provide the highest possible performance and reliability in a 36*36mm & 4 layers PCB.
The HUB distributes power from a battery pack to 4 ESCs, as well as providing two synchronised & regulated DC outputs for powering cameras,
servos, video transmitters, LEDs, etc. Batteries may range from 3S to 6S LiPo, and the BEC input is TVS protected.
The HUB also features convenient solder bridge of various voltage for camera & video transmitter.       - 2oz copper & 4-layers PCB.
- ESC & Battery solder tabs in pairs.
- Solder Bridges of various voltage for Camera & VTX.
- DC/DC synchronous buck regulator, Efficiency is up to 95%.
- TVS(Transient Voltage Suppressor) protection for DC/DC chip.
- 5V & 12V Output LED indicators & Short circuit tolerant.   Product Details
- Band name: Matek
- Item name: Matek Power Distribution Board
- Dimensions: 36 x 36mm
- Weight: About 6g
- Mounting holes 30.5mm square spacing ESC outputs: - Continuous current: 20A per output
- Peak current (10 seconds/minute): 30A per output BEC 5V output: - Designed for RC Receivers, Flight controllers, OSD, and Servos.
- Voltage: 5.0 +/- 0.1VDC
- Continuous current: 3 Amps
- Short-circuit tolerant (10 seconds/minute)
- LED (indicates voltage is in regulation, within 10%) BEC 12V output: - The battery should be 4S~6S LiPo
- Standard output designed to power cameras and video transmitters,etc.
- Voltage: 12.0 +/- 0.2VDC
- Continuous current: 2 Amps (Max.3A 10s/minute)
- Short-circuit tolerant (10 seconds/minute)

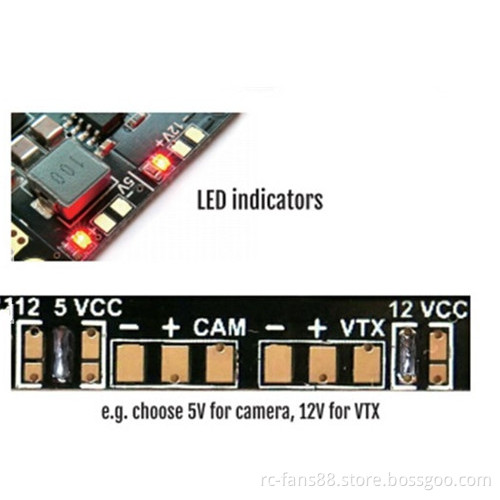

- LED (indicates voltage is in regulation, within 10%) CAM & VTX voltage bridge - 3S operation. choose “VCC” for 12V camera & 12V VTX, VCC=Battery Voltage.
- 4~6S operation, choose “12” for 12V camera & 12V VTX
- 3~6S operation, choose “5” for 5V camera
- Video pass through from the “CAM” pad to the “VTX” pad
General:
- Input voltage range (2S-6S operation): 7.2 - 26VDC
- Regulated 5V and 12V outputs
- LED power indicators ( 5V & 12V outputs )
- 4 ESC outputs   Item Packing
1 x Matek Mini Power Distribution Board
Detailed Images
