Distribution Board PDB with OSD BEC Output 5V 12V 3A LC Filter for Naze32 F3

Features   Distribution Board PDB with OSD BEC Output 5V 12V 3A LC Filter for  Naze32 F3   Product Details   Brand Name: MXK
Item Name: PDB
Size:36*36mm
Installation Hole Distance: 30.5mm(support for Naze32 CC3D,SP3, APMetc., the flight controller in 36*36 hole distance)

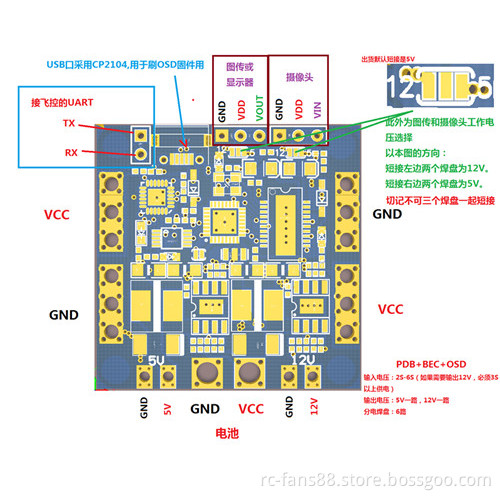

Function: PDB, Dual way BEC, LC Filter, OSD, Auto disconnect function between OSD and FC
Input Voltage: Support 2-6S,when the input voltage is 2-3S , can choose the 12V output via welding spot for battery voltage. The camare and VTX voltage can choose the 5V 12V via welding spot.
PCB with 2oz copper foil 4 layer board, ensure the large current.
Welding plate of battery and ESC arranged in pairs, more convenient for soldering.
Dual way BEC, DC-DC synchronous rectifier 5V voltage regulation(3A),come with LC filter.
With OSD function, support KVteam,MWOSD firmware etc., comes with FTDI
When OSD connect to PC, it will auto disconnect with flight controller,TX RX   Item Packing -Board PDB with OSD BEC X 1     The following is our work time (based on Beijing Time):
