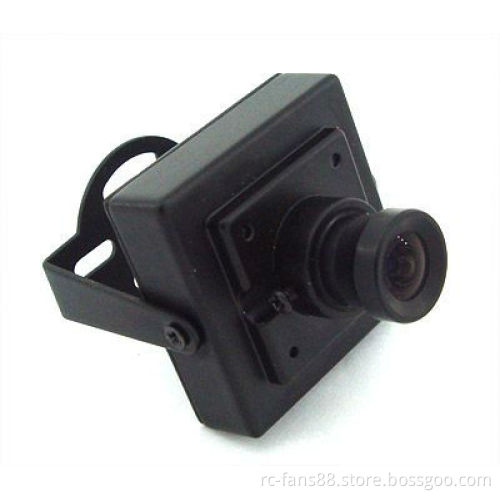

FPV 700-line Camera 1/3 Sony CCD - NTSC

Specifications 1.Imaging Device: 1/3" Sony 960H Exview HAD CCD II - NTSC

2.Horizontal Resolution:700TVL

3.Effective Pixels: NTSC: 976H*494V

Features - Using latest SONY Effio-E chips, supports OSD manual control.
Product Details -Imaging Device: 1/3" Sony 960H Exview HAD CCD II - NTSC
-Horizontal Resolution:700TVL
-Effective Pixels: NTSC: 976H×494V
-Scanner System: NTSC
-Minimum Illumination: 0.01LUX/F1.2
-D/N Selection: Color/B/W/Auto
-O.S.D Menu: Available
-Language: Chinese/English
-Noise Reduction: 2D-NR 0-15 level
-Gain Control: Auto/MANUAL
-White Balance: Auto/MANUAL
-Backlight Compensation: BLC/HLC/OFF selectable
-S/N Ratio: ≥48dB
-Electronic Shutter: NTSC:1/60-1/100.000s
-Sync. System: Internal
-Video Output: 1.0Vp-p/75Ω
-Lens: 3.6mm
-Power: DC12V±5%
-working current: 70mA
-Operation Tem: -20°C--60°C

Wiring guide:
Red- positive ("+"),
black - Negative ("-"),
Yellow - signal Item Packing -Camera X 1
-OSD button board X 1
-Wire set X 1
