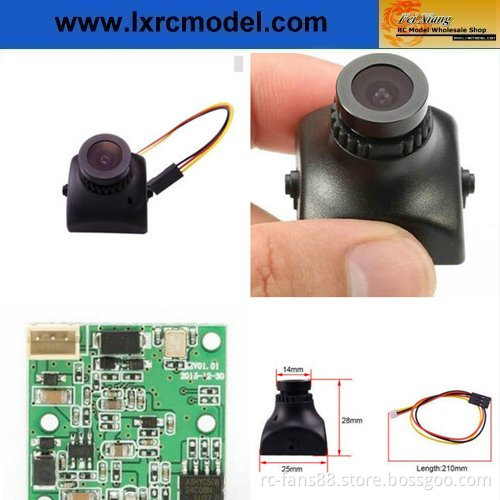

700TVL 2.8mm Lens 90 Degree 1/4 Cmos Wide Angle FPV Camera NTSC PAL f Quadcopter

700TVL 2.8mm Lens 90 Degree 1/4 Cmos Wide Angle FPV Camera NTSC PAL f Quadcopter

Get Latest Price

Delivery Time:: 5 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Product Details 1. Resolution: 700TVL 2. Format: PAL / NTSC 3. Lens: 90° Wide-Angle 2.8mm 4. Power Input: DC 12V 5. Output: 12V 6. Image sensor: 1/4" CMOS 7. System Standard: PAL / NTSC PAL ( H X V ): 512 x 582, NTSC ( H X V ): 542 x 492 8. Electronic Shutter: PAL=1/50-1/100,000 second, NTSC=1/60-1/120,000 second 9. Minimum Illumination: 0.1Lux (F: 1.2) 10. SNR: >48dB (AGC Close) 11. Gamma: 0.45 12. Automatic Gain: On / Off 13. Auto White Balance: On / Off 14. Lens Mount: C / CS 15. Video Output: 1 Vp-p, 75Ω 16. Operating Temperature Range: -10℃ - 50℃ (Maximum Humidity: 95%) 17. Suitable for: QAV 210 / 180 / 250 Fixed Wings & Multicopters 18. Dimensions: (0.98 x 0.98 x 0.98)" / (2.5 x 2.5 x 2.5)cm (L x W x H) 19. Weight: 0.34oz / 9.5g Item Packing -700TVL FPV Camera x 1
